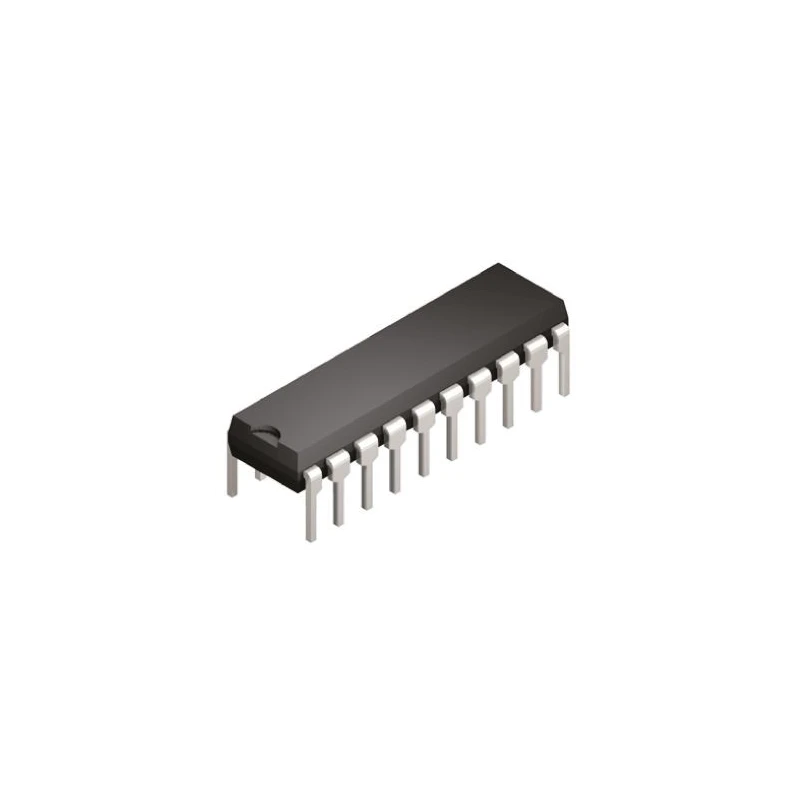

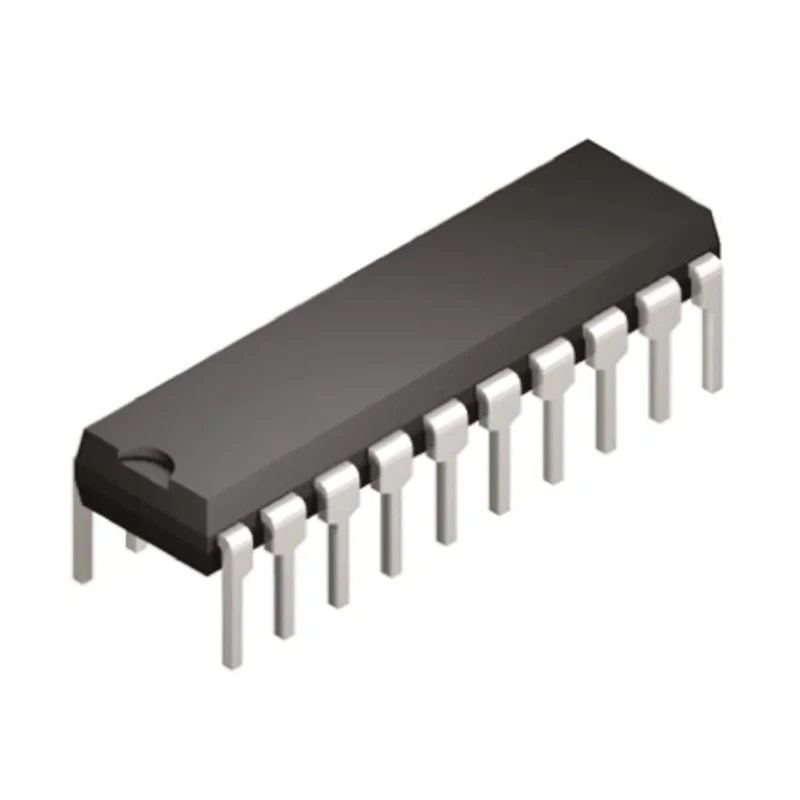

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin PDIP SN74ALS541N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 26.92mm |
| Model | SN74ALS541N |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Compatibility | Input TTL, Output TTL |
| Output type | 3 State |
| Series | SN74ALS541 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Polarity | Non-Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 8 |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | ALS |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -15mA |
| Maximum Propagation Delay Time @ CL | 14ns |
| Supply Current | 25mA |
| Maximum Low Level Output Current | 24mA |
Key Features
- Operates within a supply voltage range of 4.5V to 5.5V.
- Contains 8 buffered channels for signal integrity and line driving.
- Non-inverting output logic ensures signal fidelity.
- Through-hole mount type suitable for PCB integration.
- Maximum propagation delay time of 14ns ensures fast switching.
- Wide operating temperature range from 0°C to 70°C for reliable performance.
- Compact dimensions with a length of 26.92mm, width of 6.6mm, and height of 5.08mm.
- Compatible with TTL input and output logic levels.
Product Description
Texas Instruments SN74ALS541N 8-Channel Buffer & Line Driver IC provides advanced low-power Schottky bipolar logic in a 20-pin PDIP through-hole package. Designed for industrial and manufacturing applications, this device offers 8 buffered channels with 3-state, non-inverting outputs, ideal for signal buffering and line driving tasks.
The product operates across a voltage range of 4.5V to 5.5V, making it compatible with typical 5V logic systems. It features a maximum propagation delay of 14ns at the specified load, enabling swift signal transitions essential in high-speed circuits.
This buffer IC supports single-ended TTL input with output TTL compatibility, ensuring seamless integration in various electronic designs. The through-hole installation facilitates easy PCB mounting and repair.
Operating over a temperature range of 0°C to 70°C, the SN74ALS541N reliably maintains performance under standard industrial conditions. Its dimensions (length: 26.92mm, width: 6.6mm, height: 5.08mm) suit diverse assembly requirements, while the supply current of 25mA maintains power efficiency.
Operates at 4.5V to 5.5V supply voltage range. Includes 8 buffered, non-inverting channels with 3-state output. Through-hole 20-pin PDIP package supports easy PCB integration. Maximum propagation delay time of 14ns ensures fast logic switching.
Compatible with TTL input and TTL output logic levels. Operational temperature range is from 0°C to 70°C. Compact physical size complements diverse industrial applications. Low supply current of 25mA for energy-conscious designs.
Ideal for industrial, manufacturing, and electronic component assembly uses. Part of the 74ALS family of advanced low-power Schottky bipolar logic ICs.
This reliable Texas Instruments buffer and line driver IC enhances signal integrity in industrial electronic circuits. It is suitable for use in industrial automation, manufacturing equipment, and complex signal routing applications.
Explore more semiconductor and line interface IC products at EnvMart for comprehensive industrial electronics solutions.
Explore more products in our Line Interface ICs category.
