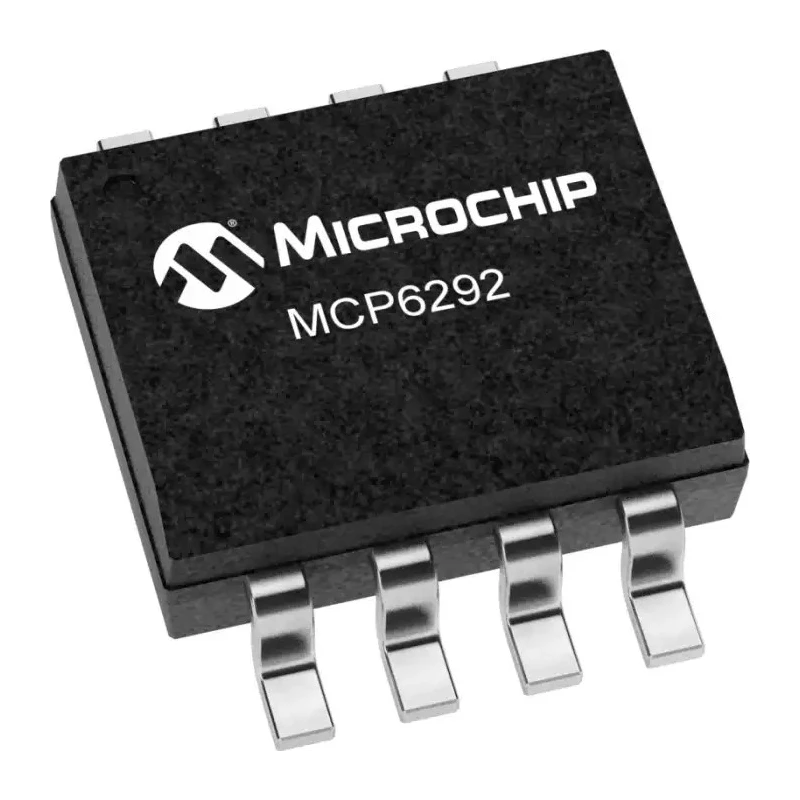

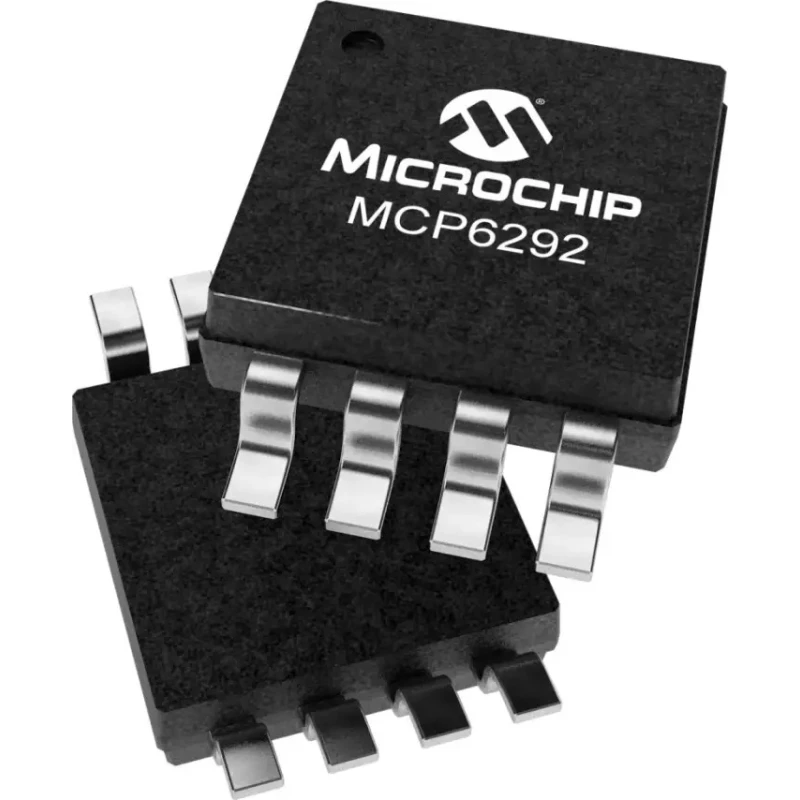

Microchip Operational Amplifier, 10 MHz Gain Bandwidth, 6V Supply, 8-Pin MSOP MCP6292T-E/MS

Free Delivery in India | Lowest Global Shipping Charges

Microchip Operational Amplifier, 10 MHz Gain Bandwidth, 6V Supply, 8-Pin MSOP MCP6292T-E/MS

Name: Microchip Operational Amplifier, 10 MHz Gain Bandwidth, 6V Supply, 8-Pin MSOP MCP6292T-E/MS
Brand: Microchip
SKU: 173774
Price: 1.55 USD
Availability: InStock



Category Operational Amplifier Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	0.85mm
Length	3mm
Model	MCP6292T-E/MS
Width	3mm
Mount Type	Surface
Series	MCP6292
Output Current	25mA
Maximum Operating Temperature	125°C
Package Type	MSOP
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Automotive Standard	AEC-Q100
Minimum Supply Voltage	6V
GBP - Gain Bandwidth Product	10MHz
Input Bias Current	1 pA
Vos - Input Offset Voltage	5 mV
Slew Rate	7V/μs

Key Features

High gain bandwidth product of 10 MHz enables wide frequency response.
Operates from a single power supply voltage of 6V for flexibility.
Consists of two channels with 8-pin count, surface mount MSOP package.
Input bias current and offset current as low as 1 pA for precision amplification.
Input offset voltage of 5 mV supports accurate signal processing.
Fast slew rate of 7 V/μs ensures rapid response to changing signals.
Operating temperature range from -40°C to 125°C suits harsh environments.
Output current capability up to 25 mA supports drive of various loads.

Product Description

Microchip MCP6292T-E/MS is a high-performance operational amplifier designed for precision electronic amplification tasks. Featuring a gain bandwidth product of 10 MHz, this device supports fast and accurate signal processing in a compact surface mount MSOP 8-pin package.

Operating from a single supply voltage of 6V, the amplifier draws a quiescent current of approximately 1 mA, making it energy efficient for embedded and industrial applications. The device provides rail-to-rail input and output capability for maximizing signal swing within the supply range.

The amplifier incorporates low input bias current and offset current of 1 pA, and an input offset voltage of just 5 mV, ensuring minimal signal distortion and high measurement accuracy. With a slew rate of 7 V/μs, it responds swiftly to rapid input changes, suited for dynamic signal environments.

Engineered to function reliably in extended temperature ranges from -40°C to +125°C, this amplifier is suitable for automotive, industrial, and other rigorous environments. Its maximum output current of 25 mA allows it to drive a variety of capacitive and resistive loads.

The MCP6292T-E/MS conforms to the RoHS directive and meets automotive standard AEC-Q100, assuring compliance with industry standards for quality and environmental safety. High gain bandwidth product of 10 MHz enables wide frequency response.

Operates with a single 6V power supply supporting energy efficiency. Dual channels in a compact 8-pin MSOP surface mount package. Extremely low input bias and input offset currents for precision. Low input offset voltage minimizes signal distortion.

Fast slew rate ensures quick response to signal changes. Wide operating temperature range from -40°C to 125°C for harsh environments. Robust output current capability up to 25 mA for diverse loads. Complies with RoHS and Automotive AEC-Q100 standards.

This Operational Amplifier is ideal for use in industrial automation, instrumentation, automotive electronics, consumer devices, and other electronic circuits that require precision amplification within a compact form factor.

Explore the extensive range of semiconductor and amplifier solutions at EnvMart for your professional and industrial electronics needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The MCP6292T-E/MS has a gain bandwidth product of 10 MHz, enabling wide frequency response for various applications.

This model operates from a single supply voltage of 6V, providing flexibility for different circuit designs.

The dimensions of this operational amplifier are 3mm in length, 3mm in width, and 0.85mm in height.

It has an output current capability of up to 25 mA, allowing it to drive various capacitive and resistive loads.

The input offset voltage for this operational amplifier is 5 mV, which supports accurate signal processing.

The MCP6292T-E/MS operates within a temperature range of -40°C to 125°C, making it suitable for harsh environments.

This operational amplifier features a slew rate of 7 V/μs, ensuring rapid response to changing signals.

This model consists of two channels, allowing for dual signal processing in a compact design.

It is packaged in an 8-pin MSOP surface mount configuration, which is suitable for space-constrained applications.

The input bias current for the MCP6292T-E/MS is as low as 1 pA, contributing to its precision amplification capabilities.

This operational amplifier conforms to the RoHS directive and meets the automotive standard AEC-Q100, ensuring compliance with industry standards.

This operational amplifier is ideal for use in industrial automation, instrumentation, automotive electronics, and consumer devices requiring precision amplification.
