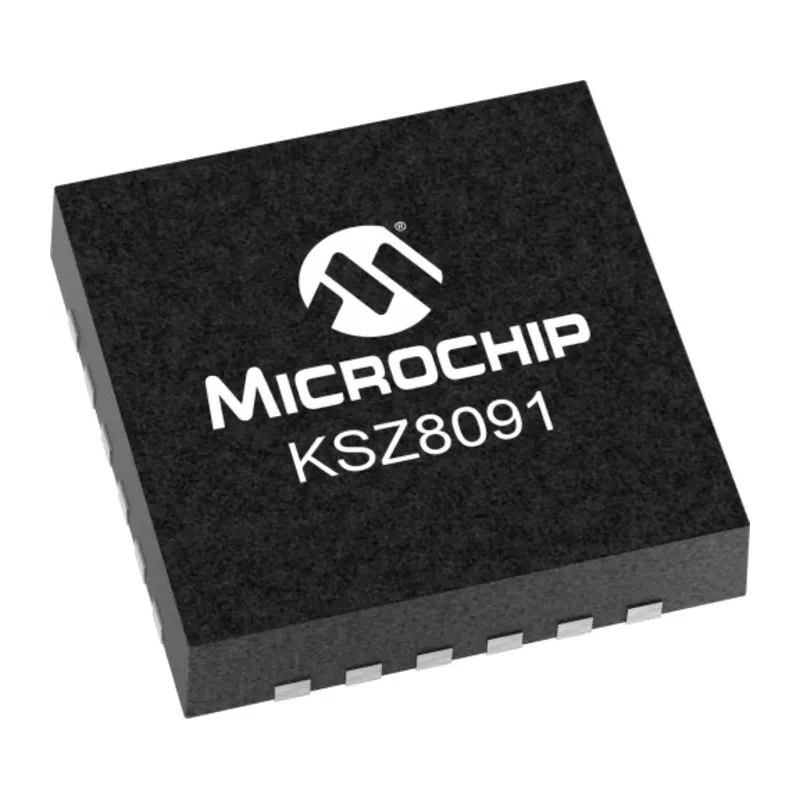

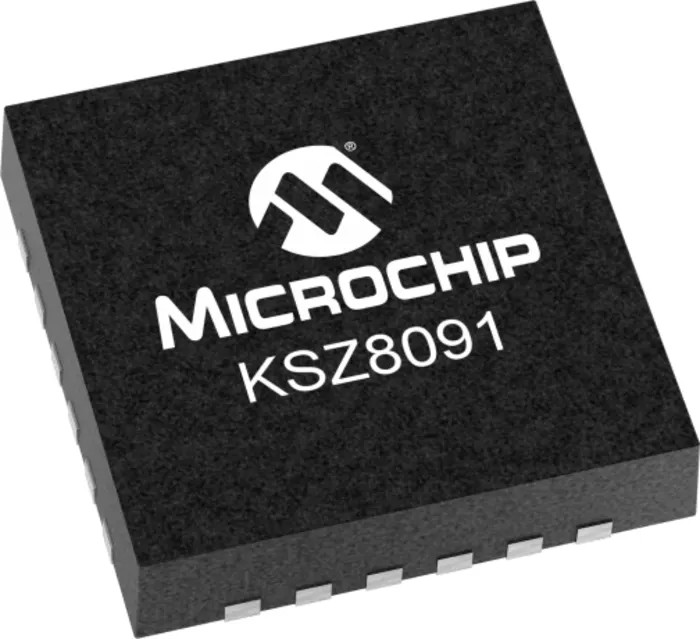

Microchip 24-Pin QFN Ethernet Transceiver 3.3 V 100 Mbps KSZ8091RNAIA-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 4mm |
| Model | KSZ8091RNAIA-TR |
| Width | 4mm |
| Package Type | QFN |
| Sub Type | Transceiver |
| Interfaces | Ethernet transceiver |
| Pin Count | 24 |
| Maximum Supply Voltage | 3.3V |
| Supply Current | 47mA |
| Maximum Data Rate | 100Mbps |
| Standard Supported | IEEE 802.3 |
Key Features
- Single-supply 10Base-T/100Base-TX Ethernet PHY transceiver compliant with IEEE 802.3.
- On-chip termination resistors and a built-in 1.2 V low-noise core regulator.
- Wake-on-LAN support via magic packet, link status change, or custom packet detection.
- Power-down and power-saving modes for efficient energy consumption.
- Compact 24-pin QFN package measuring 4 mm x 4 mm x 1 mm.
- Supply current approximately 47 mA for low power operation.
- Flexible digital I/O interface supporting 1.8 V, 2.5 V, and 3.3 V logic levels.
- Reduces board cost and simplifies layout with high integration.
Product Description
Microchip KSZ8091RNAIA-TR is a highly integrated single-supply Ethernet physical-layer transceiver designed for 10Base-T and 100Base-TX applications. It operates with a maximum supply voltage of 3.3 V and supports data rates up to 100 Mbps, delivering reliable transmission and reception of data over standard CAT-5 unshielded twisted pair cabling.
This transceiver implements the IEEE 802.3 standard, making it suitable for a wide range of Ethernet interface designs in industrial, manufacturing, and commercial network equipment. The device is packaged in a compact 24-pin QFN form factor measuring 4 mm by 4 mm with a height of 1 mm, facilitating high-density PCB integration.
Its integrated features include on-chip termination resistors for differential pairs, a built-in 1.2 V low-noise regulator to supply the core, and flexible digital interfaces compatible with 1.8 V, 2.5 V, and 3.3 V logic levels. Wake-on-LAN functionality supports multiple detection methods to initiate device wake-up with minimal power consumption.
Power-saving and power-down modes are incorporated to reduce energy usage when the transceiver is idle, contributing to greener designs. The supply current is approximately 47 mA during operation, making it suitable for energy-conscious applications.
The KSZ8091RNAIA-TR is ideal for use in electronic components, networking equipment, embedded Ethernet interfaces, industrial automation, and communication modules requiring robust physical layer connectivity. Its high integration reduces board costs and simplifies layout complexity.
Single-supply Ethernet PHY compliant with IEEE 802.3 for 10Base-T/100Base-TX. On-chip termination resistors and internal 1.2 V regulator for enhanced integration. Wake-on-LAN functionality with flexible detection schemes.
Low power consumption with power-down and power-saving modes. Compact 24-pin QFN package with small footprint dimensions. Flexible digital I/O interface supporting multiple voltage levels. Typical supply current of 47 mA.
Simplifies board design while reducing overall system costs. Browse the Electronics & Electricals category on EnvMart for more advanced semiconductor solutions from top brands like Microchip for your industrial and commercial applications.
Explore more products in our Ethernet Transceiver category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KSZ8091RNAIA-TR supports a maximum data rate of 100 Mbps.
This model operates with a maximum supply voltage of 3.3 V.
The transceiver is packaged in a compact 24-pin QFN format with dimensions of 4 mm x 4 mm and a height of 1 mm.
It is compliant with the IEEE 802.3 standard, suitable for 10Base-T and 100Base-TX applications.
The typical supply current during operation is approximately 47 mA.
It supports flexible digital I/O interfaces compatible with 1.8 V, 2.5 V, and 3.3 V logic levels.
Yes, it includes power-down and power-saving modes to reduce energy consumption when idle.
The KSZ8091RNAIA-TR is manufactured in India.
This transceiver is ideal for use in networking equipment, embedded Ethernet interfaces, and industrial automation.
It comes in a QFN package type, which is compact and suitable for high-density PCB integration.
It features on-chip termination resistors and a built-in 1.2 V low-noise core regulator for enhanced integration.
Wake-on-LAN is supported via magic packet detection, link status change, or custom packet detection to initiate wake-up.
