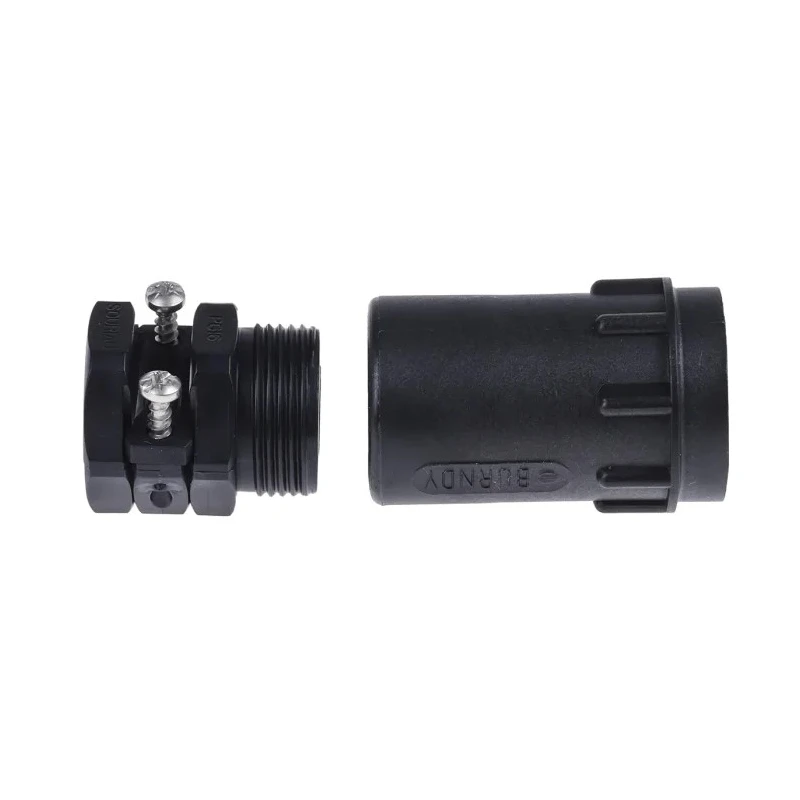

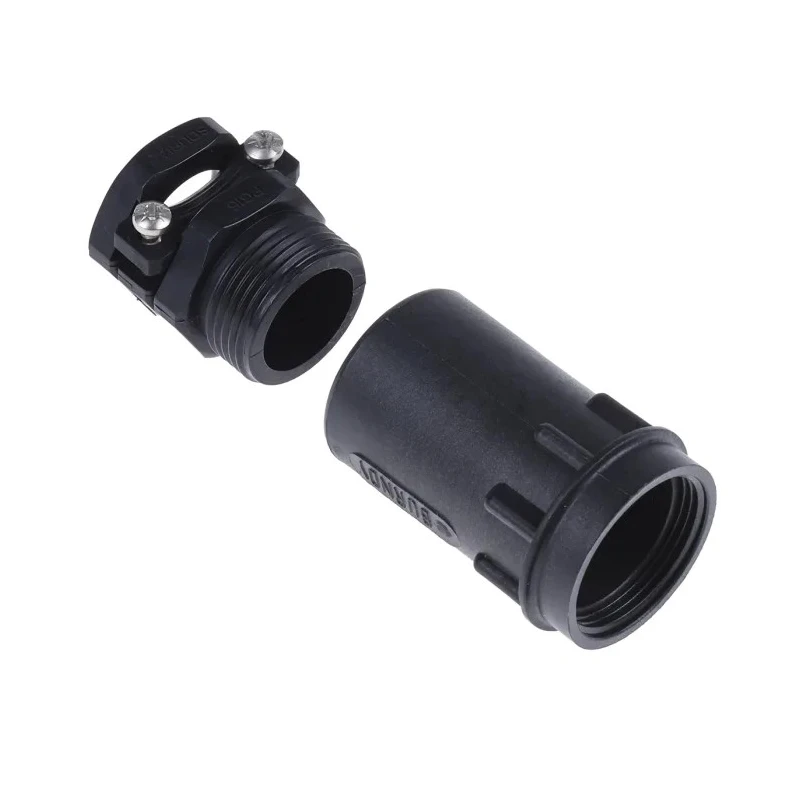

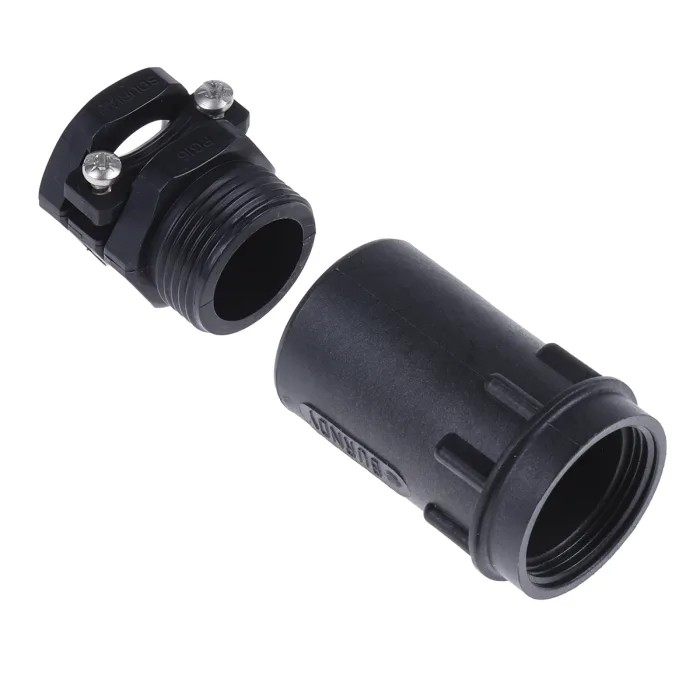

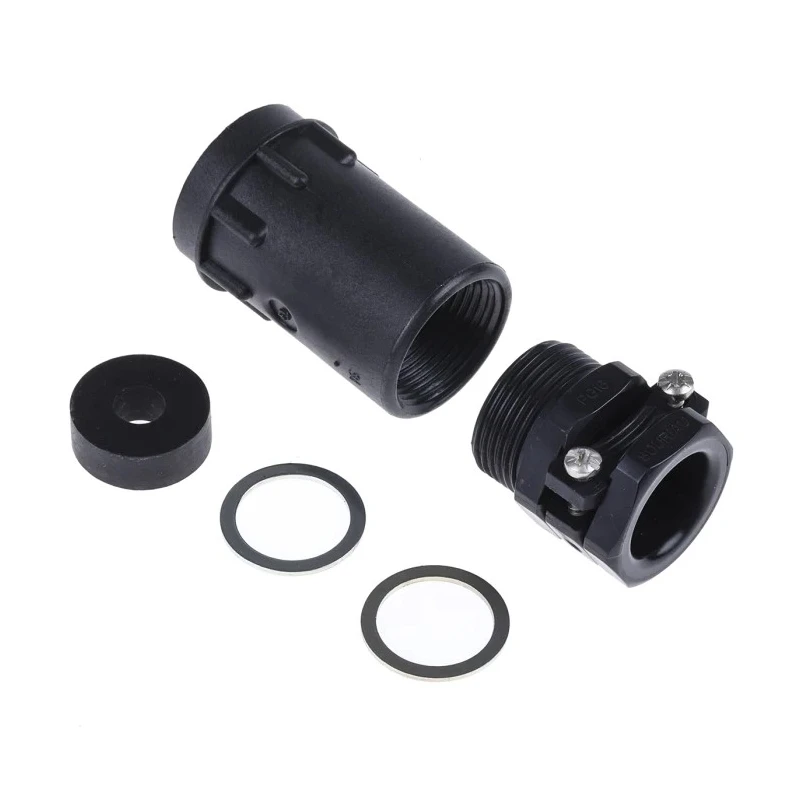

Souriau Sunbank by Eaton Size 14 Straight Circular Connector Backshell Strain Relief, 104-Way UTG16PG

Souriau Sunbank by Eaton UTG16PG is a Size 14 Straight Circular Connector Backshell designed for demanding industrial and commercial applications. It provides 104 contact points with a female gender configuration, secured within a durable black plastic housing. The backshell measures 68mm in length and is engineered for strain relief, incorporating a neoprene sealing gland insert that offers water protection meeting IP65 standards.

This product is part of the Sealok product line, which is designed to be intermateable, interchangeable, and technically comparable with MIL-C-26482 series 1 connectors. It offers a more economical option than traditional metal connectors while maintaining high durability and security via a metal bayonet coupling ring and integrated interfacial seal.

With cable opening ranges between 8mm and 20.50mm, this backshell accommodates a wide range of cable sizes and is threaded with PG16. The connector outside diameter is 30.20mm, making it versatile for various setups. Operating temperature ranges typically from -55°C to 125°C, supporting harsh environments.

The UTG16PG backshell ensures excellent strain relief and water protection, vital for commercial and military applications where reliable electrical connections are critical. Its robust design aids in reducing cable stress, preventing damage, and extending cable life.

This circular connector backshell is constructed from durable plastic housing, ensuring long-term use. The backshell length is 68mm, suitable for varied industrial applications. Designed in a straight orientation with female gender specification for compatibility.

Features a strain relief mechanism to protect cable integrity under stress. Offers protection with a neoprene sealing gland insert for water-resistant applications. Meets IP65 ingress protection, ensuring resistance against dust and water jets.

Cable opening diameter accommodates sizes from 8mm to 20.50mm for flexible installation. Suitable for commercial and military-grade applications requiring robust and secure connections. Thread size is PG16 with an outside connector diameter of 30.20mm.

The Sealok range provides cost-effective alternatives with metal bayonet coupling ring for security and durability.

For users in industrial manufacturing, electronics assembly, military equipment, HVAC, and water treatment industries, this connector backshell is a trustworthy component ensuring secure, sealed, and reliable cable connections. Explore more from Souriau Sunbank by Eaton and related Circular Connector Backshell products on EnvMart for optimal solutions.
