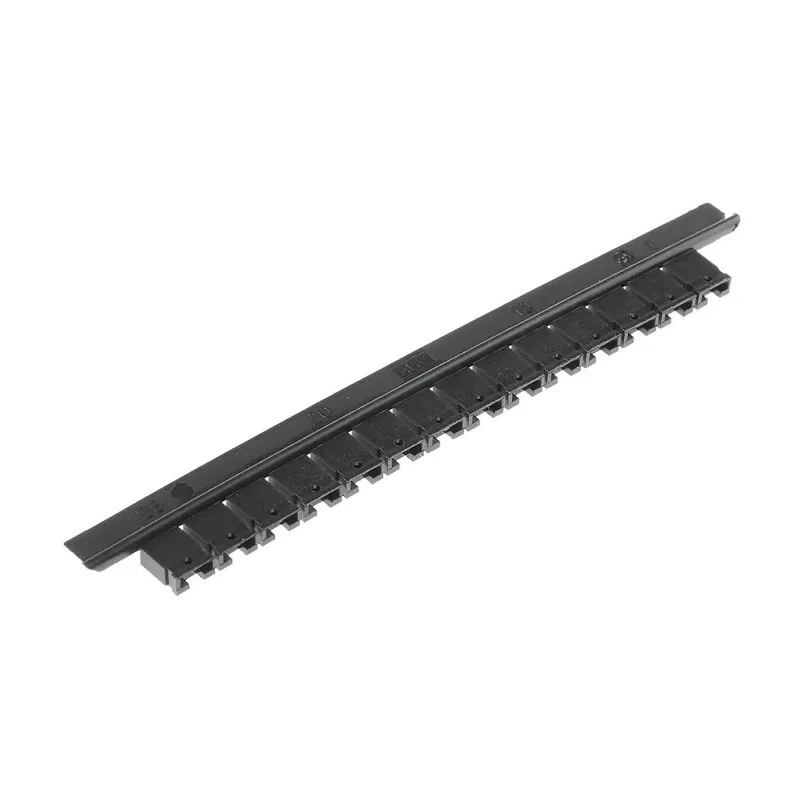

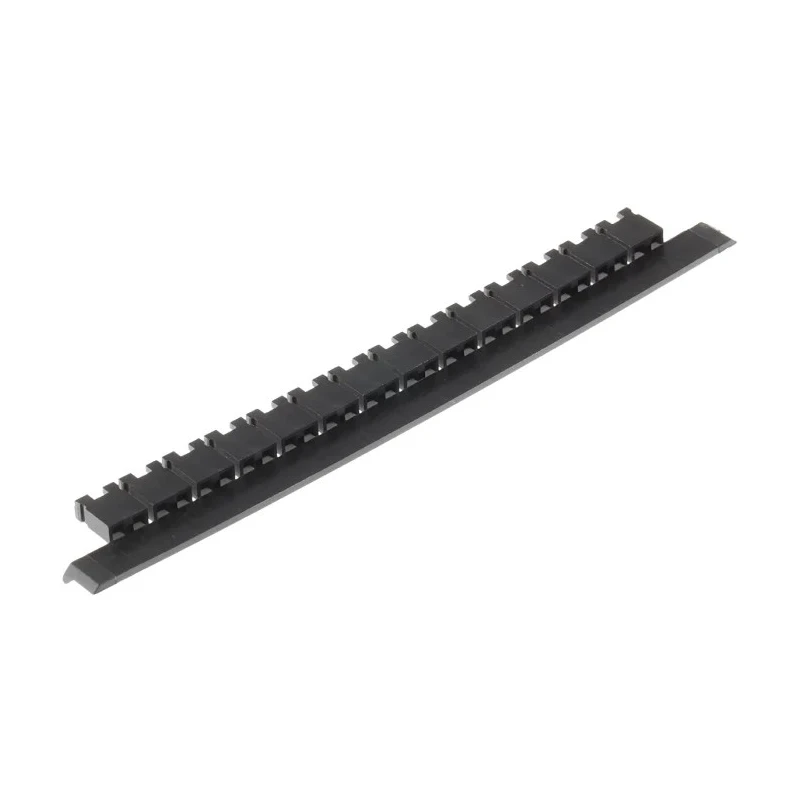

TE Connectivity AMPMODU MOD IV Shunt Straight Female Black Open Top 2 Way 1 Row 2.54 mm Pitch 142270-3

TE Connectivity 142270-3 AMPMODU MOD IV Shunt Straight Female Black Open Top 2 Way 1 Row 2.54 mm Pitch connector is engineered for linking two adjacent header pins on PCBs with standard 2.54 mm pitch spacing. It features a robust polyester housing designed for durability in industrial and electronic applications.

The female connector incorporates beryllium copper alloy contacts plated with tin to guarantee low resistance electrical connections and corrosion resistance. Rated for 3 amperes continuous current and 250 volts, it meets demanding electrical specifications for varied use cases including industrial automation, laboratory equipment, and power distribution assemblies.

This connector includes 2 contacts arranged in a single row to mate with 0.64 mm round or square posts. Its open top design allows easy inspection and installation, and the straight orientation supports versatile PCB layout configurations.

Compact size dimensions are length 5.08 mm, width 2.54 mm, and depth 6.3 mm, aligning with the AMPMODU MOD IV series standards to facilitate modular interconnect solutions. Its maximum contact resistance of 15 milliohms ensures signal quality and minimal power loss.

The housing material is flame retardant polyester (UL94V0 rating), enhancing safety in electronic devices and assemblies. This shunt connector is suitable across various industry sectors, including electronics manufacturing, communications, and aerospace systems requiring reliable and compact jumper connections.

Connector designed with 2 contacts and 1 row for precise PCB connections. Supports up to 3A current and 250V voltage rating for industrial use. Durable polyester housing with black color and open top design. Tin-plated beryllium copper alloy contacts ensure low contact resistance.

Compact dimensions include 5.08 mm length, 2.54 mm width, and 6.3 mm depth. Connector orientation is straight with a 2.54 mm pitch suitable for AMPMODU MOD IV series. Maximum contact resistance is 15 milliohms to maintain signal integrity.

Flammability rating UL94V0 ensures safety in electronic assemblies.

This product is ideal for applications requiring secure PCB jumper links and adaptability in dense electronic assemblies. EnvMart users can explore more AMPMODU connectors and jumpers from TE Connectivity under the electronics components category.
