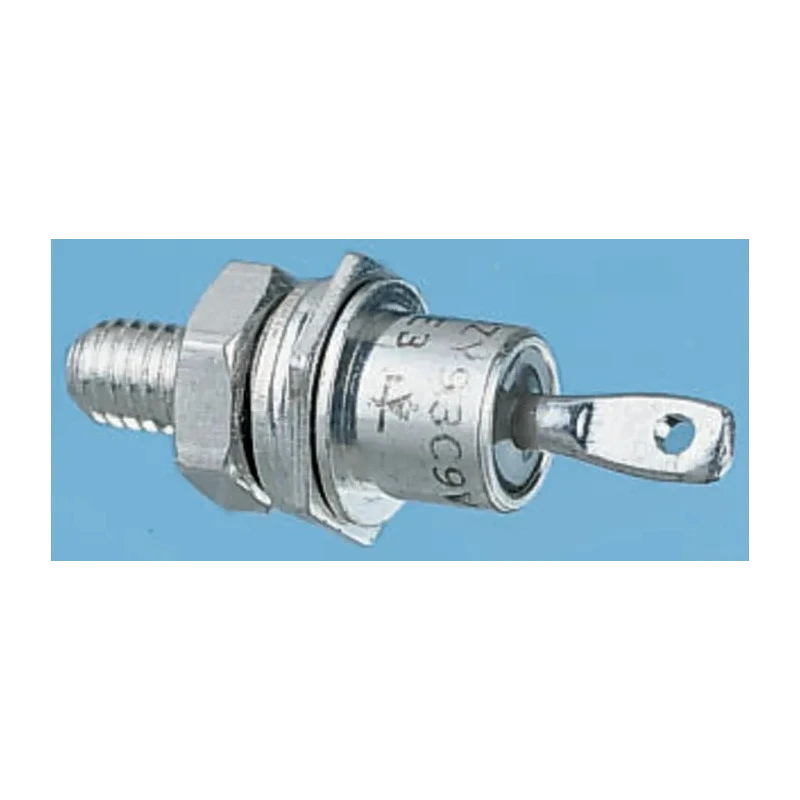

Vishay 1200 V 16 A Standard Recovery Diode 2-Pin DO-203AA VS-16FR120

Vishay VS-16FR120 is a high-quality standard recovery Rectifier Diode designed for power electronic circuits requiring robust and efficient rectification. It operates reliably at a maximum reverse repetitive voltage of 1200 V and continuous forward current of 16 A, making it suitable for diverse industrial and commercial semiconductor applications.

This diode comes in a rugged 2-pin DO-203AA package type with a stud anode configuration to facilitate secure mounting with screws. Designed to withstand harsh environmental conditions, it supports a wide operating temperature range from -65°C up to 175°C, providing high thermal stability for demanding electronic systems.

The maximum forward voltage drop is 1.23 V, optimizing performance by reducing power losses in conversion processes. The diode's peak non-repetitive surge current rating of 370 A ensures durability under transient overloads, an essential feature for power electronic devices.

Dimensions include a compact form factor with length 12.69 mm, diameter 11 mm, width 11 mm, and height 31.8 mm, facilitating easy integration into circuit assemblies where space efficiency is critical.

Typical use cases include industrial power supplies, rectification stages in electronic manufacturing, and other applications requiring high-efficiency, durable standard recovery diodes.

This diode supports a maximum continuous forward current of 16 amperes. Peak reverse repetitive voltage rating is 1200 volts for robust performance. Compact, screw-mountable DO-203AA package with stud anode design. Operating temperature range enables use in extreme environments.

Maximum forward voltage of 1.23 volts improves efficiency in circuits. High surge current rating protects against transient overloads. Two-pin configuration for straightforward mounting and connectivity. Explore the Vishay range of semiconductor components and diodes at EnvMart for reliable industrial and electronic component sourcing.
