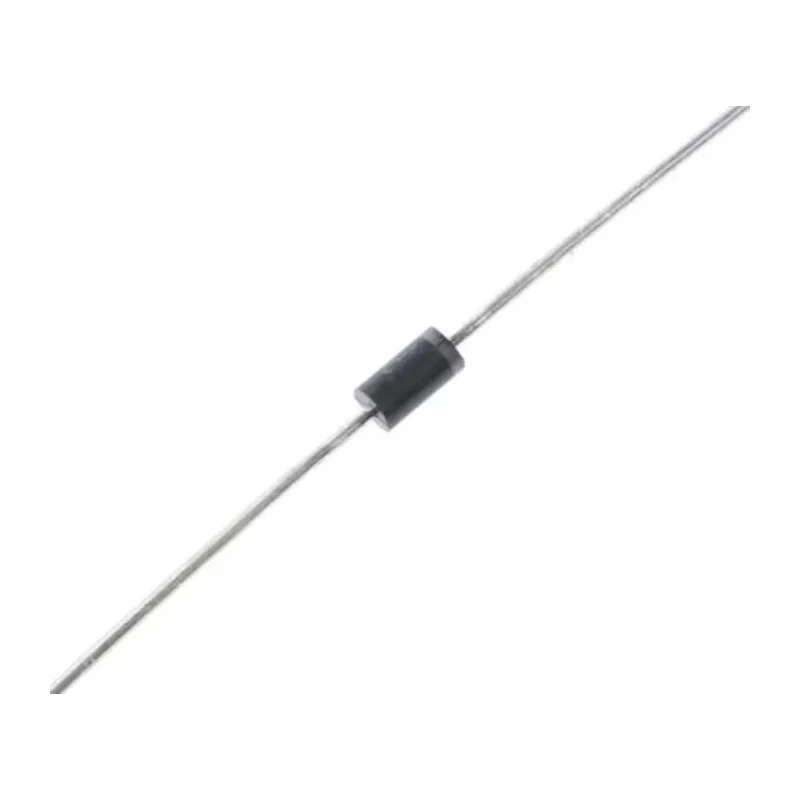

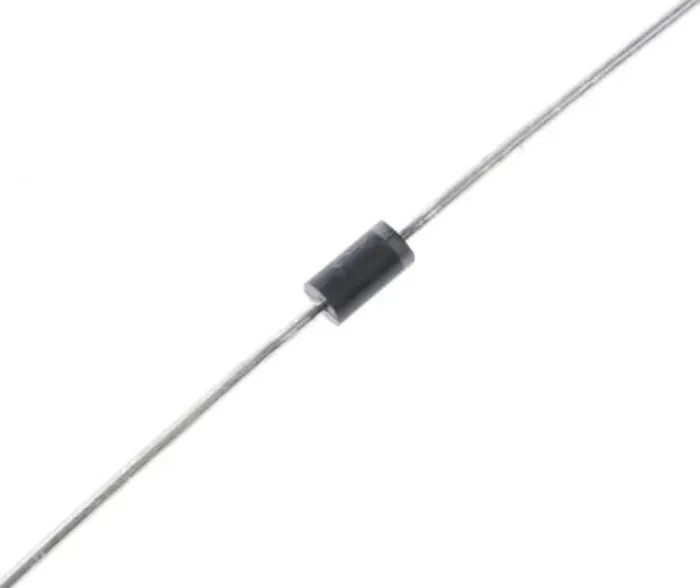

Vishay General Purpose 400 V 1 A Diode 2-Pin DO-204AL 1N4004-E3/54

Free Delivery in India | Lowest Global Shipping Charges

Vishay General Purpose 400 V 1 A Diode 2-Pin DO-204AL 1N4004-E3/54

Name: Vishay General Purpose 400 V 1 A Diode 2-Pin DO-204AL 1N4004-E3/54
Brand: Vishay
SKU: 200690
Price: 0.22 USD
Availability: InStock



Category Rectifier Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	2.7mm
Brand	Vishay
Height	5.2mm
Length	5.2mm
Model	1N4004-E3/54
Width	2.7mm
Mount Type	Through Hole
Series	1N4004
Maximum Operating Temperature	150°C
Package Type	DO-204AL
Minimum Operating Temperature	-50°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	400V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	45A
Maximum Forward Voltage Vf	1.1V
Vishay 400V 1A, Diode, 2-Pin DO-204AL 1N4004-E3/73Brand	Vishay

Key Features

Features a low forward voltage drop of 1.1 V for efficient operation.
Supports peak non-repetitive forward surge current up to 45 A.
Designed for through-hole mounting with a robust DO-204AL package.
Operates reliably between -50°C to 150°C junction temperature range.
Widely used in rectification for power supplies, inverters, and converters.
Single diode configuration with 2 pins for easy integration.
Low leakage current ensures minimal power loss during operation.
Leads are tin-plated with 25.4 mm length for thru-hole soldering.

Product Description

Vishay 1N4004-E3/54 is a general purpose Rectifier Diode designed for a variety of industrial and electronics applications. Encapsulated in a robust DO-204AL (DO-41) plastic package with tin-plated 25.4 mm leads, this diode offers reliable performance for through-hole mounting.

This diode is rated for a maximum continuous forward current of 1 A and a peak repetitive reverse voltage (VRRM) of 400 V. It has a low forward voltage drop of 1.1 V that improves energy efficiency and reduces heat dissipation during operation.

The diode can withstand peak non-repetitive forward surge currents of up to 45 A, making it suitable for transient surge conditions. It functions reliably over a wide junction temperature range from -50°C to 150°C, suitable for demanding industrial environments.

Typical applications include rectification in power supplies, inverters, freewheeling diodes, and converters used in industrial controls, consumer electronics, and power management circuits.

Low forward voltage drop optimizes power efficiency. High surge current tolerance enhances durability. Through-hole DO-204AL package ensures mechanical robustness. Wide operating temperature range supports varied environments.

Single diode, 2-pin configuration simplifies circuit design. Low leakage current minimizes power waste. Tin-plated leads facilitate reliable soldering connections. Ideal for general purpose rectification applications.

This diode is a standard choice in semiconductor portfolios for industrial and electronic manufacturing sectors. It complies with common semiconductor standards but does not carry automotive certification.
