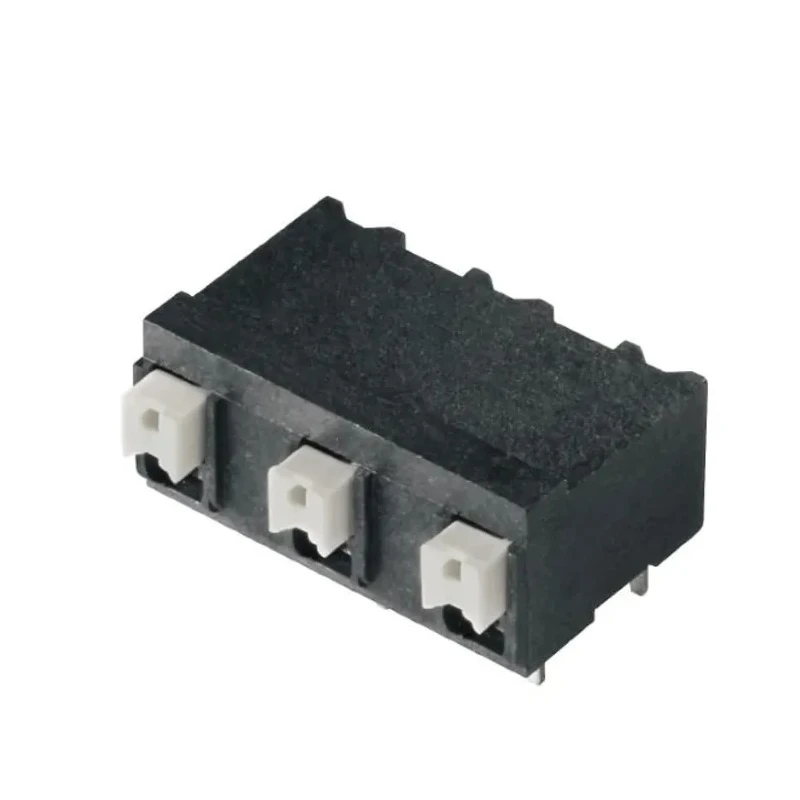

Weidmüller LSF Series PCB Terminal Block, 3-Contact, 7.5 mm Pitch, 1 Row, 17.5A Current, 800V Voltage, Fibreglass 1824890000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 800V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | Right Angle |
| Current | 17.5A |
| Depth | 14.75mm |
| Width | 19.2mm |
| Housing Material | Fibreglass Liquid Crystal Polymer |
| Series | LSF |
| Number of Rows | 1 |
| Pitch | 7.5mm |
| Standards/Approvals | CSA, IEC, RoHS, UL |
| Number of Contacts | 3 |
| Minimum Wire Size mm² | 0.13mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Push-in |
Key Features
- The terminal block supports a current rating of 17.5A for robust performance.
- Features a push-in wire connection method for quick and tool-free installation.
- Constructed with fibreglass liquid crystal polymer housing for durability and insulation.
- Designed as a single row, right angle configuration with a compact 19.2mm width.
- Compatible with wire sizes ranging from 0.13mm² to 1.5mm² (28 AWG to 14 AWG).
- Operates at a voltage rating of 800V, suitable for industrial electronics applications.
- Meets international standards including CSA, IEC, RoHS, and UL for safety and compliance.
- Compatible with automated SMT assembly processes including reflow soldering.
Product Description
Weidmüller 1824890000 is a high-quality LSF Series PCB Terminal Block designed for efficient and secure electrical connections on printed circuit boards. This model features 3 contact points spaced at 7.5 mm pitch in a single row layout, optimized for fully automatic assembly and reflow soldering (SMT) processes.
The housing is made from fibreglass liquid crystal polymer, providing excellent electrical insulation and mechanical stability. Connection is achieved through a push-in system, enabling easy insertion and removal of solid wires or ferrules without tools, enhancing assembly efficiency and reliability.
Rated for a current of 17.5A and a voltage of 800V, the terminal block is suitable for various industrial, electronics manufacturing, and power distribution applications. Its compact dimensions include a width of 19.2 mm and a depth of 14.75 mm, with right angle orientation suitable for PCB integration in constrained spaces.
The design complies with multiple international standards such as CSA, IEC, RoHS, and UL, ensuring safety and environmental compliance. The product supports wire sizes from 0.13 mm² to 1.5 mm² (28 to 14 AWG) offering flexibility for different conductor types.
The push-in connection enables quick and reliable wiring without the need for additional tools. The terminal block is compatible with automated SMT assembly processes including reflow and vapor phase soldering. Clearly marked clamping points facilitate easy identification during installation.
The product's robust housing material ensures long-term durability in demanding industrial environments. This component is ideal for electronics, power, and control panel manufacturing industries. Explore a wide range of Weidmüller PCB Terminal Blocks and accessories in the Electronics Components category at EnvMart for all your industrial connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 17.5A, making it suitable for various industrial applications.
It operates at a voltage rating of 800V, which is appropriate for industrial electronics applications.
The terminal block features a contact pitch of 7.5 mm, allowing for efficient spacing on printed circuit boards.
It is compatible with wire sizes ranging from 0.13 mm² to 1.5 mm² (28 AWG to 14 AWG), providing flexibility for different conductor types.
The housing is constructed from fibreglass liquid crystal polymer, which provides excellent electrical insulation and mechanical stability.
This model features 3 contact points, designed for efficient electrical connections.
It is designed in a right angle orientation, suitable for PCB integration in constrained spaces.
Yes, it is compatible with automated SMT assembly processes, including reflow soldering, enhancing assembly efficiency.
It complies with multiple international standards including CSA, IEC, RoHS, and UL for safety and environmental compliance.
The compact dimensions include a width of 19.2 mm and a depth of 14.75 mm, making it suitable for space-constrained applications.
It utilizes a push-in connection method, allowing for quick and tool-free installation of wires.
The country of origin for this model is India, indicating its manufacturing location.
