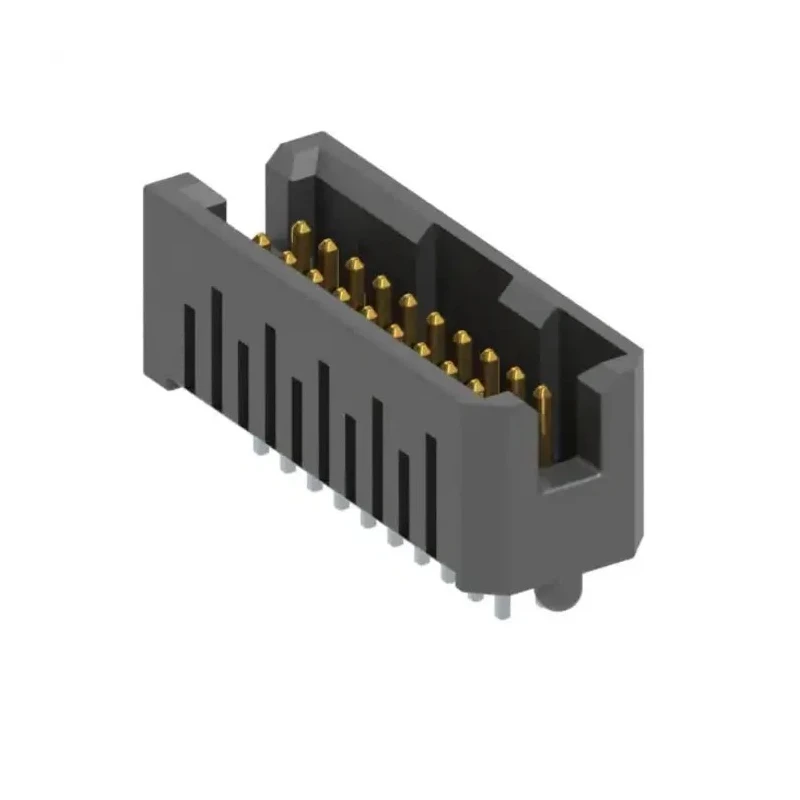

Samtec Vertical Through Hole PCB Header 20 Contact 0.5mm Pitch 2 Row Shrouded TFML-110-02-S-D-A-K-TR

Samtec TFML-110-02-S-D-A-K-TR Vertical Through Hole PCB Header features a dual-row design with 20 male contacts at 0.5 mm pitch, ideal for compact board-to-board connections in industrial and electronic applications.

The housing is made from durable liquid crystal polymer, ensuring mechanical stability under demanding conditions. Contacts are crafted from phosphor bronze and selectively plated with 0.000762 mm gold on the contact areas and matte tin on the tails to maximize conductivity and resistance to corrosion.

This header supports a current rating of 3.2 amperes and operates safely up to 250 volts, suitable for various electronic circuit board interconnections. The vertical orientation and through-hole mount type facilitate secure mechanical and electrical connections on PCB assemblies.

Engineered for a wide operating temperature range from -55°C to 125°C, this connector performs reliably in industrial, manufacturing, and commercial electronic equipment, including computing hardware, control systems, and instrumentation.

The 1.27 mm row pitch allows close placement of contacts without compromising signal integrity. The shrouded design provides alignment assistance and protection against accidental damage during assembly or operation.

Packaged on tape and reel, this product is optimized for automated pick and place assembly lines, enhancing production efficiency and consistency. Constructed with liquid crystal polymer housing for durability. Male phosphor bronze contacts plated with selective gold ensure excellent conductivity.

Supports a current rating of 3.2 A and voltage of 250 V. Designed for vertical orientation with through-hole mount type. Operates reliably between -55°C and 125°C temperature range. Offers 1.27 mm row pitch and matte tin tail plating for secure solder termination.

Packaged on tape and reel for automated assembly processes. Shrouded design helps prevent misalignment and damage.

This PCB header is extensively used in high-density electronics applications including industrial controls, networking equipment, and consumer electronics, contributing to reliable and compact circuit board designs.
