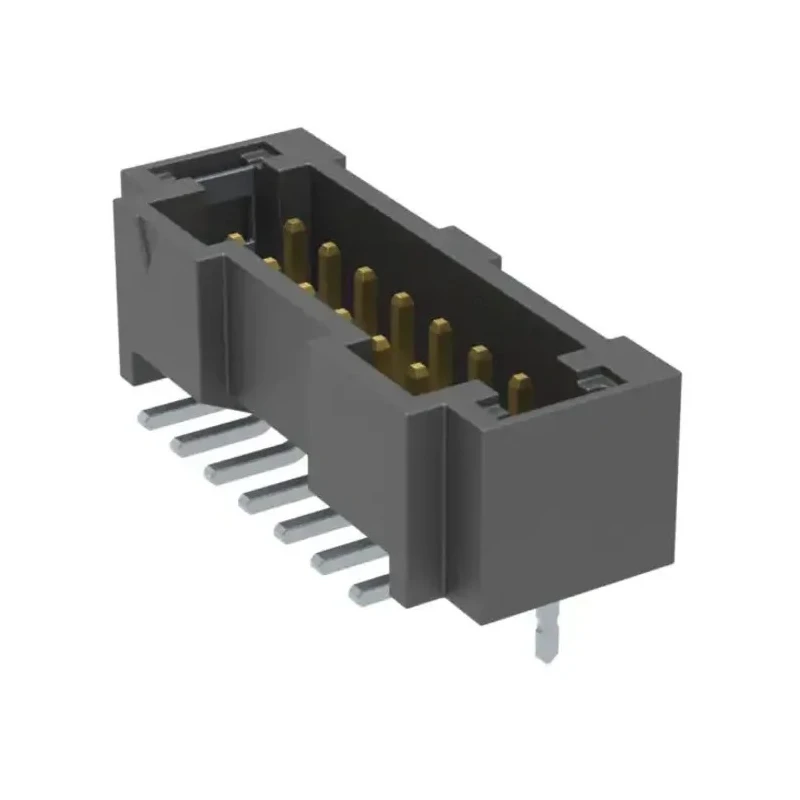

Samtec T2M Series Vertical Surface PCB Header 14 Contacts 2 mm Pitch 2 Row Shrouded T2M-107-01-L-D-SM-WT-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec T2M Series Vertical Surface PCB Header 14 Contacts 2 mm Pitch 2 Row Shrouded T2M-107-01-L-D-SM-WT-K-TR

Name: Samtec T2M Series Vertical Surface PCB Header 14 Contacts 2 mm Pitch 2 Row Shrouded T2M-107-01-L-D-SM-WT-K-TR
Brand: Samtec
SKU: 172190
Price: 6.25 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Samtec
Orientation	Vertical
Current	3.8A
Model	T2M-107-01-L-D-SM-WT-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	T2M
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Silver, Tin
Number of Contacts	14
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Designed for high reliability in board-to-board connections.
Features liquid crystal polymer housing for durability and stability.
Operates within a temperature range of -55°C to 125°C.
Supports current up to 3.8 A and voltage rating of 250 V.
Contact material is phosphor bronze with silver and tin plating for excellent conductivity.
Surface mount type with vertical orientation and solder termination.
Includes tape and reel packaging for efficient handling.
Row pitch is 2 mm with 7 positions per row in a dual-row arrangement.

Product Description

Samtec T2M-107-01-L-D-SM-WT-K-TR is a high-quality vertical surface mount PCB header designed for robust electronic applications requiring secure board-to-board connections.

The housing material is liquid crystal polymer, which provides excellent mechanical strength and thermal resistance, making it ideal for demanding industrial and commercial electronic assemblies. The phosphor bronze contact material, plated with silver and tin, ensures reliable electrical performance and corrosion resistance.

Designed for operation within a temperature range of -55°C to 125°C and rated for up to 3.8 A current and 250 V, this header is suitable for various industrial electronics, instrumentation, power supply, and communication equipment applications.

The component is shrouded, enhancing durability and facilitating accurate mating during manufacturing. Surface mount technology with solder termination simplifies automated assembly processes, and tape and reel packaging supports efficient manufacturing workflows.

Provides a robust and reliable board-to-board connection system. Dual-row design with 7 positions per row optimizes space usage on PCB. Liquid crystal polymer housing ensures durability and temperature resilience. Phosphor bronze contacts with silver and tin plating deliver excellent conductivity and corrosion protection.

Wide operating temperature range supports diverse environmental conditions. Surface mount with solder termination enables automated PCB assembly. Shrouded construction improves connector mating and mechanical stability. Suitable for industrial, manufacturing, and electronic prototyping use cases.

This PCB header is an essential component for designers and engineers requiring dependable interconnect solutions in complex electronic systems. Explore more PCB connector components from Samtec and other leading manufacturers with EnvMart's extensive catalog.
