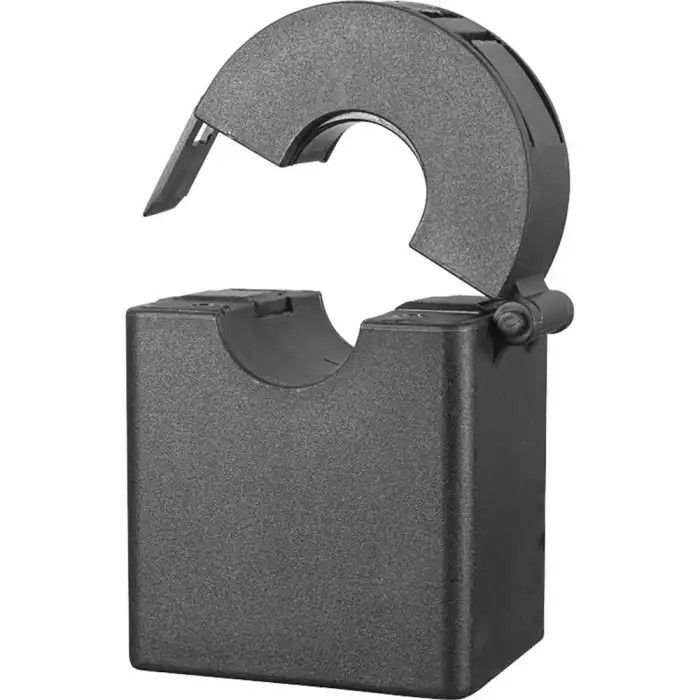

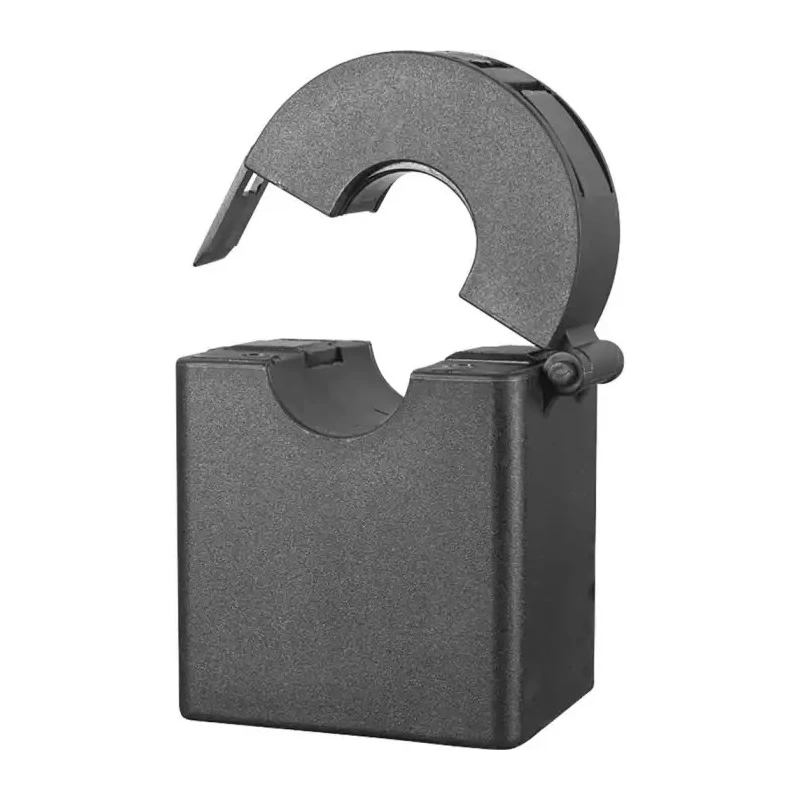

Carlo Gavazzi CTV Series Current Transformer 800 A 600V AC 16mm Bore CTV3X200A333MV

Carlo Gavazzi CTV3X200A333MV is a robust Current Transformer from the CTV series, engineered for industrial and automation electrical applications. Featuring a primary current rating of 800 A and a supply voltage of 600V AC, this device is designed to measure current with high accuracy and reliability.

The split core construction with a 16 mm bore diameter allows easy installation around existing cables, making it ideal for retrofit and upgrade projects. Its screw terminal connections provide secure electrical contacts while maintaining ease of wiring during maintenance.

This transformer operates efficiently within a broad temperature range from -40°C to 65°C, ensuring dependable performance in diverse environmental conditions. The unit complies with Class 1 EN 61000-4-8 standards, underscoring its precision and electromagnetic compatibility.

With dimensions of 66 mm length, 38 mm width, and 41 mm depth, and weighing 725 grams, the compact form factor supports installation in space-constrained control panels or distribution boards. The protection degree IP31 affords basic protection against dust and solid foreign objects, suitable for typical industrial indoor environments.

Compact split core design suitable for retrofit applications. 16 mm bore diameter for cable mounting flexibility. Screw terminal type ensures reliable connections. Operating temperature range from -40°C to 65°C for durability in varying environments.

Protection degree IP31 offers basic protection against solid objects. Complies with Class 1 EN 61000-4-8 standards ensuring accurate measurement. Lightweight at 725 grams, facilitating easy installation. Compact dimensions for versatile panel integration.

This current transformer is widely used in industrial automation, electrical power monitoring, energy management systems, and process control applications. It is compatible for use with energy analyzers such as the EM210 72 D MV, enabling accurate energy measurement and monitoring.

Manufactured in China, this Carlo Gavazzi product provides a dependable solution for electrical distribution and control system monitoring, suitable for various commercial, industrial, and manufacturing environments.
