Carlo Gavazzi CTV Series Split Core Current Transformer 800 A 600V AC 10mm Bore CTV8X800A333MV

Free Delivery in India | Lowest Global Shipping Charges

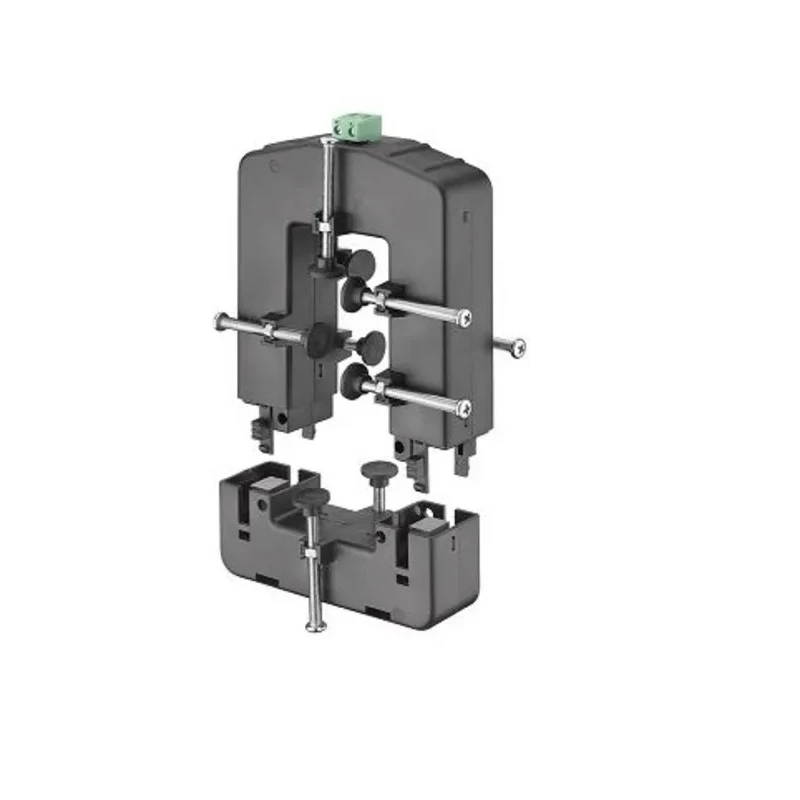

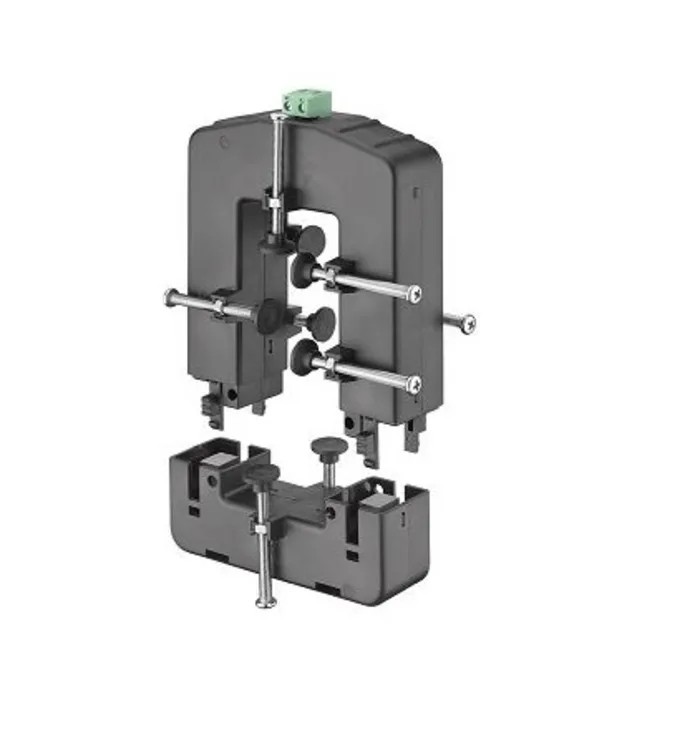

Carlo Gavazzi CTV Series Split Core Current Transformer 800 A 600V AC 10mm Bore CTV8X800A333MV

Name: Carlo Gavazzi CTV Series Split Core Current Transformer 800 A 600V AC 10mm Bore CTV8X800A333MV
Brand: Carlo Gavazzi
SKU: 171725
Price: 397.5 USD
Availability: InStock



Category Current Transformer Brand Carlo Gavazzi Condition New

Specifications

Country of Origin	China
Brand	Carlo Gavazzi
Length	155mm
Model	CTV8X800A333MV
Depth	46mm
Gross Weight	725g
Width	110mm
Mount Type	Busbar, Cable
Series	CTV
Maximum Operating Temperature	65°C
Minimum Operating Temperature	-40°C
Bore Diameter	10mm
Terminal type	Screw Terminal
Supply Voltage	600V ac
Standards/Approvals	EN 61000-4-8
Primary Current	800A

Key Features

Split core design allows for easy retrofit and installation without system downtime.
Compact dimensions measuring 155mm length, 110mm width, and 46mm depth.
Operates reliably within temperature range -40°C to 65°C.
Screw terminal connections ensure secure and reliable electrical contact.
Suitable mount types include busbar and cable installations.
Protection degree is IP35, providing moderate protection from dust and water ingress.
Complies with EN 61000-4-8 electromagnetic compatibility standard.
Lightweight design at 725 grams facilitates handling and mounting.

Product Description

Carlo Gavazzi CTV8X800A333MV current transformer from the CTV Series is a split core type sensor optimized for retrofit applications, particularly when paired with the EM210 72 D MV energy analyser. This device features a 10mm bore diameter and supports a primary current rating of 800 A with a supply voltage of 600V AC. Its compact size - 155mm length, 110mm width, and 46mm depth - makes it suitable for installations in limited spaces.

The unit employs screw terminal connections for secure wiring and supports busbar and cable mounting methods, enabling versatile application in industrial and electrical automation settings. Its operating temperature range from -40°C to 65°C accommodates a broad spectrum of environmental conditions, while the IP35 protection rating offers moderate protection against ingress of dust and water.

Certified to EN 61000-4-8 standards, the transformer meets electromagnetic compatibility requirements essential for reliable operation in industrial environments. Weighing approximately 725 grams, it is lightweight and easy to handle during installation and maintenance.

Applications for this current transformer include electrical power monitoring, industrial automation control, process control instrumentation, and retrofit energy metering projects. Its split core design simplifies installation without requiring disconnection of primary conductors, reducing downtime and labor costs.

Split core design for retrofit and simple installation. Compact footprint suitable for confined spaces. Wide operating temperature range from -40°C to 65°C. Screw terminal type connections ensure secure wiring. Flexible mounting options: busbar and cable compatible.

Protection degree IP35 for dust and water resistance. Conforms to EN 61000-4-8 electromagnetic standards. Lightweight construction of 725 grams. Manufactured in China with quality assurance. Explore the complete range of Carlo Gavazzi Current Transformers and related control gear components at EnvMart for industrial, electrical, and automation needs.
