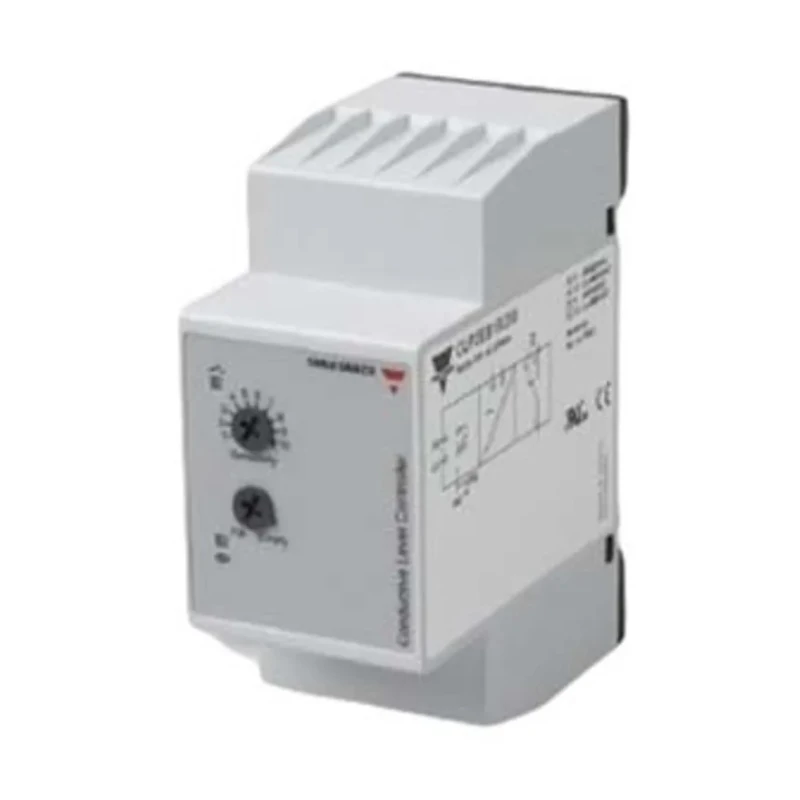

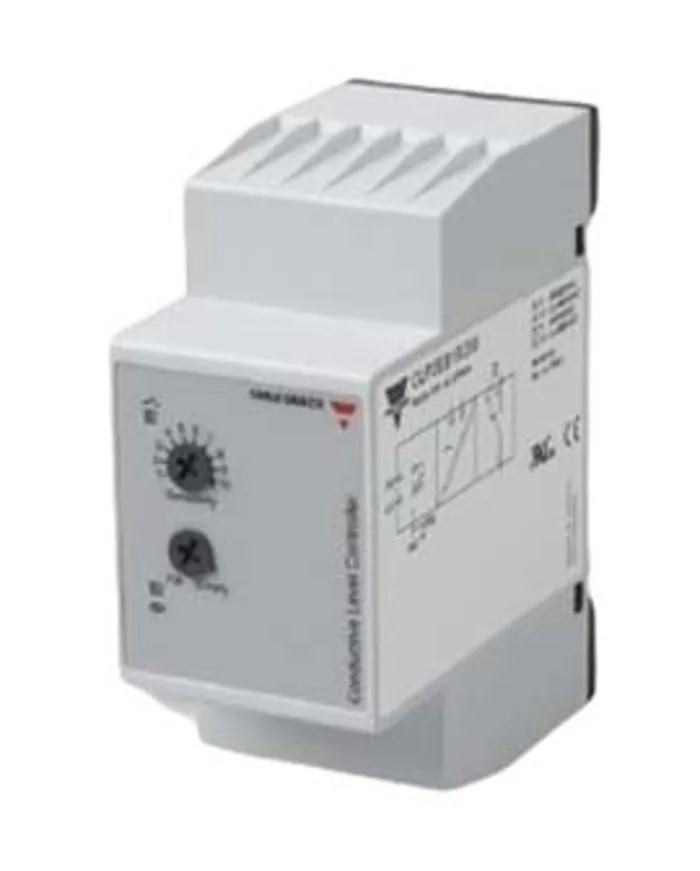

Carlo Gavazzi CLP Series Level Controller 2 Analogue Inputs 24V Relay Output DIN Rail Mount CLP2EA1C230
Specifications
| Country of Origin | Lithuania |
|---|---|
| Brand | Carlo Gavazzi |
| Response time | 5s |
| Model | CLP2EA1C230 |
| SENSITIVITY | 500kΩ |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Current Rating | 8A |
| Number of inputs | 2 |
| Output type | Relay |
| Series | CLP |
| Input Type | Analogue |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 5 |
| Terminal type | Screw |
| Standards/Approvals | UL, CSA |
| Maximum Supply Voltage | 24V |
| Probe Voltage | 5V |
Key Features
- The controller supports 2 analogue inputs for versatile sensing.
- Equipped with a DIN rail mount for easy installation.
- Includes 2 x 8A DPDT relay outputs rated at 24V for control and alarm functions.
- Sensitivity adjustable from 250 ohms to 500k ohms for adaptable liquid detection.
- Operates reliably within temperatures from -20°C up to +50°C.
- Features LED indicators for output and power status for quick diagnostics.
- Screw terminal connections provide secure wiring.
- Probe voltage fixed at 5V to support conductive liquid sensing.
Product Description
Carlo Gavazzi CLP2EA1C230 is a high-precision level controller designed to monitor and control liquid levels in various industrial applications. Featuring 2 analogue inputs and relay outputs rated for 24V, this DIN rail-mounted controller effectively manages conductive liquids including sewage, chemicals, and saltwater.
Its microprocessor-based design enables reliable sensitivity adjustment from 250 ohms up to 500k ohms, allowing it to adapt to a wide range of liquid types and conductivity. The controller includes two 8A double-pole double-throw (DPDT) relays, one dedicated for normal switching operations and another for alarm conditions, such as low or high liquid levels.
Installation is simplified with its DIN rail mount and screw terminal connections. The device operates under an ambient temperature range of -20°C to 50°C with an IP20 rating, making it suitable for protected indoor industrial environments. LED indicators provide clear status feedback for outputs and power, facilitating quick troubleshooting and monitoring.
Typical applications include protection of pumps against dry running, leak detection in systems, monitoring of corrosive liquids, and control of media mixing ratios. The robust construction and compliance with UL and CSA standards ensure safety and durability in demanding industrial settings.
The sensitivity adjustment allows operation across a broad range of conductive liquids. Relay outputs offer both control and alarm signaling functionalities. Microprocessor control enhances precision and reliability. IP20 rated enclosure suitable for indoor installation.
Compact and versatile DIN rail mounting design. Wide operating temperature range for multiple environments. Suitable for integration into wastewater and chemical processing controls. Designed for reliable and safe monitoring of liquid levels.
CE and CSA certifications attest to quality and compliance. For more industrial automation and control components, explore the Level Controllers category on EnvMart for comprehensive solutions tailored to your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensitivity of this model is adjustable from 250 ohms to 500k ohms, allowing it to adapt to various conductive liquids.
It features two 8A double-pole double-throw (DPDT) relay outputs rated for 24V, which can be used for control and alarm functions.
This unit operates reliably within a temperature range of -20°C to +50°C.
It is designed for DIN rail mounting, which simplifies installation in industrial settings.
The device has an IP20 rating, indicating it is suitable for protected indoor environments.
The probe voltage is fixed at 5V, which supports conductive liquid sensing applications.
It features screw terminal connections for secure wiring, although specific dimensions are not provided.
It complies with UL and CSA standards, ensuring quality and safety in industrial applications.
This model supports 2 analogue inputs for versatile sensing capabilities.
Typical applications include protection of pumps against dry running, leak detection, and monitoring of corrosive liquids.
The response time for this unit is 5 seconds, allowing for timely monitoring and control.
It includes a total of 5 outputs, which are primarily relay outputs for control and alarm functions.
