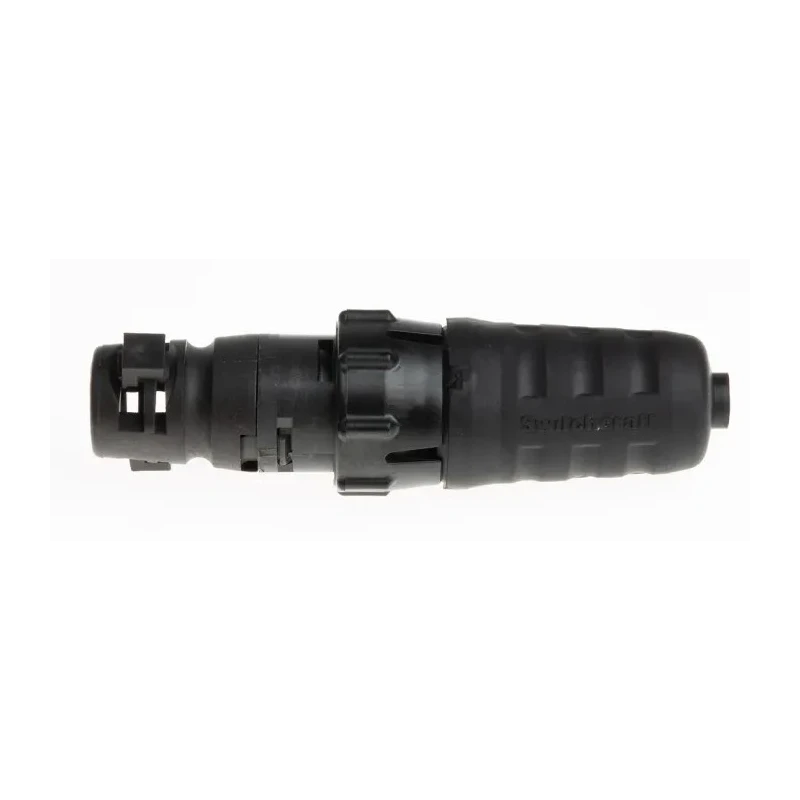

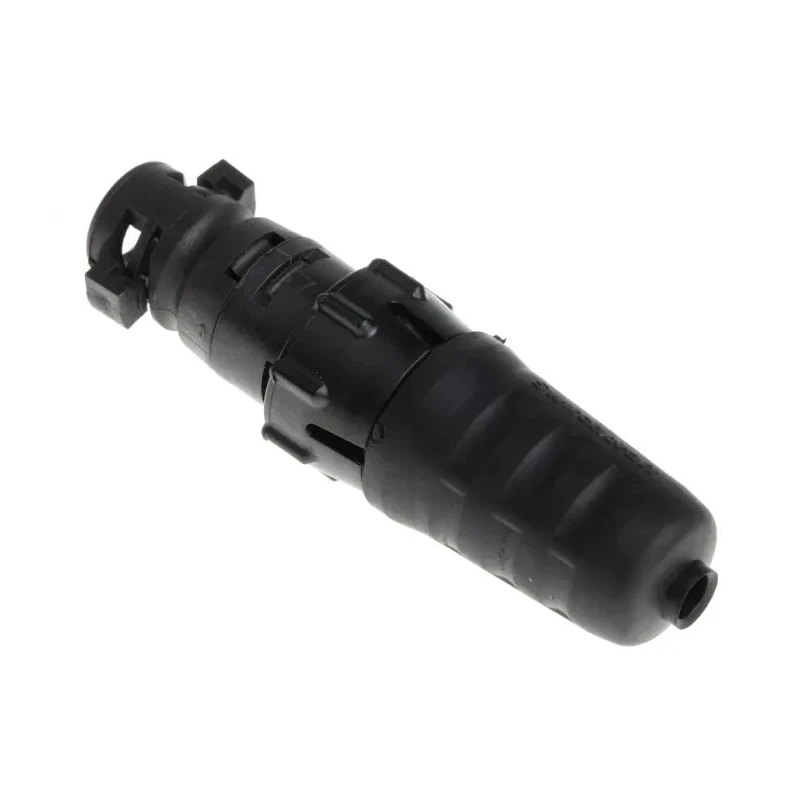

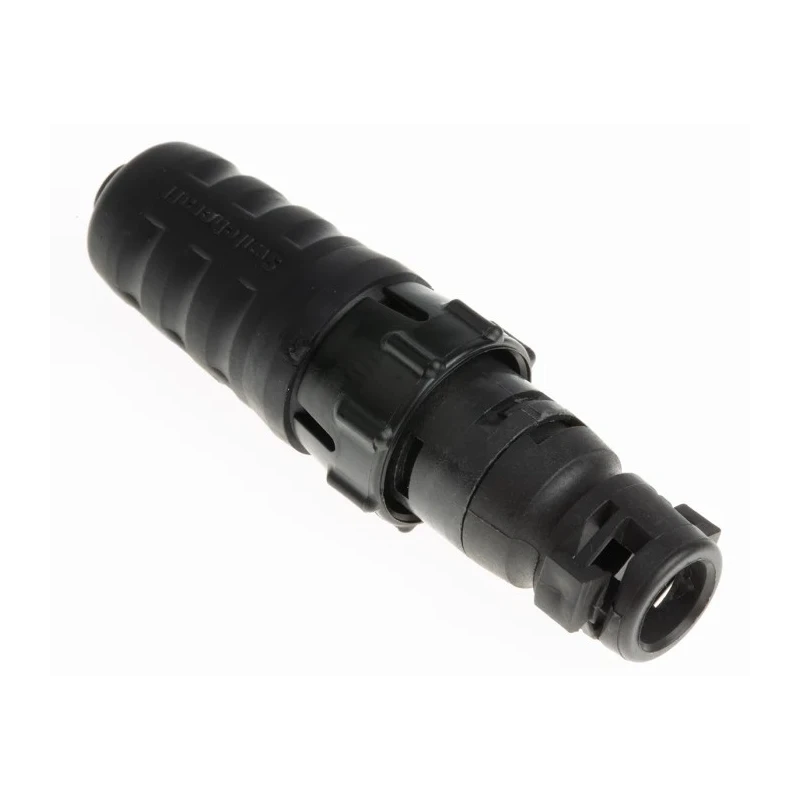

Bulgin Switchcraft Circular Connector 4 Contacts Cable Standard Plug Female IP68 IP69K EN3C4FX
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250, 600V |
| Brand | Bulgin |
| Orientation | Straight |
| Current | 7.5A |
| Model | EN3C4FX |
| IP Rating | IP68, IP69K |
| Mount Type | Cable, Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | EN3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- The connector features a thermoplastic rubber housing and gold over nickel contacts.
- Rated for 250VAC/DC and current up to 7.5A per contact.
- Designed with a straight, cable-mount plug orientation.
- Operates reliably between -40°C and 65°C temperature range.
- Provides strain relief for cables up to 6.7mm diameter using a boot backshell.
- Suitable for industrial, marine, medical instrumentation, transportation, and military applications.
- Bayonet mating type ensures easy and secure mechanical locking.
- Unshielded contacts sized 20AWG with solder termination.
Product Description
Bulgin Switchcraft EN3C4FX circular connector is a high-quality 4-contact female plug designed for cable mounting applications. Featuring a thermoplastic rubber housing with copper alloy contacts plated with gold over nickel, this connector provides excellent electrical and mechanical reliability. It maintains a voltage rating of 250VAC/DC and supports current up to 7.5A per contact, suitable for robust industrial use.
The connector's straight body orientation and bayonet locking mechanism enable fast, secure mating with integral O-ring and gasket designs that provide IP68 and IP69K protection, making it ideal for use in harsh environments including industrial electronics, marine equipment, medical instrumentation, transportation systems, and military devices. Operating temperature ranges from -40°C to 65°C ensure performance across a broad spectrum of conditions.
The cable mount style includes a boot backshell for strain relief accommodating cable diameters up to 6.7mm. It uses solder cup termination for reliable wiring installation. This product’s design minimizes part count while providing superior leakage protection and a polarising key to prevent misalignment or accidental disconnection.
Applications include general industrial electronics, GPS location devices, medical data carts, and transportation instrumentation. The connector is manufactured in the United States and supplied in new condition, making it a dependable choice for demanding installations.
The connector features a thermoplastic rubber housing and gold over nickel contacts. Rated for 250VAC/DC and current up to 7.5A per contact. Designed with a straight, cable-mount plug orientation. Operates reliably between -40°C and 65°C temperature range.
Provides strain relief for cables up to 6.7mm diameter using a boot backshell. Suitable for industrial, marine, medical instrumentation, transportation, and military applications. Bayonet mating type ensures easy and secure mechanical locking.
Unshielded contacts sized 20AWG with solder termination. The product carries a United States country of origin and is supplied new. Explore our comprehensive range of connectors and electrical components on EnvMart for industrial and commercial requirements.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 250VAC/DC, making it suitable for various electrical applications.
It supports a maximum current of 7.5A per contact, which is appropriate for robust industrial use.
The connector operates reliably between -40°C and 65°C, allowing it to function in diverse environmental conditions.
It employs solder cup termination, ensuring a reliable wiring installation for various applications.
The connector has an IP68 and IP69K rating, providing excellent protection against dust and water ingress.
The housing is made of thermoplastic rubber, offering durability and resistance to harsh environments.
This connector features 4 contacts, making it suitable for various electrical connections.
It has a standard connector size with a straight orientation designed for cable mounting applications.
It uses a bayonet mating type, which ensures easy and secure mechanical locking during use.
The connector provides strain relief for cables up to 6.7mm in diameter using a boot backshell.
It is suitable for industrial, marine, medical instrumentation, transportation, and military applications.
The connector is manufactured in the United States, ensuring compliance with local standards.
