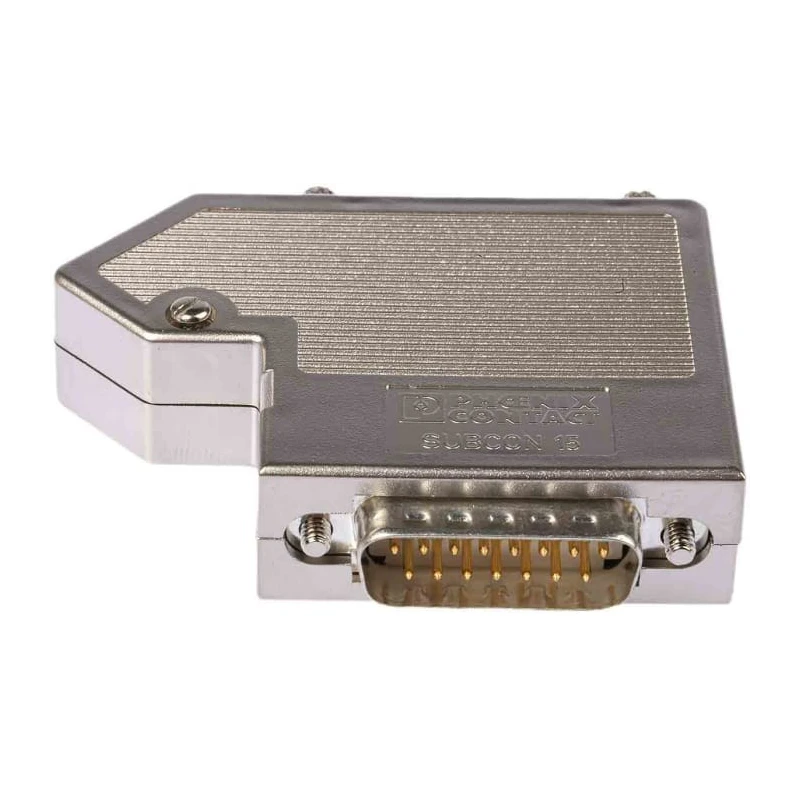

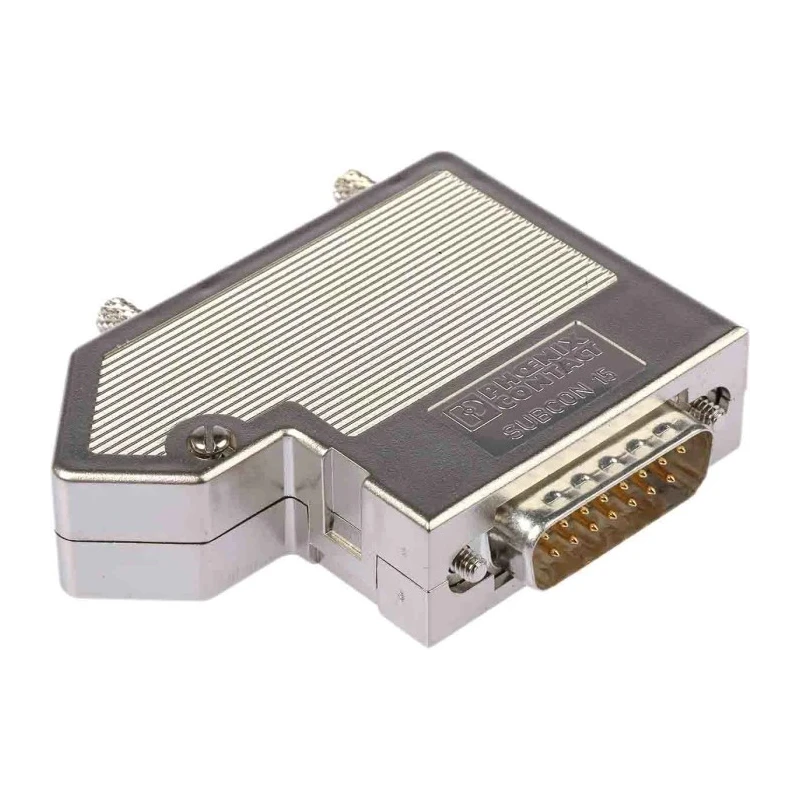

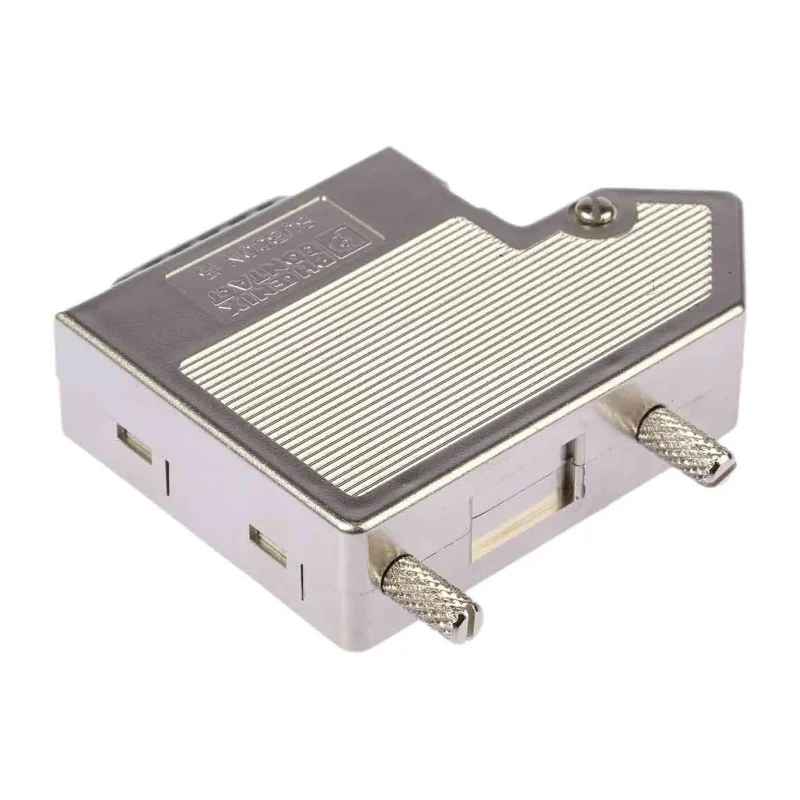

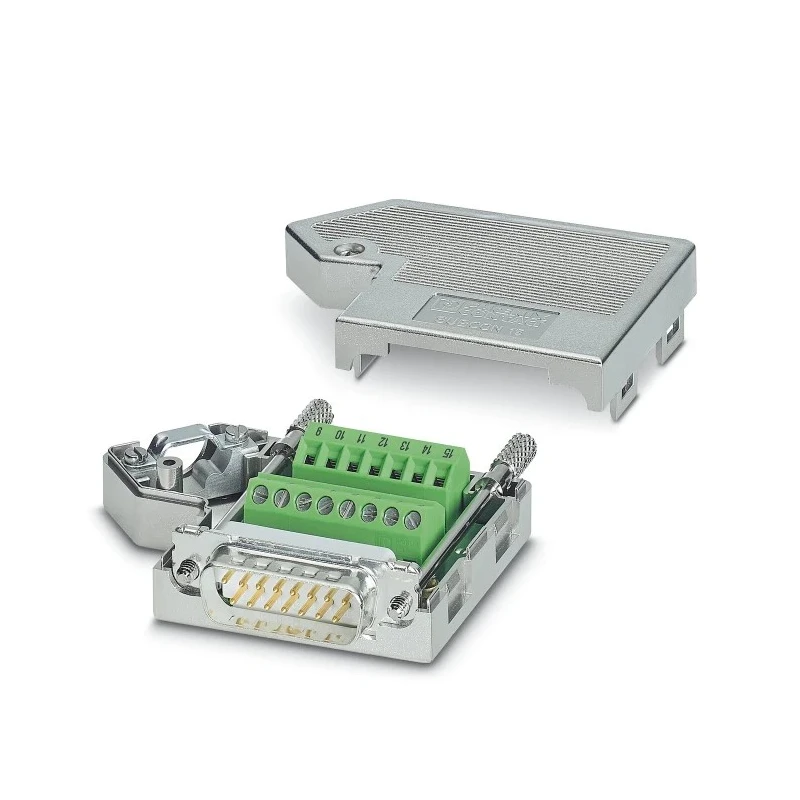

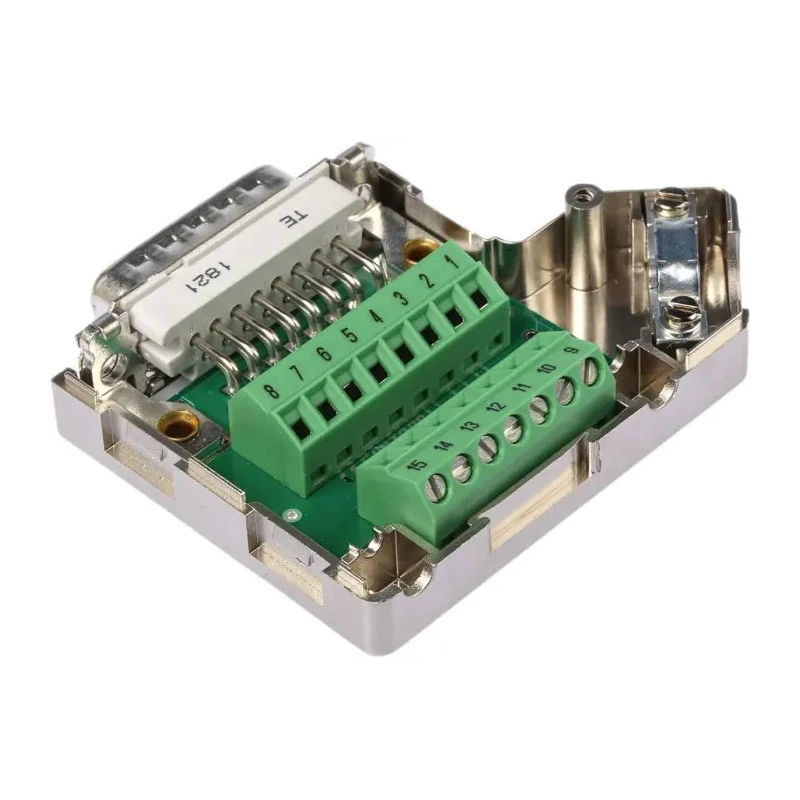

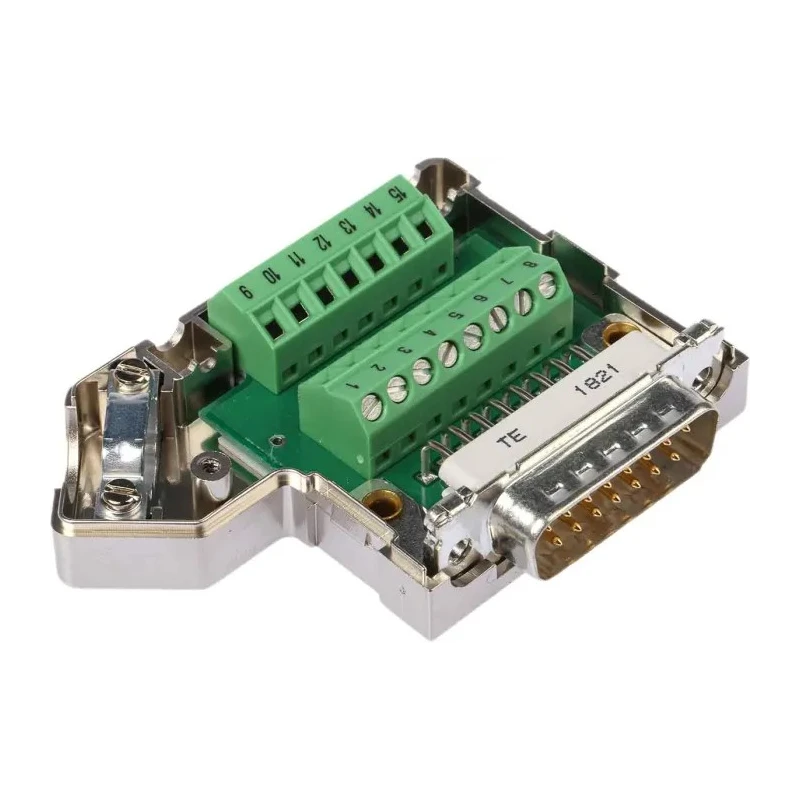

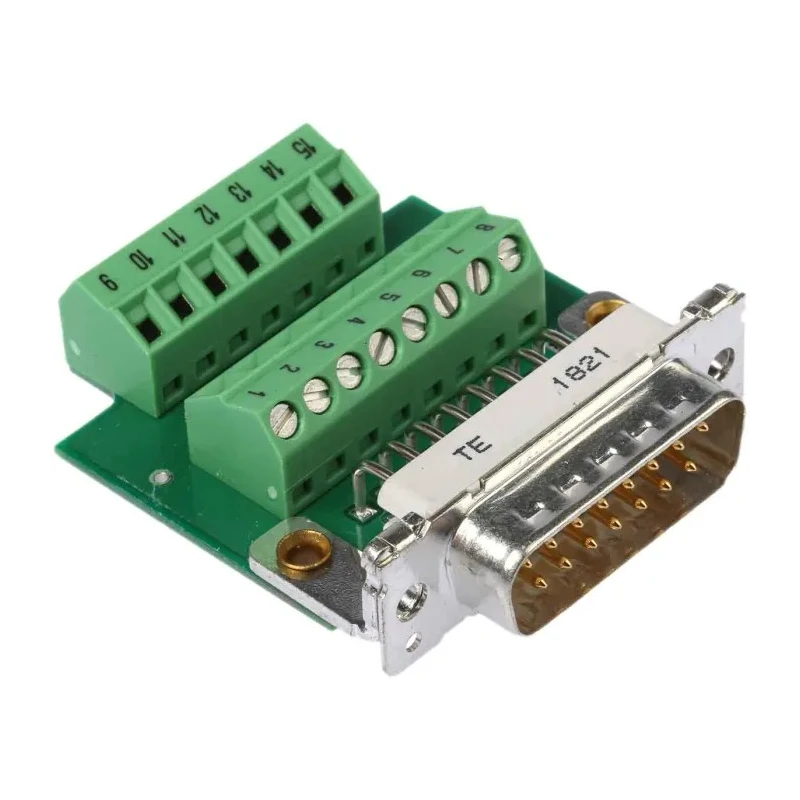

Phoenix Contact SH 15 Way Right Angle PCB D-Sub Connector 2.77 mm Pitch 50V 100mA 2761606
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 50V |
| Brand | Phoenix Contact |
| Orientation | Right Angle |
| Current | 100mA |
| Model | 2761606 |
| Mount Type | PCB, PCB |
| Housing Material | ABS |
| Contact Material | Copper Alloy |
| Series | SH |
| Termination Type | Screw |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -20°C |
| Pitch | 2.77mm |
| Standards/Approvals | EU REACH, CHINA RoHS, EAC, EU RoHS |
| Number of Contacts | 15 |
| Contact Gender | Male |
Key Features
- Right angle orientation allows installation in compact and space-restricted environments.
- Construction includes high-quality ABS housing material that insulates and protects against EMI.
- Screw termination type simplifies wiring and assembly on printed circuit boards.
- Wide operating temperature range from -20°C to 75°C ensures reliable performance in varied environments.
- Durable copper alloy contact material provides excellent conductivity and signal integrity.
- Compact size with dimensions 64.7 mm length, 16 mm width, and 44.5 mm height.
- Compliance with EU REACH, CHINA RoHS, EAC, and EU RoHS standards supports environmental and safety regulations.
- Designed for up to 200 mating cycles, ensuring long-term reliable connections.
Product Description
Phoenix Contact 2761606 SH 15 Way Right Angle PCB D-Sub Connector features a robust design with a 2.77 mm pitch ideal for 50V nominal voltage and 100mA nominal current applications. The right angle orientation and screw termination allow easy and secure PCB mounting in electronics and industrial control panels.
This connector is housed in ABS material that fully insulates the cable connection to prevent electromagnetic interference, maintaining signal integrity and reliability. The copper alloy contacts ensure highly conductive connections for clear, stable signals even in demanding environments.
With an operating temperature range of -20°C to 75°C, this connector is suitable for use in diverse industrial, laboratory, and electronic manufacturing applications. It is designed for a life span exceeding 150 mating cycles, providing long-term durability and performance.
The compact dimensions of 64.7 mm length, 16 mm width, and 44.5 mm height enable use in tight spaces, such as control panels, stationary A/V setups, and computer interfaces requiring legacy VGA port support. The IP20 rating offers protection from electrical shock, enhancing user safety during operation.
Right angle orientation for compact mounting. ABS housing with EMI protection. Copper alloy contacts for excellent conductivity. Screw termination for easy PCB connection. Wide operating temperature range of -20°C to +75°C.
Compliance with multiple environmental and safety standards. Compact dimensions for space-saving installation. Touch-proof IP20 rated design.
This Phoenix Contact connector is a reliable choice for electronic component assemblies in industrial, manufacturing, and embedded system applications. Its robust construction and precise engineering support secure, long-lasting connections critical for modern electronic systems.
Explore more connectors and related electronic components in the Phoenix Contact range at EnvMart for industry-grade performance and quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a maximum voltage rating of 50V.
This model supports a nominal current of 100mA.
The housing is made of ABS material, while the contact material is a copper alloy.
It operates within a temperature range of -20°C to 75°C.
This connector features 15 contacts.
It utilizes a screw termination type for easy and secure PCB connections.
The pitch size of this connector is 2.77 mm.
Yes, it complies with EU REACH, CHINA RoHS, EAC, and EU RoHS standards.
The connector has a right angle orientation, suitable for compact installations.
The dimensions are 64.7 mm in length, 16 mm in width, and 44.5 mm in height.
It is designed for up to 200 mating cycles, ensuring long-term reliability.
This model is designed for PCB mounting.
