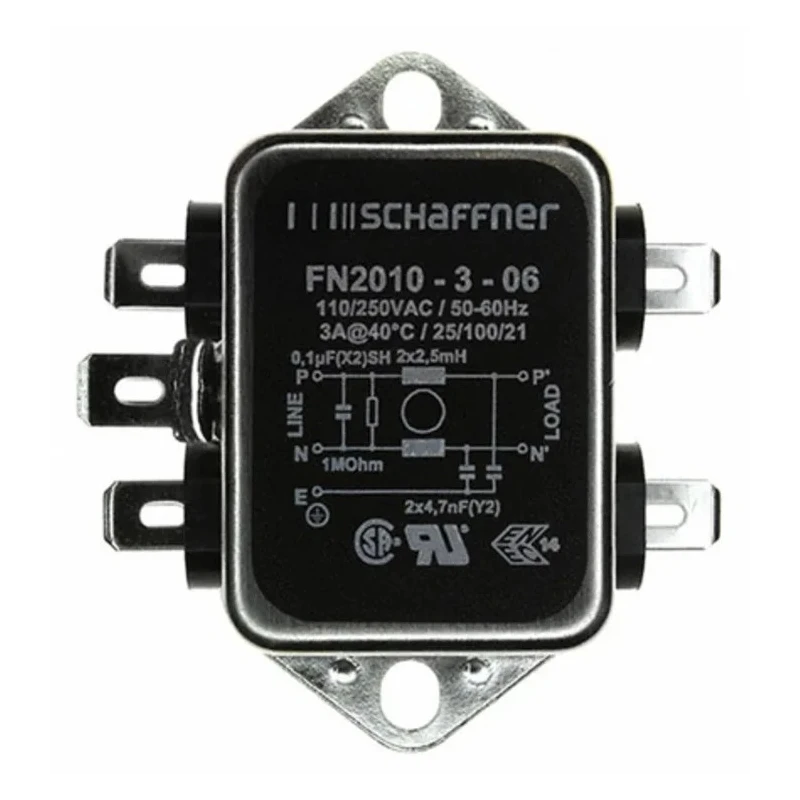

Schaffner EMI Filter Chassis Mount 3 A 250V AC/DC 0Hz-400Hz Fast-On Terminals FN2010

Schaffner FN2010 Series EMI Filter, model FN2010, is a high-performance chassis mount filter designed for single-phase power line noise suppression with a current capacity of 3 A and voltage rating of 250 V AC/DC. It operates effectively across a frequency range from 0 Hz to 400 Hz, making it suitable for diverse electronic and electrical systems requiring electromagnetic interference control.

The compact chassis mount design housed in an aluminium case ensures durability and ease of installation in industrial and commercial equipment. The filter employs Fast-On termination style terminals, enabling rapid and reliable connections while maintaining safety standards.

The FN2010 EMI filter features a capacitance of 100 nF and inductance of 2.5 mH, delivering excellent attenuation of EMI noise. Its leakage current is limited to 740 μA, and it operates efficiently with a power loss of 1.1 W. The device functions reliably within an ambient temperature range of -25°C to 100°C.

This filter has dimensions of 64 mm in length, 35 mm in depth, and 24.3 mm in height, allowing easy integration into existing chassis or enclosures without extensive modification. While not explicitly certified to additional standards, it is designed to meet general industrial quality expectations and is manufactured in Thailand.

Typical applications include use in power line filtering for electronic equipment, industrial machines, laboratory instruments, and HVAC systems, where suppression of electromagnetic interference is critical for compliance and operational reliability.

Designed for general purpose EMI filtering in power line applications. Operates over frequency range from 0Hz to 400Hz. Compact aluminium case chassis mount construction. Features low leakage current of 740μA at rated conditions.

Capacitance of 100nF and inductance of 2.5mH ensure effective noise suppression. Fast-On terminals enable quick and secure electrical connections. Temperature range from -25°C to 100°C suits diverse industrial environments.

Power loss rated at 1.1 W providing efficient operation. Dimensions are 64mm length, 35mm depth, and 24.3mm height for easy integration. RoHS compliant, manufactured in Thailand.

This Schaffner FN2010 EMI Filter is ideal for incorporation into industrial controls, electrical enclosures, commercial electronic devices, and other environments requiring robust EMI mitigation. Explore more quality EMI and power line filters in EnvMart's Electronics Components category.
