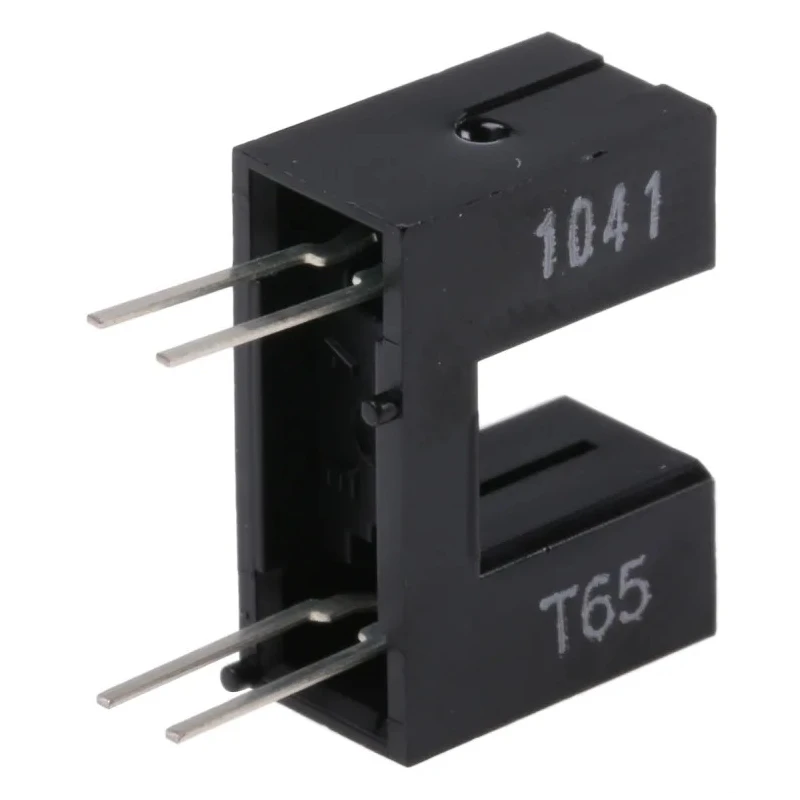

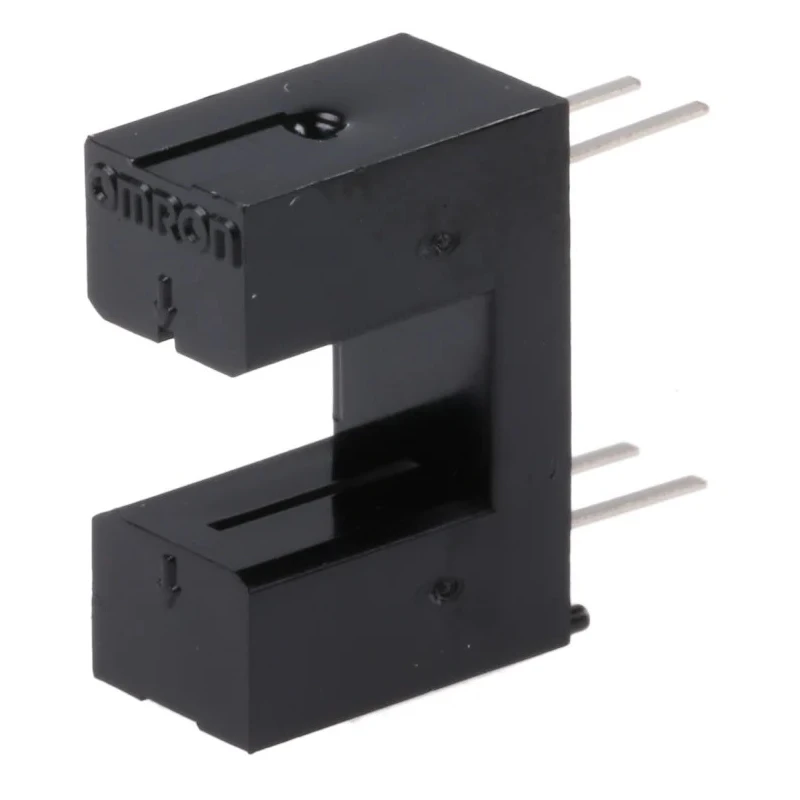

Omron EE-SX1041 Through Hole Slotted Optical Switch, Transistor Output, 4 Pins, 5mm Slot Width EE-SX1041

Omron EE-SX1041 is a through hole slotted optical switch from the renowned EE-SX series, featuring a transistor output device ideal for industrial, electronic, and automation applications. This switch combines an infrared LED and phototransistor in a compact molded package enabling precise object detection within a 5mm slot.

The device is designed with an integral Schmitt trigger amplifier to provide clean transition and stable output, supporting rapid switching with a typical rise and fall time of 4μs each. Its through hole pin mounting and small footprint dimensions (14.6mm width x 10.9mm height x 6mm length) make it suitable for PCB integration in electronic circuits.

The EE-SX1041 operates effectively in harsh environments with a temperature range of -25°C to 95°C and conforms to RoHS standards fostering environmental compliance. With 4 pins and single-channel operation, it is optimized for use in optoelectronics, industrial machine automation, and sensor applications requiring reliable through slot detection.

Transistor output device for accurate signal processing. Single channel with fast response timing. Through hole mount with pin package for secure PCB installation. Compact and lightweight design ensuring integration flexibility.

Wide operating temperature range for diverse industrial conditions. RoHS compliant, ensuring environmental safety in manufacturing. Typical slot width of 5mm for effective object interrupt detection.

Omron’s EE-SX1041 switch is broadly used in manufacturing automation, electronic component testing, and machinery monitoring. Its robust design and efficient performance make it a dependable component in a wide range of sensor and optoelectronic applications. Browse EnvMart’s Slotted Optical Switch category for similar high-quality sensor solutions by Omron and other leading brands.
