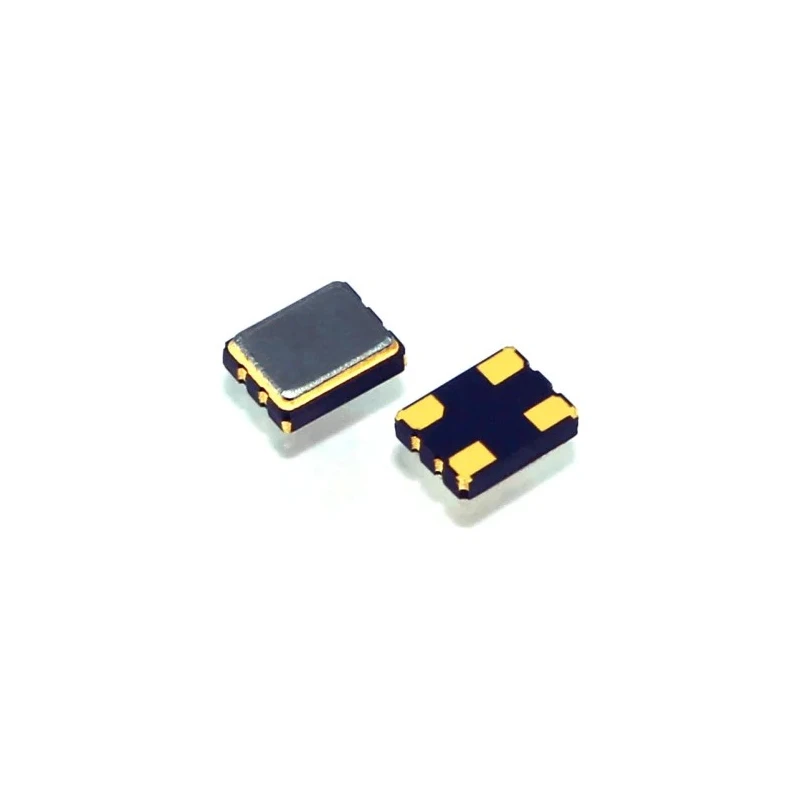

Ecliptek 8MHz XO Oscillator 50 ppm CMOS 4-Pin Surface Mount EB13E2H2H-8.000M TR

The Ecliptek EB13E2H2H-8.000M TR is an 8MHz XO oscillator featuring 50 ppm frequency stability and a CMOS output, housed in a compact 4-pin surface mount package. Suitable for electronic applications requiring precise clock timing, its 3.3V maximum supply voltage provides efficient power usage while supporting a broad operating temperature range from -20°C to 85°C.

This oscillator is part of the EB13E2 series and incorporates tri-state logic control for enhanced signal control in circuit designs. The device is ideally packaged in tape and reel format to support high-volume manufacturing and ease of automated PCB assembly.

Compact physical dimensions of 3.2 mm length, 2.5 mm width, and 0.9 mm height enable integration in space-constrained electronic assemblies. Its maximum supply voltage of 3.3V and CMOS output level make it compatible with many modern electronic systems.

Applications include a variety of industrial electronics, laboratory equipment, communication devices, and embedded systems requiring stable and accurate clock sources. It is widely suited for use in manufacturing and repair of electronic components and modules requiring precise timing accuracy.

This oscillator operates at 8MHz frequency with 50 ppm tolerance. Power supply requirement is a maximum of 3.3V, suitable for low-power systems. Surface mount with a 4-pin layout enables compact PCB integration. Tri-state logic control feature offers signal gating capabilities.

Temperature operational range is from -20°C to 85°C for versatile environmental tolerance. Packaging in tape and reel supports automated assembly lines. Manufactured in Korea, Republic Of, ensuring consistent quality.
