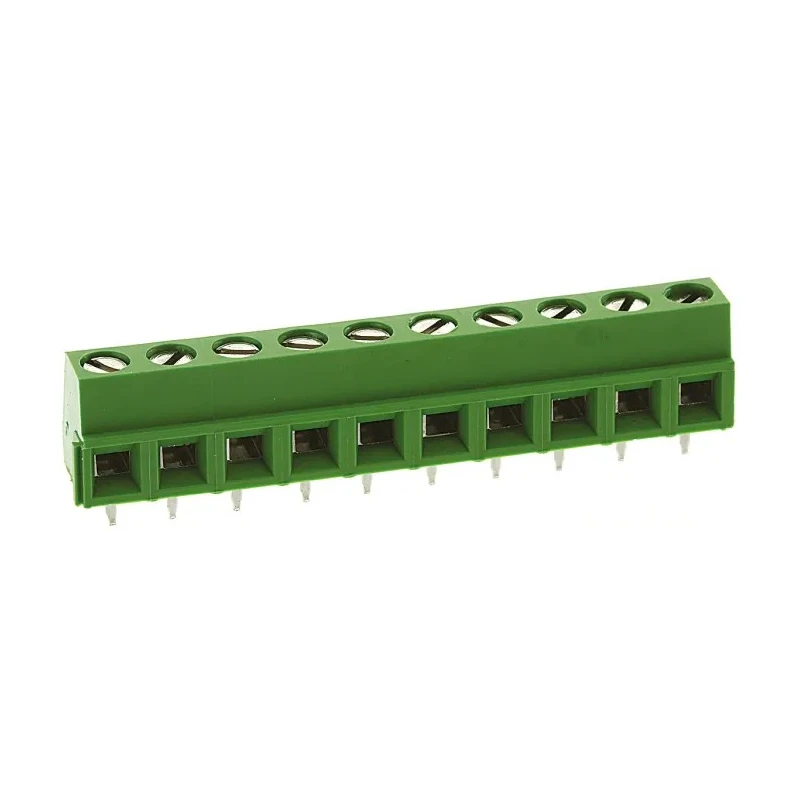

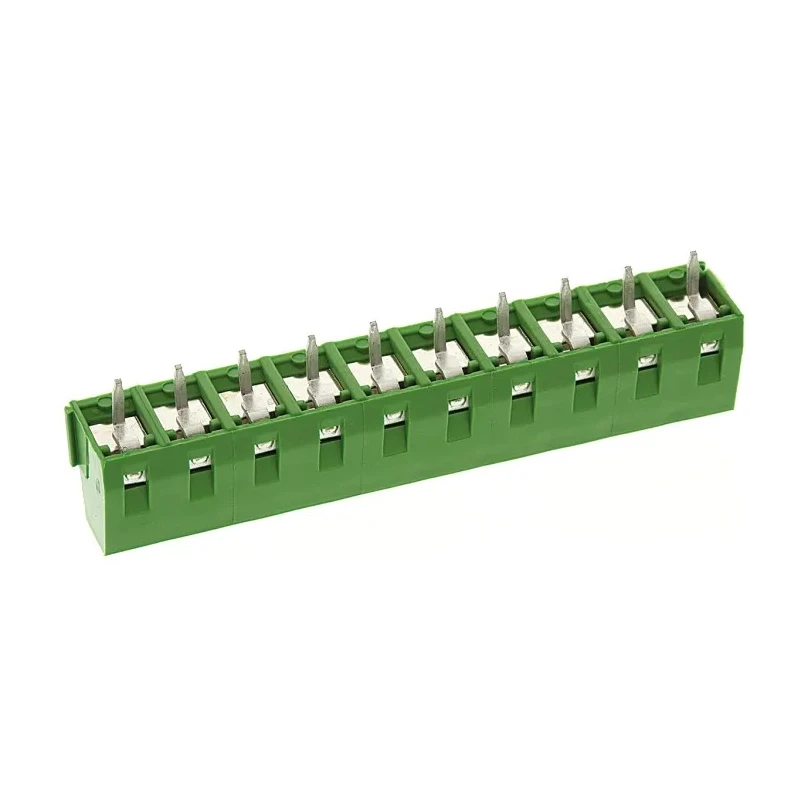

TE Connectivity Buchanan Series PCB Terminal Block 10-Contact 5 mm Pitch 1 Row 300V AC 13.5A 1-282836-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 13.5A |
| Length | 50mm |
| Depth | 8.2mm |
| Width | 10mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 10 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 30AWG |
| CAMDENBOSS PCB Terminal Block, 36-Contact, 5 mm Pitch, PCB, 1 RowBrand | CAMDENBOSS |
Key Features
- Features a 5 mm pitch and 1 row configuration for compact PCB integration.
- Constructed with durable green polyamide housing material for longevity.
- Supports current rating up to 13.5 A and voltage rating of 300V AC.
- Accepts wire sizes from 0.05 mm² to 1.3 mm² (16 AWG to 30 AWG) with M3 screw clamp terminals.
- The straight male connector design allows side wire entry with interlocking feature for secure stacking.
- Operating temperature range from -40°C to +110°C for versatile environmental conditions.
- Compliant with UL File no. E60677 and CSA File no. LR7189 for safety assurance.
Product Description
TE Connectivity 1-282836-0 Buchanan Series PCB Terminal Block offers a reliable and compact solution for 10-contact printed circuit board connections. Designed with a 5 mm pitch and single row layout, this terminal block supports current up to 13.5 A and voltage rating of 300V AC, suitable for various electronic applications.
The connector features a robust green polyamide 6.6 GF housing that ensures durability and resistance in demanding environments. With its M3 screw clamp terminals, it accepts a wide wire size range from 0.05 mm² to 1.3 mm² (16 AWG to 30 AWG), allowing versatile wiring options.
The straight male connector orientation with side wire entry and interlocking functionality facilitates secure stacking and ease of installation in compact PCB designs. Its low profile and dimensions of 50 mm length, 10 mm width, and 8.2 mm depth make it ideal for space-constrained applications.
Operating over a temperature range of -40°C to +110°C, this terminal block is certified with UL and CSA approvals, ensuring compliance with safety standards. Features a 5 mm pitch and 1 row for efficient PCB mounting. Durable green polyamide material provides mechanical stability.
Current capacity of 13.5 A at 300V AC voltage rating. Wire size compatibility from 0.05 to 1.3 mm² with secure M3 screw clamps. Interlocking design supports side-by-side stacking on PCBs. Compact dimensions suitable for low-profile electronic assemblies.
Wide temperature tolerance for varied industrial and commercial environments. Certification ensures adherence to electrical safety requirements. This terminal block is widely used in industrial, manufacturing, electronic assembly, and power distribution applications where reliable PCB connections are critical.
Explore other electronic components and connectors in the Pluggable Terminal Blocks category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 13.5 A and a voltage rating of 300V AC.
It accepts wire sizes ranging from 0.05 mm² to 1.3 mm², which corresponds to 16 AWG to 30 AWG.
The dimensions of this unit are 50 mm in length, 10 mm in width, and 8.2 mm in depth.
The housing is constructed from durable green polyamide material.
It features a 5 mm pitch and a single row configuration for compact PCB integration.
This terminal block operates effectively within a temperature range of -40°C to +110°C.
It has a straight male connector orientation with side wire entry.
Yes, it is compliant with UL File no. E60677 and CSA File no. LR7189 for safety assurance.
The interlocking feature allows for secure stacking and ease of installation in compact designs.
It is widely used in industrial, manufacturing, electronic assembly, and power distribution applications.
The connector gender is male, designed for secure connections on PCBs.
The country of origin for this terminal block is India.
