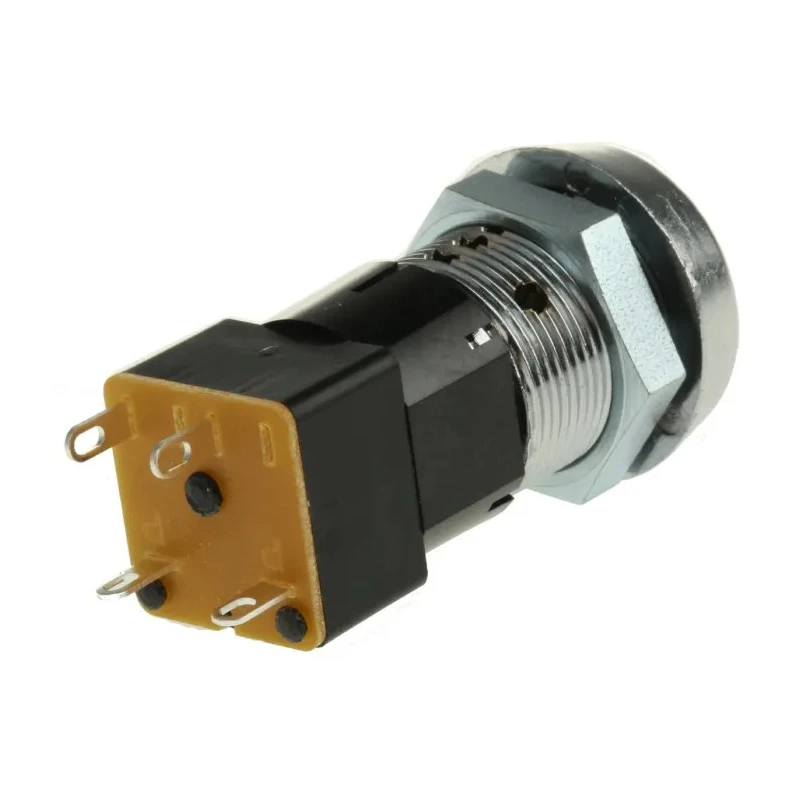

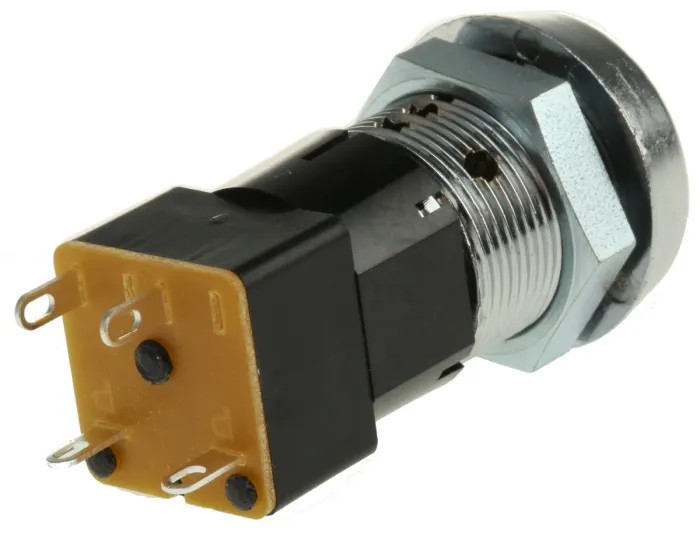

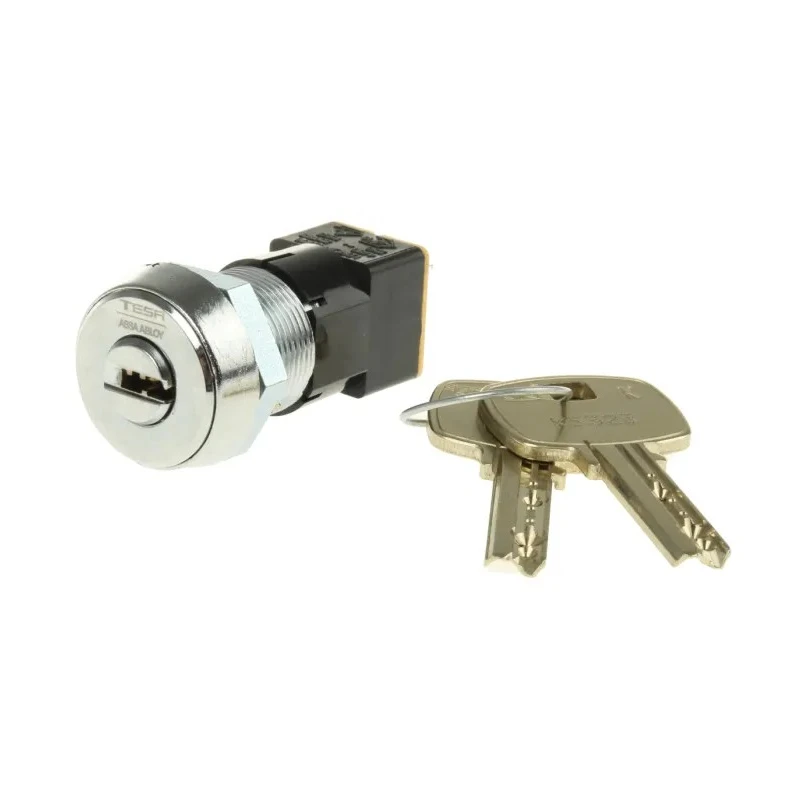

Lorlin High Security Key Switch, DPST, 50mA 2-Way Flat-Key DSL-6-C-S

Free Delivery in India | Lowest Global Shipping Charges

Lorlin High Security Key Switch, DPST, 50mA 2-Way Flat-Key DSL-6-C-S

Name: Lorlin High Security Key Switch, DPST, 50mA 2-Way Flat-Key DSL-6-C-S
Brand: Lorlin
SKU: 169581
Price: 114.28 USD
Availability: InStock



Category Key Switch Brand Lorlin Condition New

Specifications

Country of Origin	United Kingdom
Brand	Lorlin
Model	DSL-6-C-S
Contact Material	Silver Cadmium Oxide
Series	DSL
Maximum Operating Temperature	85°C
Contact Configuration	DPST
Number of Positions	2
Minimum Operating Temperature	-25°C
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Off-On
Contact DC Voltage	30V dc
Switch Contact Current	50mA
Mechanical Life	15000Cycles
Contact AC Voltage	240V ac
Key Type	Flat
Bezel Shape	Round
Key Index Angle	90°
Lorlin High Security Key Switch, DPST, 50mA 2-Way Flat-KeyBrand	Lorlin

Key Features

The switch features double-pole, single-throw (DPST) contact configuration for effective circuit control.
Operates with a 50mA switch contact current and supports up to 30V DC and 240V AC voltage.

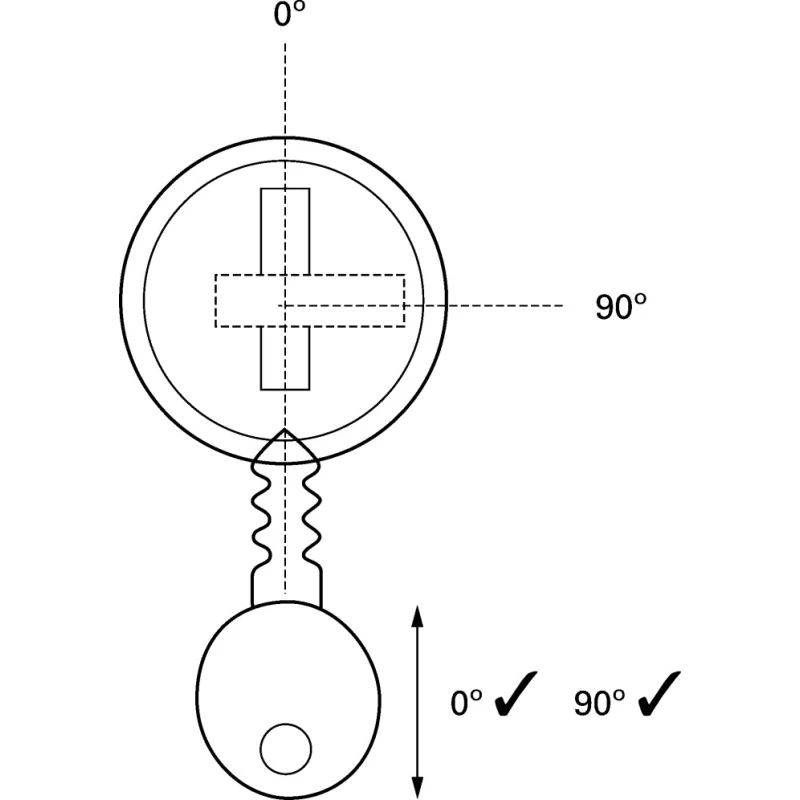

Includes flat key type with a 90° key index angle ensuring precise key movement.
Designed for solder terminal connections with a robust round bezel shape.
The contact material is silver cadmium oxide, contributing to durability and reliable conductivity.
Operating temperature range from -25°C to 85°C allows usage in varied environments.
Mechanical life rated at 15,000 cycles ensures long-lasting operation.
Manufactured in the United Kingdom under DSL series, ensuring high-quality standards.

Product Description

Lorlin DSL-6-C-S High Security Key Switch is a DPST switch rated at 50mA designed for secure and reliable circuit switching in industrial and electrical applications.

This switch features a flat key type with a 2-position operation and a 90° key index angle, making it suitable for controlled access and security systems. The round bezel design allows for durable front panel mounting with solder terminal connectivity for stable electrical connections.

Constructed with silver cadmium oxide contacts, this key switch ensures excellent conductivity and resistance to wear, contributing to its extended mechanical life of 15,000 cycles. It supports DC voltage up to 30V and AC voltage up to 240V, accommodating a range of switching requirements.

The operating temperature range from -25°C to 85°C makes this switch versatile for various industrial, automation, and security installations. Its two-part construction with front panel insertion and rear snap-on module simplifies installation and maintenance.

Ideal for applications in electrical panels, automation systems, and access control where high security and reliable switching are critical. Manufactured in the United Kingdom, this product aligns with RoHS standards, demonstrating compliance with environmental and safety regulations.

The switch features double-pole, single-throw (DPST) contact configuration for effective circuit control. Operates with a 50mA switch contact current and supports up to 30V DC and 240V AC voltage. Includes flat key type with a 90° key index angle ensuring precise key movement.

Designed for solder terminal connections with a robust round bezel shape. The contact material is silver cadmium oxide, contributing to durability and reliable conductivity. Operating temperature range from -25°C to 85°C allows usage in varied environments.

Mechanical life rated at 15,000 cycles ensures long-lasting operation. Manufactured in the United Kingdom under DSL series, ensuring high-quality standards. Explore the complete range of Key Switches and electrical components at EnvMart for industrial, automation, and security solutions.
