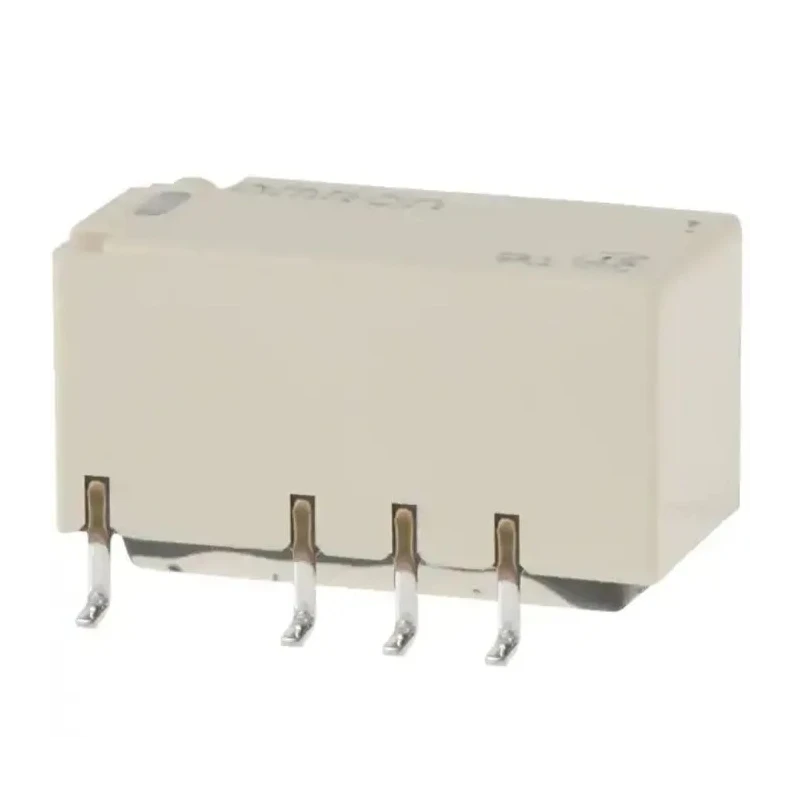

Omron Surface Signal Relay 4.5V DC Coil 2A DPDT Surface Mount G6S-2F DC4.5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9.2mm |
| Length | 14.8mm |
| Model | G6S-2F DC4.5 |
| Width | 7.3mm |
| Mount Type | Surface |
| Contact Material | Silver Alloy |
| Series | HFD4 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Contact Resistance | 75mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 145Ω |
| Coil Voltage | 4.5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- The relay features a 4.5V DC coil voltage for efficient operation.
- It provides DPDT (double pole double throw) contact configuration for versatile switching.
- Switching current capability is 2A with AC voltage up to 250V and DC voltage up to 220V.
- This surface mount relay has a compact size of 14.8mm length, 9.2mm height, and 7.3mm width.
- Suitable for applications in telecommunications, industrial equipment, and building automation.
- The coil power consumption is 140mW with a coil resistance of 145Ω.
- Operates reliably in temperatures from -40°C to 85°C.
- The contact material is silver alloy ensuring good conductivity and durability.
Product Description
Omron G6S-2F DC4.5 Surface Signal Relay is a compact and reliable signal relay designed for surface mounting with a 4.5V DC coil and 2A switching current. It features double pole double throw (DPDT) contacts enabling versatile switching of AC and DC loads. This relay is ideal for telecommunication equipment, office automation machines, industrial machinery, audio-visual devices, security systems, and building automation.
With dimensions of 14.8mm length, 9.2mm height, and 7.3mm width, the relay is compact for integration into various electronic systems. The coil resistance of 145Ω and coil power of 140mW contribute to energy-efficient operation. Contact resistance is low at 75mΩ, and the contacts are made of silver alloy to ensure excellent conductivity and durability over many switching cycles.
The relay operates reliably in temperature ranges from -40°C to 85°C and is fully RoHS compliant, guaranteeing environmental safety standards. The surface mount terminal type ensures easy soldering and mounting reliability on printed circuit boards.
This signal relay is widely used in industrial and commercial electronic devices requiring precise and reliable switching with a compact form factor. Packaging and additional technical documents are available for professional engineering use.
The relay supports switching AC voltages up to 250V and DC voltages up to 220V. Long terminals provide ideal soldering and mounting reliability. Applications include telecommunications, measurement devices, security systems, and automation.
It is a fully sealed relay ensuring protection against dust and environmental factors. Explore more Signal Relays and related components in the Electronics & Electricals category at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a coil voltage of 4.5V DC, which allows for efficient operation.
It can handle a switching current of up to 2A.
The relay measures 14.8mm in length, 9.2mm in height, and 7.3mm in width.
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile switching.
It can switch AC voltages up to 250V and DC voltages up to 220V.
The coil power consumption is 140mW, which contributes to its energy-efficient operation.
The contacts are made of silver alloy, ensuring good conductivity and durability.
It operates reliably within a temperature range of -40°C to 85°C.
It features a surface mount terminal type, which ensures easy soldering and mounting reliability on printed circuit boards.
Yes, it is fully RoHS compliant, ensuring it meets environmental safety standards.
This relay is suitable for applications in telecommunications, industrial equipment, and building automation.
