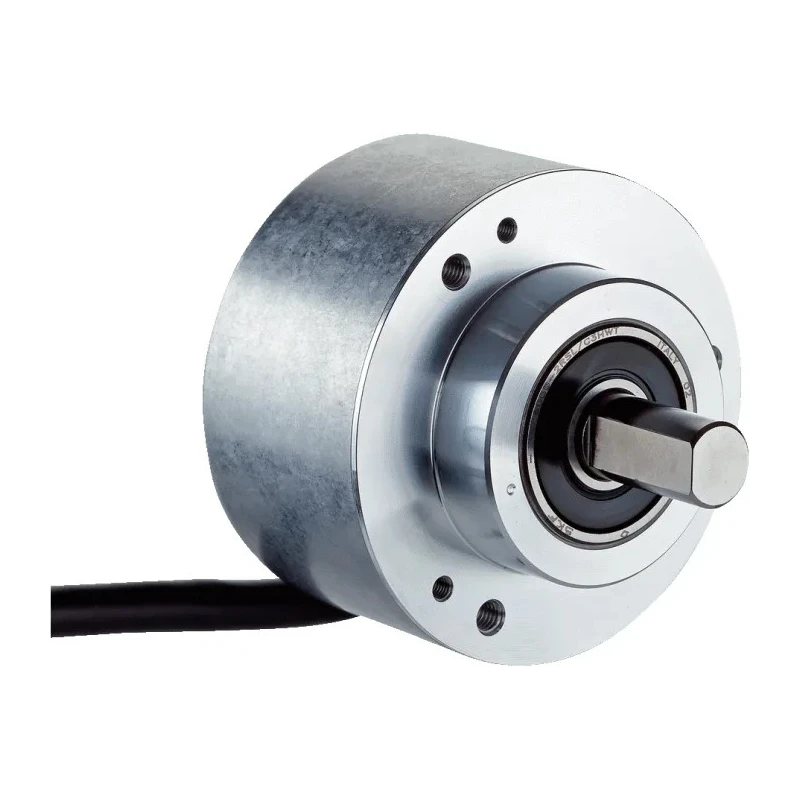

SICK DBS60 Core Series Incremental Encoder Solid Shaft 10 mm 30V TTL HTL 1024 PPR DBS60

Free Delivery in India | Lowest Global Shipping Charges

SICK DBS60 Core Series Incremental Encoder Solid Shaft 10 mm 30V TTL HTL 1024 PPR DBS60

Name: SICK DBS60 Core Series Incremental Encoder Solid Shaft 10 mm 30V TTL HTL 1024 PPR DBS60
Brand: SICK
SKU: 168691
Price: 367.94 USD
Availability: InStock



Category Incremental Encoder Brand SICK Condition New

Specifications

Country of Origin	Malaysia
Brand	SICK
Model	DBS60
IP Rating	IP65
Mount Type	Full Shaft
Series	DBS60 Core
Overall Width	58mm
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-30°C
Shaft Diameter	10mm
Overall height	58mm
Switching Frequency	300kHz
Shaft Type	Solid
Terminal type	Cable
Interface Type	HTL
Pulses per Revolution	1024ppr
Maximum Supply Voltage	30V
Overall Depth	44.35mm
Encoder Technology	Incremental
Maximum Revolutions	9000rpm
Output Signal Type	TTL, HTL

Key Features

Compact 58 mm diameter housing with 44.35 mm installation depth for space efficient mounting.
Supports a maximum rotational speed up to 9000 rpm ensuring responsive position tracking.
High resolution output of 1024 pulses per revolution for precision measurement.
Protective IP65 rating safeguards against dust and water ingress for reliability in industrial environments.
Outputs TTL and HTL signals compatible with a wide range of control systems.
Solid shaft construction with a 10 mm diameter for robust mechanical coupling.
Wide operating temperature range from -30°C to 100°C suitable for various environments.
Full shaft mount type with cable terminal interface for straightforward installation.

Product Description

SICK DBS60 Core Series Incremental Encoder model DBS60 features a durable solid shaft with 10 mm diameter, operating at 30V supply voltage. This encoder provides a high resolution of 1024 pulses per revolution with TTL and HTL signal outputs, ideal for precise position, speed, and distance measurement in industrial applications.

The compact 58 mm diameter housing and 44.35 mm depth enable installation in tight spaces while offering a rugged IP65 rated enclosure that protects against dust and water intrusion. The device supports rotational speeds up to 9000 rpm and operates reliably in temperatures ranging from -30°C to 100°C.

Designed to meet EN 61000-6-2 and EN 61000-6-3 standards, the encoder is suited for factory and logistics automation, including asynchronous motors, elevators, packaging machinery, and conveyor speed measurement. Its robust mechanical design includes a full shaft mount with cable terminal type and a switching frequency of 300 kHz for high-speed signal processing.

Compact 58 mm housing with 44.35 mm depth for space-saving mounting. 1024 pulses per revolution resolution for accurate measurements. IP65 rating ensures protection against dust and water. TTL and HTL output signal types compatible with diverse control systems.

Operating temperature range from -30°C to 100°C supports various environments. Solid shaft with 10 mm diameter for durability and mechanical strength. Full shaft mount and cable terminal interface for ease of installation.

Switching frequency of 300 kHz enabling high-speed switching performance. This Incremental Encoder is manufactured in Malaysia and is offered as a new product suitable for use in electronics, electrical, and industrial automation systems.
