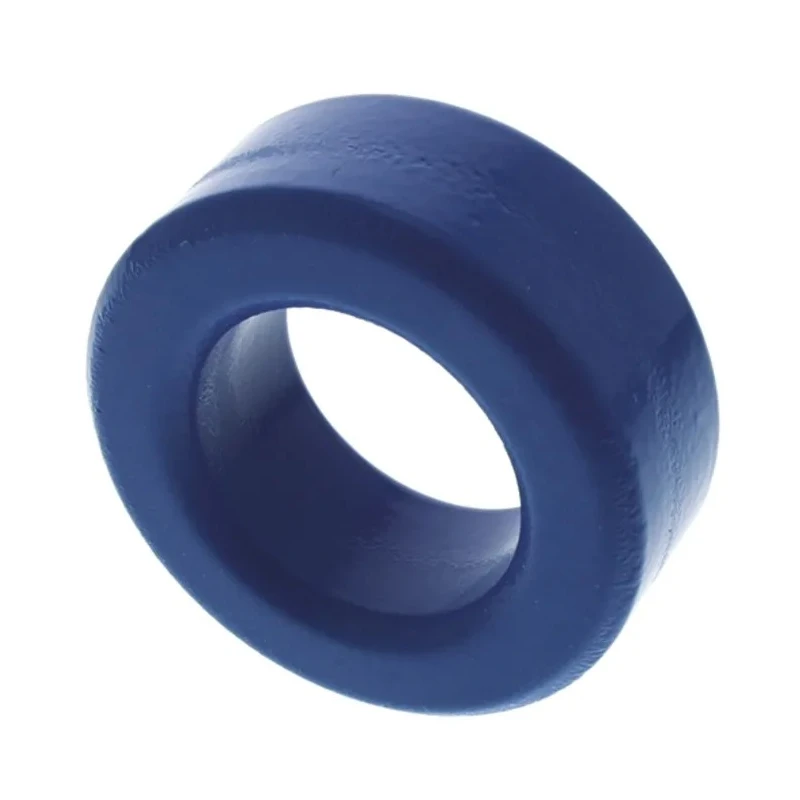

TDK Ferrite Ring Toroid Core 17.2 mm Height, 22.5 mm Inside Diameter, 41.8 mm Outside Diameter B64290L0659X830

TDK B64290L0659X830 Ferrite Ring Toroid Core features a 17.2 mm height, 22.5 mm inside diameter, and 41.8 mm outside diameter designed for electronic components use.

Manufactured from N30 ferrite material, this core is coated with polyamide or epoxy resin, offering superior insulation and robust protection of the edges to enhance longevity and reliability.

This toroid core is ideally suited for use in mixers, broadband transformers, pulse transformers, and chokes, making it a versatile component in various electronic assemblies and power applications.

RoHS compliant, it meets environmental safety requirements while providing the necessary magnetic characteristics important for efficient electromagnetic interference suppression and signal clarity.

The B64290L0659X830 core's design ensures minimal losses and stable performance under operating conditions typical in industrial and commercial electronics settings. Constructed from high-grade N30 ferrite material. Coated with epoxy or polyamide resin for insulation and edge protection.

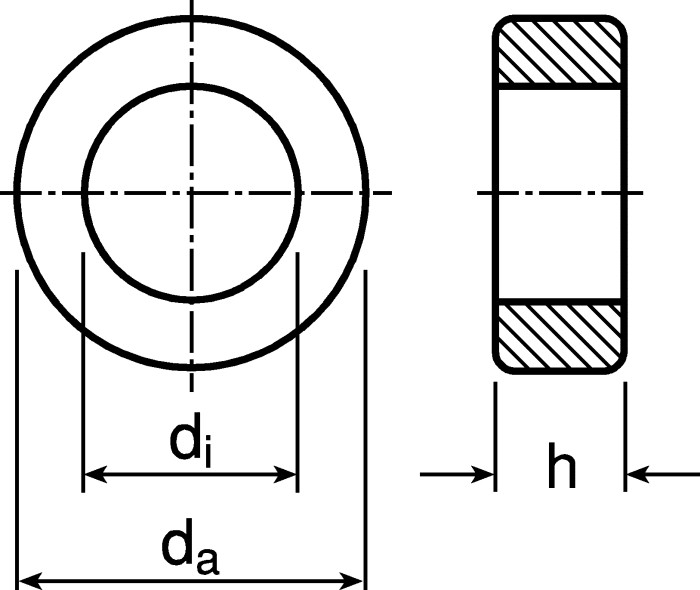

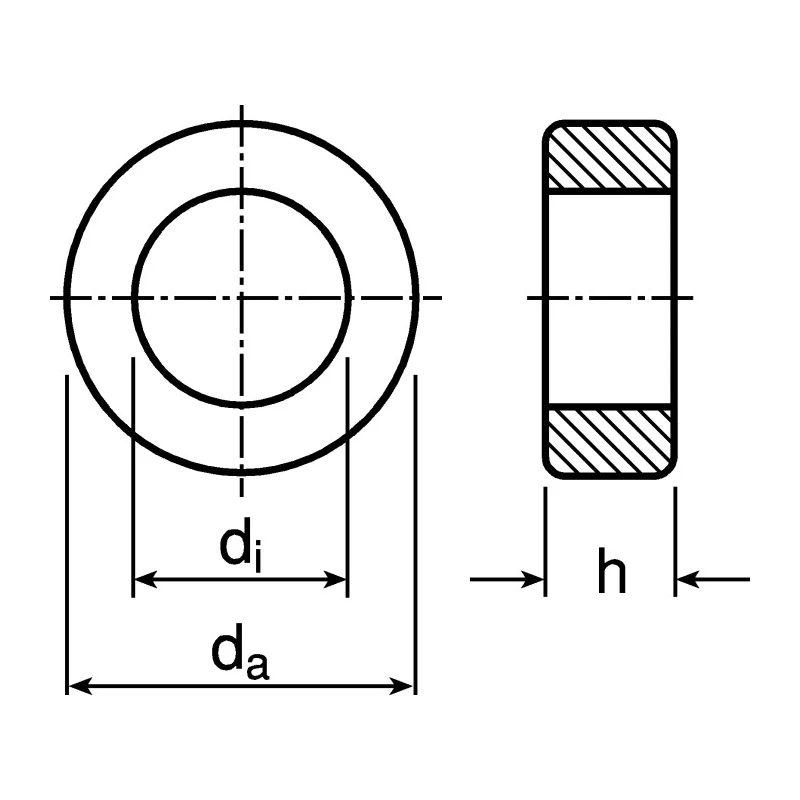

Dimensions precisely controlled: 17.2 mm height, 22.5 mm inside diameter, 41.8 mm outside diameter. Applications include chokes, broadband transformers, pulse transformers, and baluns. RoHS compliant, ensuring eco-friendly manufacturing standards.

Suitable for industrial, laboratory, and electronic manufacturing environments. Enhances electromagnetic interference reduction and signal integrity.

This TDK ferrite ring toroid core is a reliable component for engineers and manufacturers requiring consistent and efficient magnetic performance. Browse our Electronics Components category at EnvMart for compatible Ferrite Rings and transformer parts.
