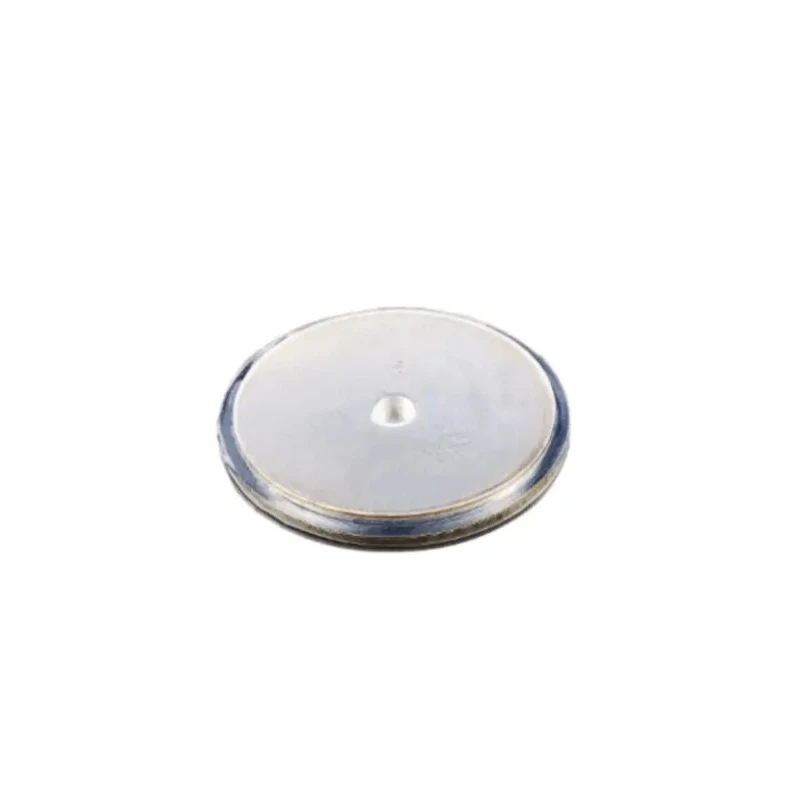

Infineon General Purpose Rectifier Diode 600 V 5140 A Surface Mount DO-200AC 2-Pin 38DN06B02ELEMXPSA1

Name: Infineon General Purpose Rectifier Diode 600 V 5140 A Surface Mount DO-200AC 2-Pin 38DN06B02ELEMXPSA1
Brand: Infineon
SKU: 168112
Price: 264.61 USD
Availability: InStock



Category Rectifier Diode Brand Infineon Condition New

Specifications

Country of Origin	India
Diameter	38mm
Brand	Infineon
Height	4mm
Model	38DN06B02ELEMXPSA1
Mount Type	Surface
Series	38DN06B02
Maximum Operating Temperature	180°C
Package Type	DO-200AC
Minimum Operating Temperature	-40°C
Pin Count	2
Maximum Continuous Forward Current If	5140A
Peak Reverse Repetitive Voltage Vrrm	600V
Diode Configuration	Common Anode
Rectifier Type	General Purpose
Peak Reverse Current Ir	50mA
Peak Non-Repetitive Forward Surge Current Ifsm	37400A
Maximum Forward Voltage Vf	0.96V

Key Features

High maximum continuous forward current of 5140 A supports demanding industrial applications.
Common anode diode configuration for versatile circuit integration.
Maximum forward voltage of 0.96 V reduces power loss and enhances efficiency.
Wide operating temperature range from -40°C to 180°C ensures reliability in harsh environments.
Peak non-repetitive forward surge current of 37400 A supports transient power demands.
38 mm diameter and 4 mm height package designed for welding diode applications.
Designed for medium frequency resistance welding and high current rectifier uses.
High power cycling capability and excellent loss optimization offer superior durability.

Product Description

Infineon 38DN06B02ELEMXPSA1 General Purpose Rectifier Diode provides a robust 600 V peak reverse repetitive voltage and continuous forward current rating of 5140 A. Packaged in a 2-pin DO-200AC surface mount configuration, this diode is optimized for high power applications such as medium frequency resistance welding and high current rectifier circuits.

This welding diode features a housing-less design with a 38 mm diameter and 4 mm height, offering improved losses and high efficiency. Its low on-state voltage of 0.96 V allows sustained high forward currents, up to approximately 5.8 kA continuously which is 25% higher than comparable previous models.

With a broad operating temperature range from -40°C to 180°C, it is engineered for demanding industrial environments. The diode includes a peak non-repetitive forward surge current rating of 37400 A, ensuring capability under transient peak loads. Its common anode configuration supports versatile circuit design needs.

High maximum continuous forward current of 5140 A supports demanding industrial applications. Common anode diode configuration for versatile circuit integration. Maximum forward voltage of 0.96 V reduces power loss and enhances efficiency.

Wide operating temperature range from -40°C to 180°C ensures reliability in harsh environments. Peak non-repetitive forward surge current of 37400 A supports transient power demands. 38 mm diameter and 4 mm height package designed for welding diode applications.

Designed for medium frequency resistance welding and high current rectifier uses. High power cycling capability and excellent loss optimization offer superior durability. Surface mount DO-200AC package type ensures ease of PCB integration.

This diode is ideal for industrial, manufacturing, and electrical applications requiring high current rectification and reliability. Its robust construction and optimized electrical properties make it suitable for automated welding systems and power rectifier designs in heavy-duty environments.
