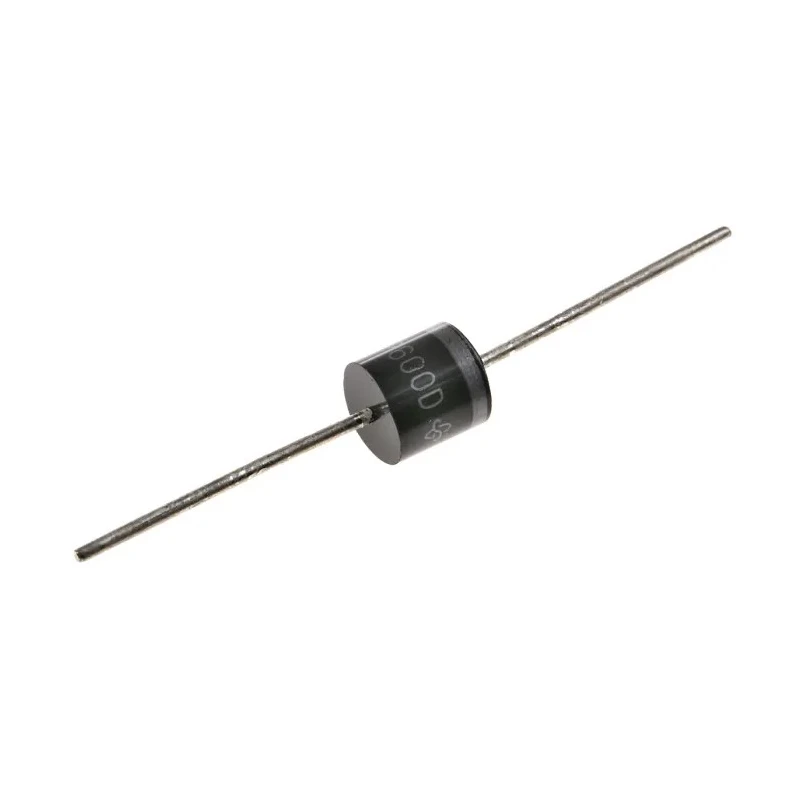

Vishay General Purpose Rectifier Diode 200 V 6 A Through Hole P600 Package P600D-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | P600D-E3/54 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | P600D |
| Maximum Operating Temperature | 150°C |
| Case | P600, void-free molded epoxy body |
| Package Type | P600 |
| Minimum Operating Temperature | -50°C |
| Polarity | Color band denotes cathode end |
| Terminals | Matte tin plated leads, solderable per |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 6A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 2.5μs |
| RECTIFIER DIODE P600DBrand | Vishay |
| Rectifier diode,P600D 6A 200VBrand | Vishay |
| Vishay 200V 22A, Silicon Junction Diode, 2-Pin P600 P600DBrand | Vishay |
Key Features
- Suitable for general purpose rectification in power supplies and inverters.
- Low forward voltage drop ensures energy efficiency.
- High forward surge and current capability for robust operation.
- Matte tin plated leads allow reliable soldering.
- Compact P600 epoxy package with 9.1mm dimensions in all directions.
- Operating junction temperature range from -50°C to +150°C.
- Color band denotes cathode polarity for easy identification.
- Complies with RoHS and UL 94 V-0 flammability standards.
Product Description
The Vishay P600D-E3/54 is a general purpose Rectifier Diode designed for reliable power supply, inverter, and converter rectification. Housed in a P600 epoxy package, this diode supports a maximum continuous forward current of 6 A and a peak reverse voltage of 200 V, making it well-suited for various industrial and commercial electronic applications.
Featuring low forward voltage drop and minimal leakage current, the P600D diode enhances circuit efficiency and thermal performance. It also withstands high forward surge currents up to 400 A, ensuring durability under transient conditions.
The diode's body is made from void-free molded epoxy that complies with UL 94 V-0 flammability standards. The terminals are matte tin plated leads solderable according to J-STD-002 and JESD 22-B102 standards. This product carries the RoHS compliance marking.
Operating temperature ranges from -50°C to +150°C make it reliable across demanding thermal environments. The color band marking denotes the cathode end, allowing accurate polarity installation.
Widely used in industrial, automotive, manufacturing, and power electronics sectors, the P600D diode supports efficient rectification tasks and surge handling capabilities in discrete semiconductor circuits.
Suitable for power supplies, inverters, converters, and freewheeling diode applications. Constructed with a robust P600 epoxy case for mechanical and electrical performance. Compliant with commercial-grade RoHS directives and JESD 201 class 1A whisker test.
E3 suffix indicates RoHS compliance and high reliability standards. Compact diode with uniform 9.1mm package dimensions enhances PCB layout optimization. Explore the Vishay range of semiconductor diodes on EnvMart for comprehensive industrial electronics solutions.
