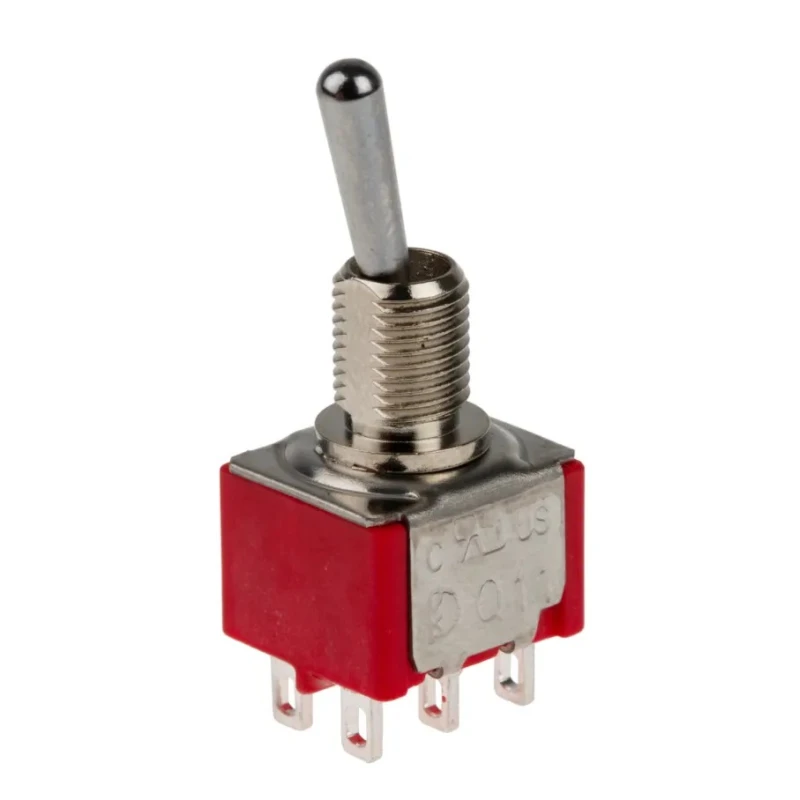

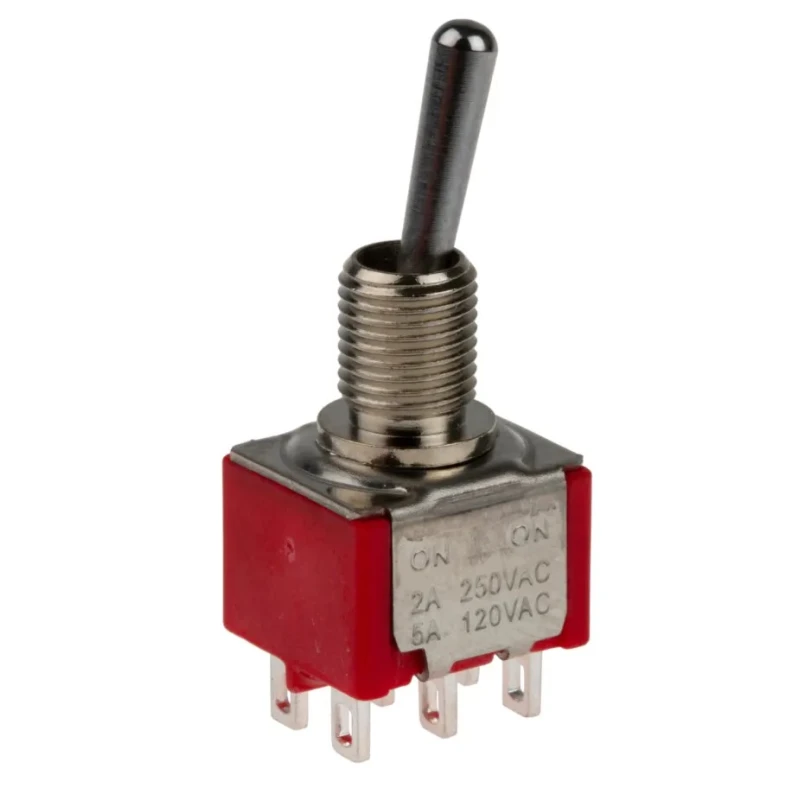

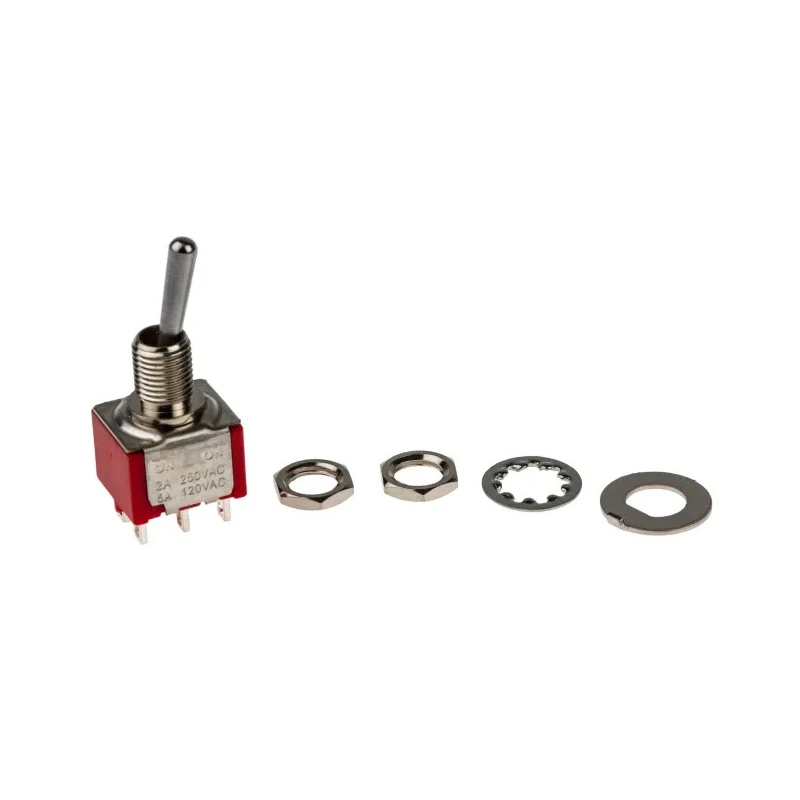

RS PRO Toggle Switch Panel Mount On-None-On DPDT 5A Solder Lug Terminal IP67 209-9347
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 32.15mm |
| Length | 12.7mm |
| Model | 209-9347 |
| IP Rating | IP67 |
| Width | 11.43mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder Lug |
| Standards/Approvals | RoHS 2011/65/EU & 2015/863 |
| Switch Operation | On-None-On |
| Switch Contact Current | 5A |
| Actuator Material | Chrome Plated Brass |
Key Features
- Panel mount design ensures easy installation in control panels.
- Double Pole Double Throw (DPDT) configuration offers versatile switching options.
- Solder lug terminals provide secure electrical connections.
- High ingress protection of IP67 makes it suitable for harsh environments.
- Operating temperature range from -40°C to 85°C for wide application use.
- Chrome plated brass actuator material ensures durability and longevity.
- Mechanical life expectancy of 40,000 make-and-break cycles.
- Complies with RoHS 2011/65/EU & 2015/863 standards.
Product Description
RS PRO 209-9347 Toggle Switch is a robust industrial panel mount switch featuring an On-None-On DPDT configuration with a 5A contact rating. Designed with solder lug terminals, it offers reliable and secure electrical connections with the ability for dual circuit control.
The device boasts IP67 ingress protection, making it waterproof and dust-tight - suitable for demanding industrial, telecommunications, and automation applications. It operates within a broad temperature range from -40°C to 85°C, supporting diverse environmental conditions.
Its actuator is made of chrome plated brass, combining durability with an attractive finish. The compact size of 12.7mm length, 11.43mm width, and 32.15mm height allows for space-efficient panel mounting. The switch has an expected mechanical life of 40,000 make-and-break cycles, ensuring long-term reliable performance.
This toggle switch meets RoHS 2011/65/EU & 2015/863 standards, guaranteeing compliance with environmental regulations. Typical applications include industrial control systems, telecommunications equipment, instrumentation shutdown switches, marine and elevator control panels, security devices, and medical equipment such as motor controls for wheelchairs.
The DPDT configuration with six silver-plated copper alloy terminals (two inputs and four outputs) allows complex switching operations with On-None-On switching for flexible circuit control. This product is an essential component for controlling electrical flows in diverse commercial, laboratory, manufacturing, HVAC, and construction settings.
Panel mount design ensures easy installation in control panels. Double Pole Double Throw (DPDT) configuration offers versatile switching options. Solder lug terminals provide secure electrical connections. High ingress protection of IP67 makes it suitable for harsh environments.
Operating temperature range from -40°C to 85°C for wide application use. Chrome plated brass actuator material ensures durability and longevity. Compact dimensions: length 12.7mm, width 11.43mm, height 32.15mm. Mechanical life expectancy of 40,000 make-and-break cycles.
Complies with RoHS 2011/65/EU & 2015/863 standards. Ideal for industrial controls, telecommunications, instrumentation, and security systems. Explore more electrical switches and Toggle Switch components at EnvMart for comprehensive industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching options.
The maximum operating temperature for this toggle switch is 85°C, making it suitable for a variety of applications.
It has an IP67 ingress protection rating, indicating it is both waterproof and dust-tight, suitable for harsh environments.
The dimensions of this model are 12.7mm in length, 11.43mm in width, and 32.15mm in height.
It is equipped with solder lug terminals, which provide secure electrical connections.
This toggle switch has a mechanical life expectancy of 40,000 make-and-break cycles, ensuring long-term performance.
The minimum operating temperature for this model is -40°C, allowing it to function in extreme conditions.
It complies with RoHS 2011/65/EU and 2015/863 standards, ensuring it meets environmental regulations.
The actuator is made from chrome plated brass, which combines durability with an attractive finish.
Typical applications include industrial control systems, telecommunications equipment, instrumentation shutdown switches, and marine control panels.
It features a panel mount design, ensuring easy installation in control panels.
The switch has a contact current rating of 5A, suitable for various electrical applications.
