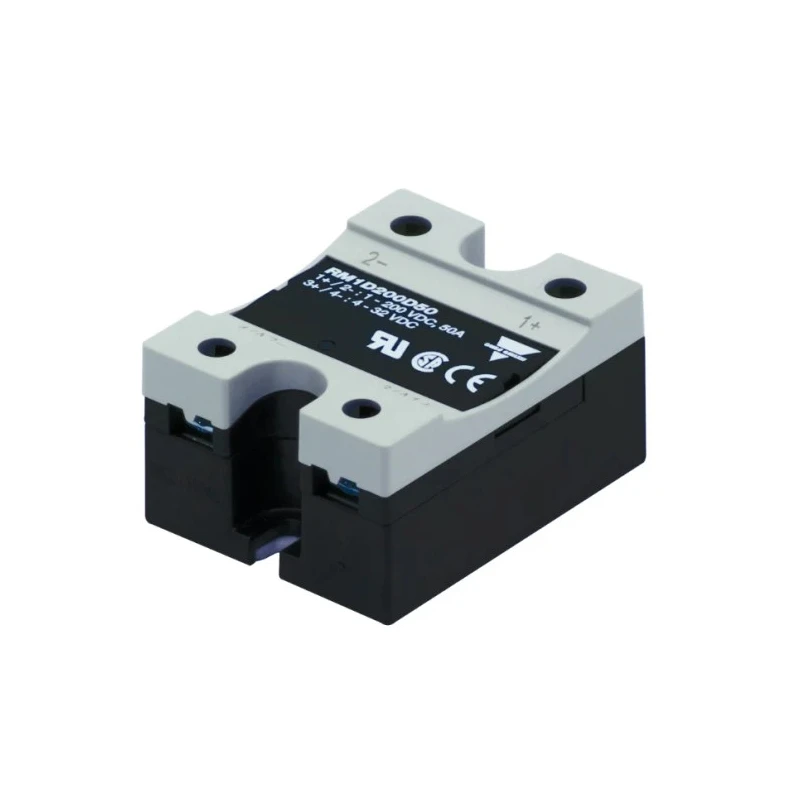

Carlo Gavazzi Solid State Relay Panel Mount 60 V DC Load 100 A MOSFET Output RM1D

Free Delivery in India | Lowest Global Shipping Charges

Carlo Gavazzi Solid State Relay Panel Mount 60 V DC Load 100 A MOSFET Output RM1D

Name: Carlo Gavazzi Solid State Relay Panel Mount 60 V DC Load 100 A MOSFET Output RM1D
Brand: Carlo Gavazzi
SKU: 167582
Price: 180.92 USD
Availability: InStock



Category Solid State Relay Brand Carlo Gavazzi Condition New

Specifications

Country of Origin	China
Brand	Carlo Gavazzi
Height	29.5mm
Length	58.2mm
Model	RM1D
IP Rating	IP20
Width	44.8mm
Mount Type	Panel
Output type	MOSFET
Series	RM1D
Maximum Operating Temperature	80°C
Contact Configuration	SPST
Minimum Operating Temperature	-20°C
Terminal type	Self-Lifting Terminal
Switching Function	DC Switching
Maximum Load Current	100A
Standards/Approvals	CE, CSA, cUR, EMCD, LVD, RoHS, UL, UR
Maximum Load Voltage	60V dc
Minimum Load Voltage	1V ac/dc
Minimum Control Voltage	4V
Maximum Control Voltage	32V
Max. rated current (with heatsink)	100ADC

Key Features

Supports a maximum load current of 100 A with a maximum voltage of 60 V DC.
Features MOSFET output type enabling low power dissipation.
Panel mount design with self-lifting terminals provides easy installation and maintenance.
LED indicator displays control voltage presence for operational status.
Operating temperature ranges from -20°C to 80°C ensuring durable performance.
Switching frequency supports up to 1000 Hz for fast switching response.
Contact configuration is Single Pole Single Throw (SPST) suitable for DC switching tasks.
Complies with international standards including CE, CSA, UL, and RoHS ensuring safety and quality.

Product Description

Carlo Gavazzi RM1D060D100 Solid State Relay is engineered for industrial and automation applications requiring high current switching in DC circuits. This panel mount relay supports a maximum load current of 100 A at up to 60 V DC, making it suitable for power regulation and control in manufacturing, HVAC systems, and motor controls.

Featuring a MOSFET output stage, the relay ensures low power dissipation and efficient operation at switching frequencies up to 1000 Hz. The built-in LED indicator provides clear visual confirmation of control voltage presence, facilitating easier diagnostics and monitoring.

Its robust design includes self-lifting terminals for secure electrical connections and an IP20 rated enclosure suitable for panel integration. Operating reliably within a temperature range from -20°C to 80°C, the RM1D060D100 ensures durability even in demanding environments.

Compact with dimensions of 58.2 mm (length), 44.8 mm (width), and 29.5 mm (height), this relay saves panel space without compromising functionality. It meets stringent safety and environmental standards such as CE, CSA, UL, cUR, RoHS, EMCD, and LVD, guaranteeing compliance with international requirements.

Supports 100 A maximum load current at 60 V DC supply voltage. MOSFET output for low power dissipation and high efficiency. Designed for panel mount applications with self-lifting terminals. LED control voltage indicator for easy status monitoring.

Operates reliably in temperatures from -20°C to 80°C. High switching frequency capacity up to 1000 Hz. Compact size allows efficient use of panel space. IP20 rated for protection against solid object ingress. Compliant with multiple international safety and quality standards.

Ideal for use in industrial, automation, HVAC, and manufacturing systems.

Choose the Carlo Gavazzi RM1D060D100 for reliable and efficient DC switching solutions. Explore more Solid State Relays and automation components at EnvMart for industrial and commercial applications.
