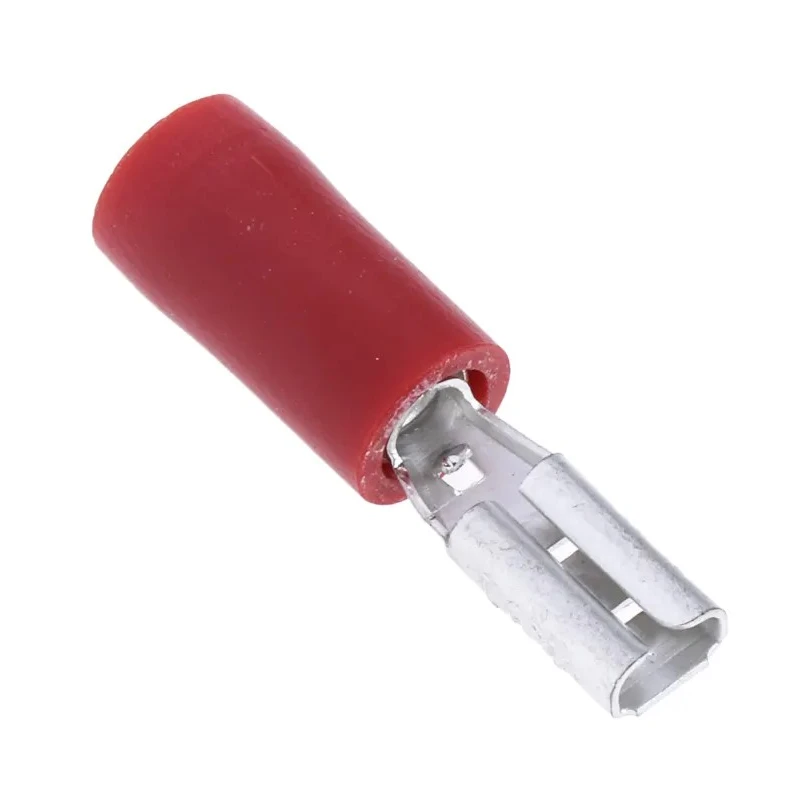

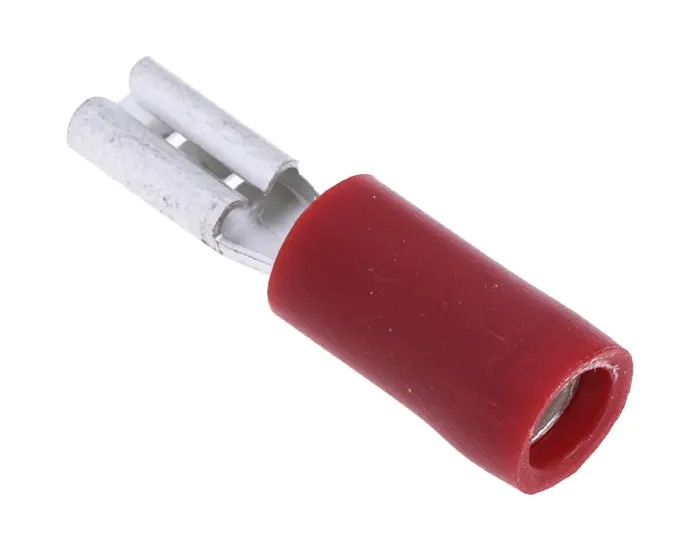

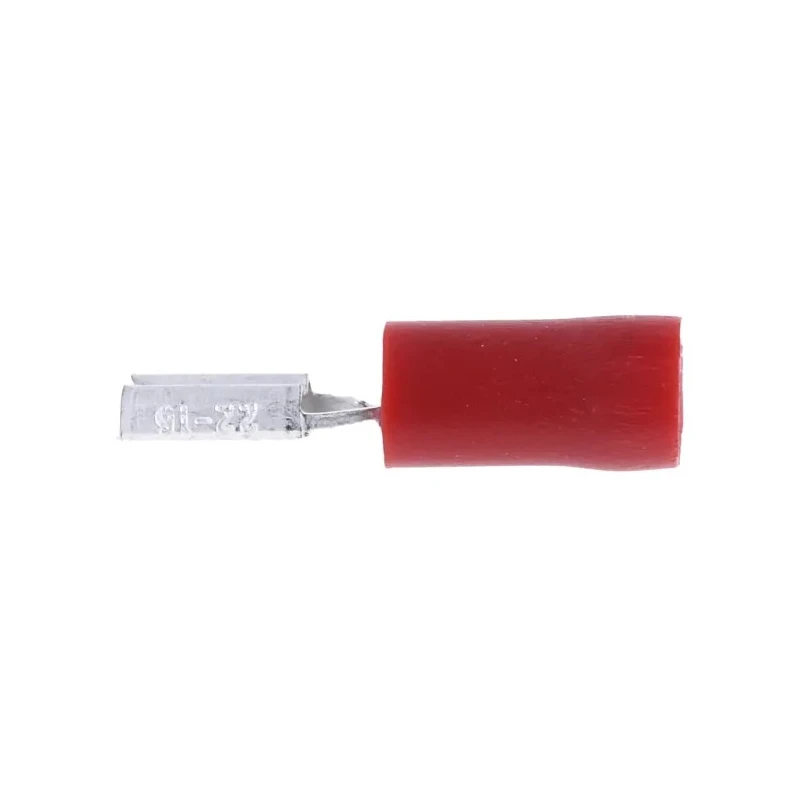

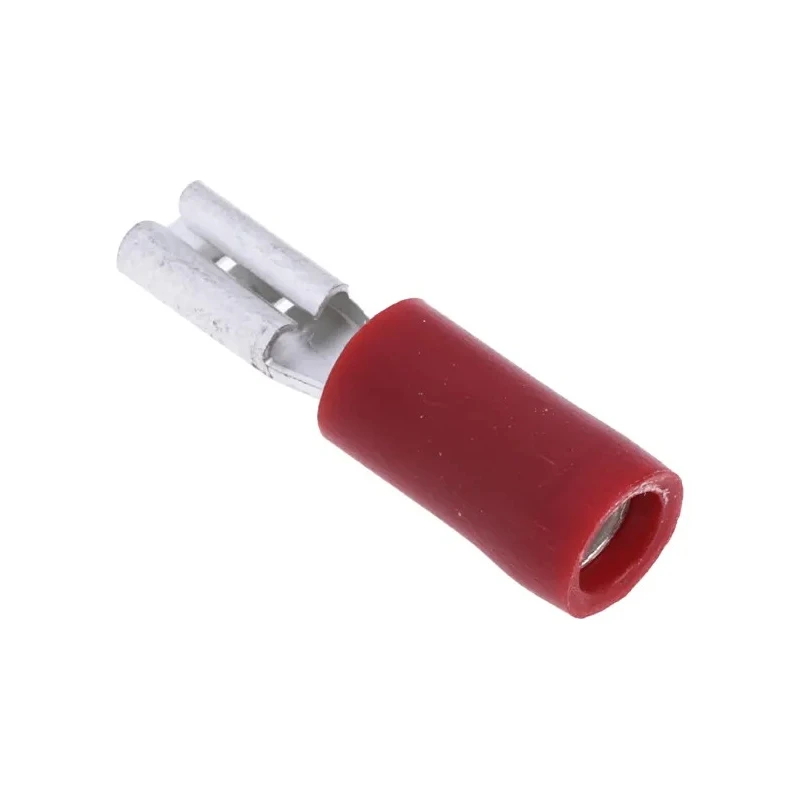

RS PRO Red Insulated Female Spade Connector Crimp 2.8 x 0.8 mm Tab Size 22 AWG to 16 AWG 534-345

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Red Insulated Female Spade Connector Crimp 2.8 x 0.8 mm Tab Size 22 AWG to 16 AWG 534-345

Name: RS PRO Red Insulated Female Spade Connector Crimp 2.8 x 0.8 mm Tab Size 22 AWG to 16 AWG 534-345
Brand: RS PRO
SKU: 167347
Price: 0.17 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
Orientation	Straight
Model	534-345
Gender	Female
Insulation	Insulated
Overall Length	19mm
Contact Material	Brass
Series	RS PRO
Termination Type	Crimp
Insulation Material	Vinyl
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Tab Width	2.8mm
Tab Thickness	0.8mm
Tab Size	2.8 x 0.8 mm
CRIMP CONNS RECPTCLE 0.11Brand	NEUTRAL

Key Features

Crimp style termination ensures a secure and robust wire connection.
Red vinyl insulation offers electrical shock protection and easy wire gauge identification.
The connector fits tab size of 2.8 x 0.8 mm compatible with 22 AWG to 16 AWG wires.
Constructed from tin plated brass for excellent conductivity and corrosion resistance.
Double crimp design with internal copper sleeve strengthens the crimp joint against stress and vibration.
Straight orientation facilitates easy mating with male tab connectors.
Ideal for industrial, automotive, HVAC, and consumer appliance applications.
Overall length of 19 mm suitable for compact wiring assemblies.

Product Description

RS PRO 534-345 Red Insulated Female Spade Connector is a crimp termination type connector designed for quick and secure electrical connections with a tab size of 2.8 x 0.8 mm, and wire size compatibility ranging from 22 AWG to 16 AWG. It features a red vinyl insulated body to prevent electrical shock and contamination from grease or liquids.

Manufactured from tin plated brass with an internal copper sleeve, the connector offers excellent conductivity, corrosion resistance, and robust mechanical strength. The double crimp barrel design enhances the integrity of the wire termination, making it highly resistant to vibration and stress commonly found in automotive and industrial environments.

This female Spade Connector provides a fast disconnect solution when mated with corresponding male tab connectors, making wiring assemblies efficient and reliable without requiring soldering. The colored insulation matches wire gauges for easy identification during installation or maintenance.

Typical applications include industrial control systems, automotive wiring harnesses, communication equipment, power supplies, HVAC systems, and consumer appliances such as dishwashers and washing machines.

The connector’s straight orientation and overall length of 19 mm enable compact, organized wiring layouts. Crimp tooling compatible with stock number 534-812 is recommended for optimal installation.

Crimp termination ensures secure wire connection without soldering. Red vinyl insulation provides electrical shock protection and wire gauge identification. Tinned brass with copper sleeve improves conductivity and mechanical strength.

Design resists vibration and stress for durable performance. Compatible with 22 AWG to 16 AWG wires for versatile use. Ideal for industrial, automotive, HVAC, and domestic appliance wiring. Compact size supports efficient space utilization in wiring harnesses.

Explore a wide range of connectors with RS PRO on EnvMart for reliable electrical connectivity solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is compatible with wire sizes ranging from 22 AWG to 16 AWG, with a minimum wire size of 0.5 mm² and a maximum of 1.5 mm².

The connector features a tab size of 2.8 x 0.8 mm, which allows for secure mating with corresponding male tab connectors.

It is constructed from tin plated brass for excellent conductivity and corrosion resistance, and features an internal copper sleeve for enhanced mechanical strength.

The overall length of this model is 19 mm, which is suitable for compact wiring assemblies.

The crimp termination ensures a secure wire connection without the need for soldering, providing a fast disconnect solution when mated with male tab connectors.

It features red vinyl insulation that provides electrical shock protection and aids in easy wire gauge identification during installation.

This model has a straight orientation, which facilitates easy mating with male tab connectors.

The connector features a double crimp barrel design with an internal copper sleeve, which enhances the integrity of the wire termination against stress and vibration.

The connector is manufactured in Taiwan.

The contact plating is made of tin, which contributes to its conductivity and corrosion resistance.

Yes, crimp tooling compatible with stock number 534-812 is recommended for optimal installation of this connector.
