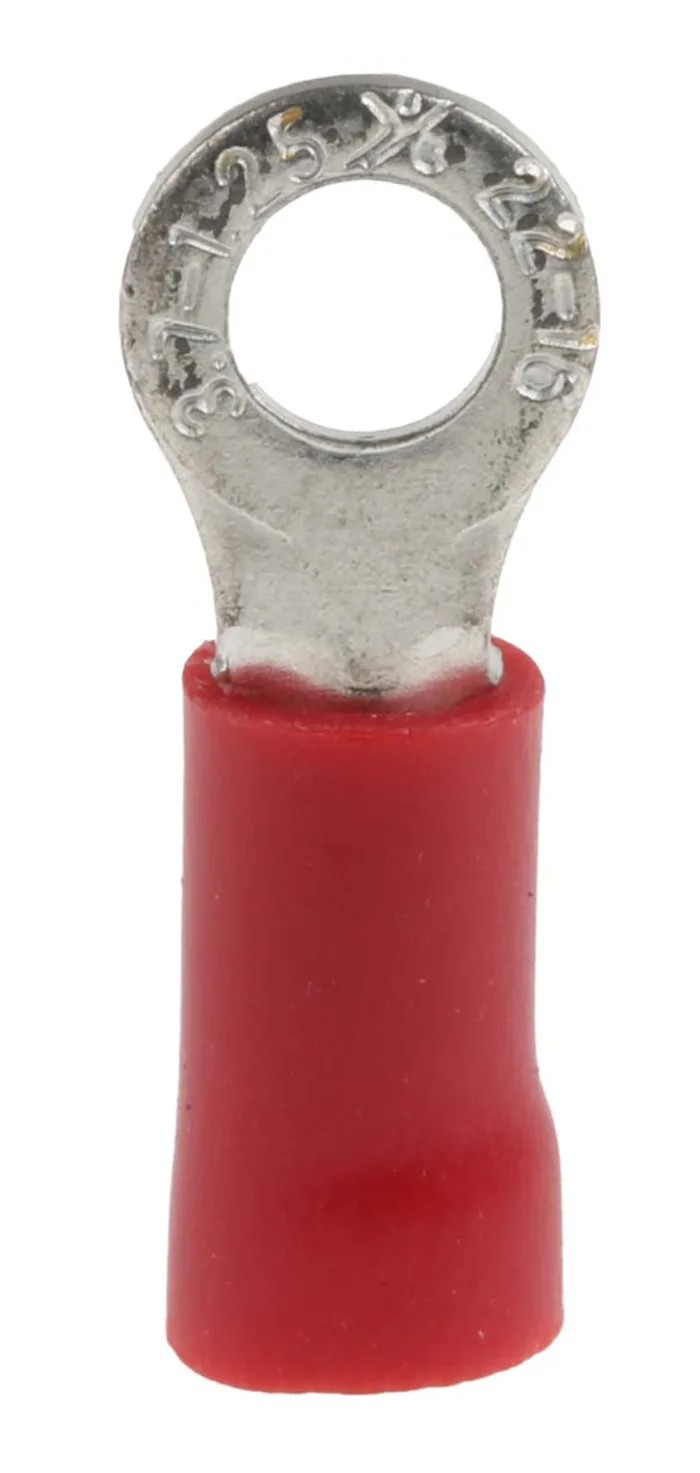

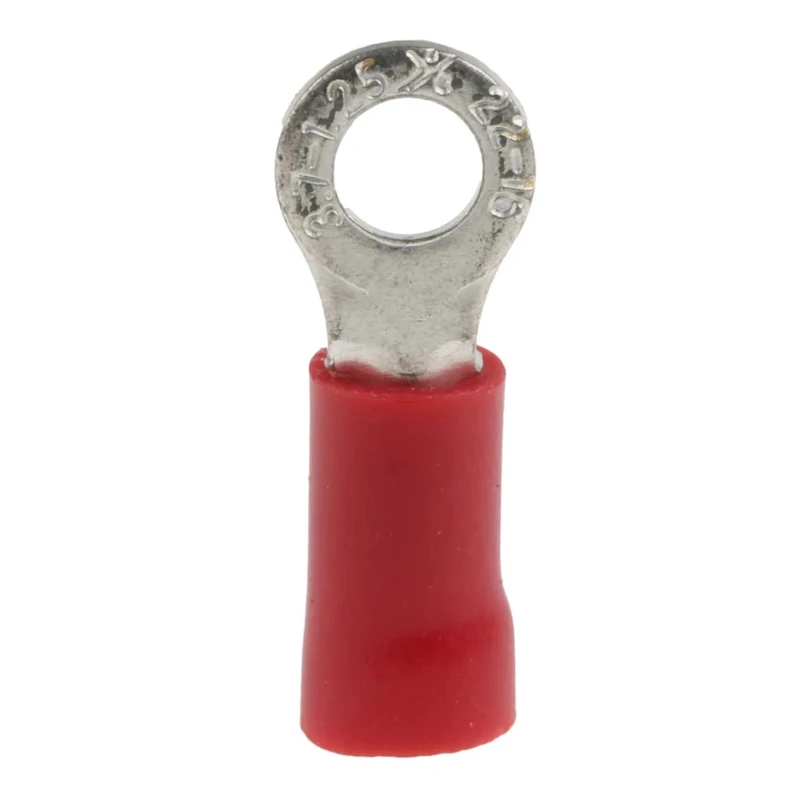

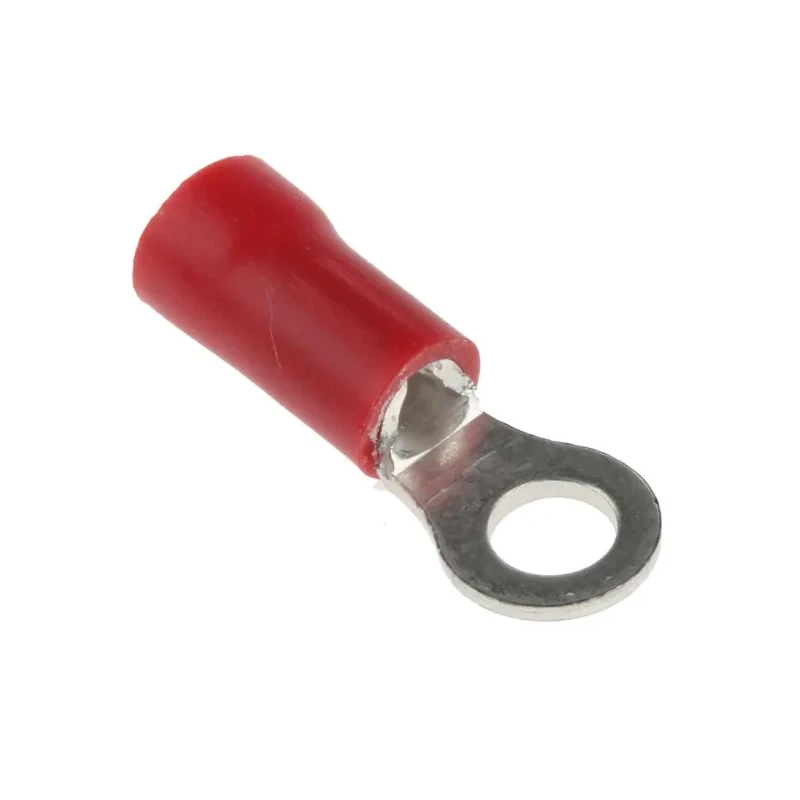

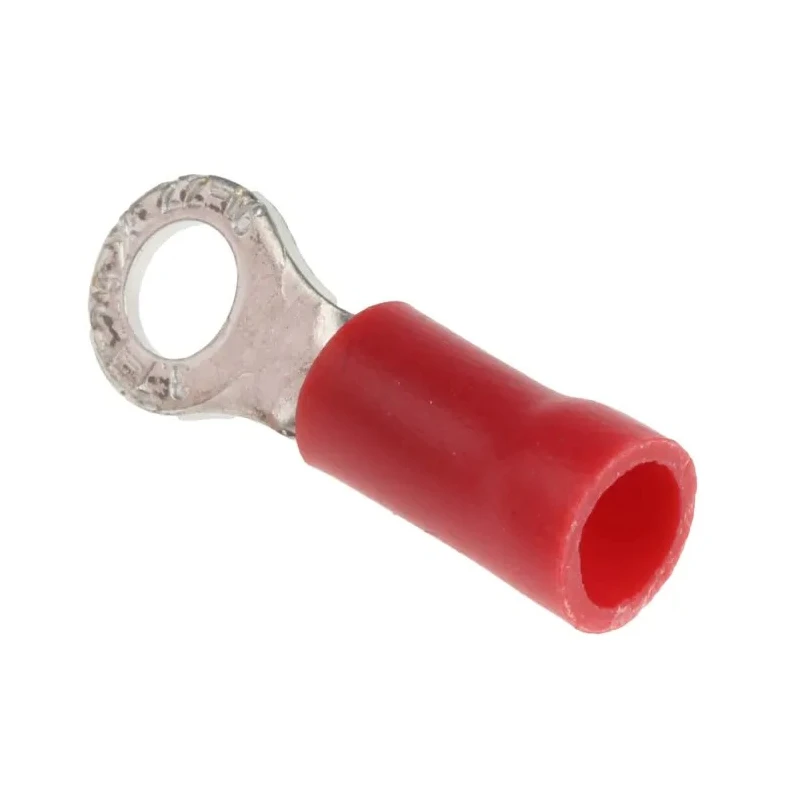

RS PRO Insulated Ring Terminal M3.5 Stud Size 22 AWG to 16 AWG Copper Tin Plated PVC Insulation Red 534-222

RS PRO 534-222 insulated ring terminal is designed for secure electrical connections in various industrial and electronic applications. Featuring a highly conductive copper body with tin plating, this terminal ensures excellent conductivity and resistance to corrosion, providing durability and reliable performance. The ring terminal is insulated with red polyvinyl chloride (PVC) vinyl, offering electrical insulation and protection while aiding quick size identification.

This ring terminal supports wire gauges from 22 AWG to 16 AWG (0.5mm² to 1.5mm²), accommodating a range of wiring needs. The stud size of M3.5 and precise outer and inner ring diameters (6.6mm and 3.7mm respectively) make it compatible with corresponding electrical components. The 19.6mm overall length and 0.8mm thickness contribute to its mechanical robustness.

Its maximum operating temperature of 75°C ensures resilience under typical electrical system conditions. With an expanded insulation entry, the terminal facilitates easy and secure wire insertion before crimping, reducing installation errors and enhancing connection stability.

RS PRO insulated ring terminals find extensive application in industrial control systems, automotive wiring harnesses, communication equipment setups, power supply units, and domestic electrical appliances. They are essential for creating reliable electrical connections between wires and stud-type components or battery terminals.

The package contains quality-tested Ring Terminals made in Taiwan, Province Of China, designed to meet professional electrical and industrial standards. For enhanced crimping performance, use with the RS PRO Vinyl Insulated Crimp tool, stock number 533-279.

Copper contact material provides high conductivity and mechanical strength. Tin plating ensures corrosion resistance and improved electrical connections. Red PVC insulation offers effective electrical protection and easy size identification.

Compatible with wire sizes 22 AWG to 16 AWG and stud size M3.5. Robust design with 19.6mm length and 0.8mm contact thickness. Operates safely up to 75°C temperature. Ideal for industrial, automotive, communication, and domestic electrical applications.

Expanded insulation entry enables easy wire insertion and crimping. Discover more products in the Wire Terminals & Splices category on EnvMart for your electrical connector needs.
