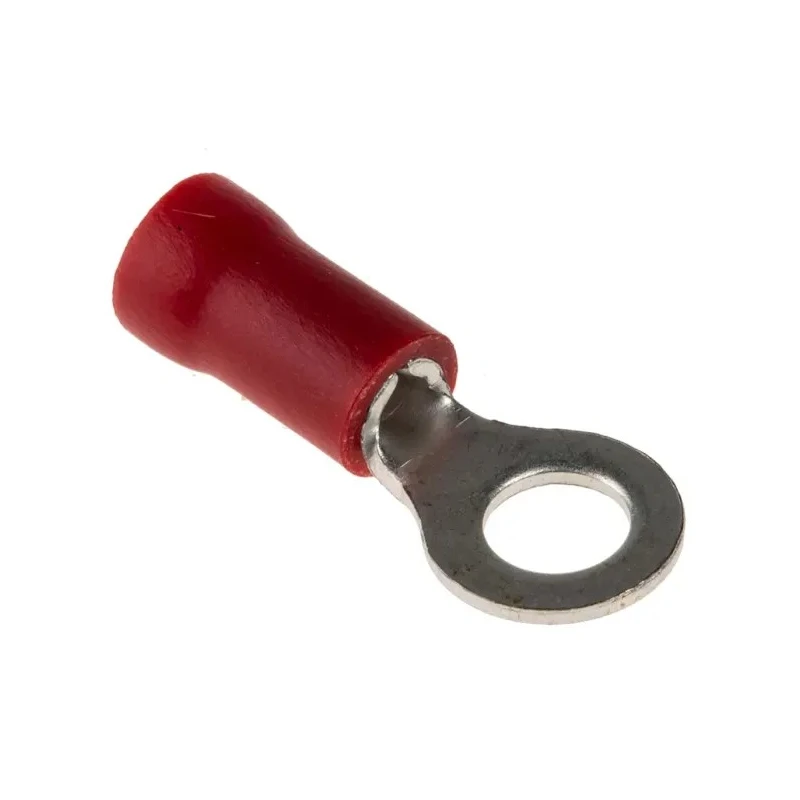

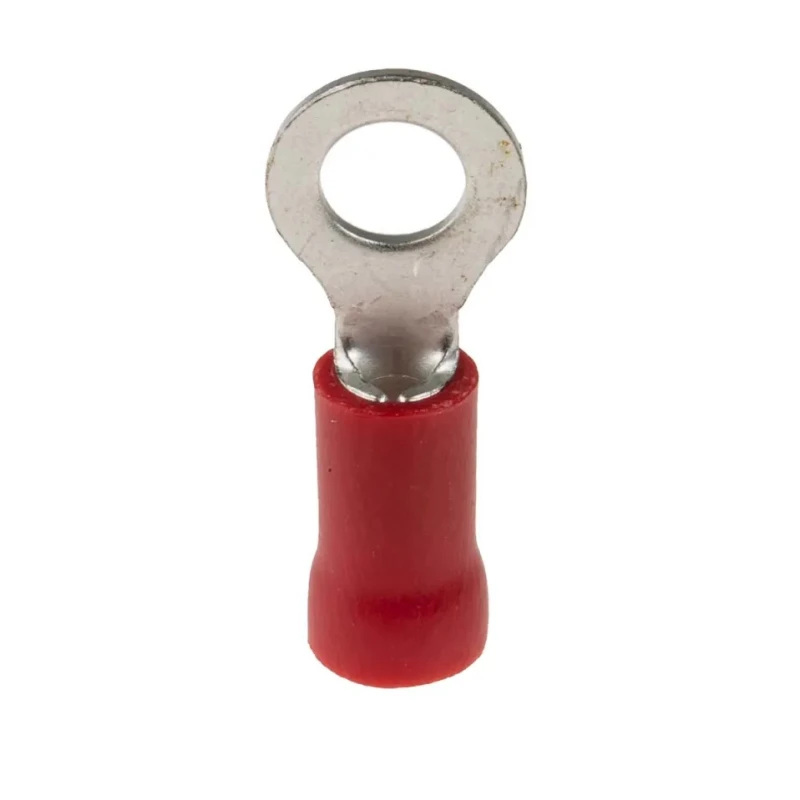

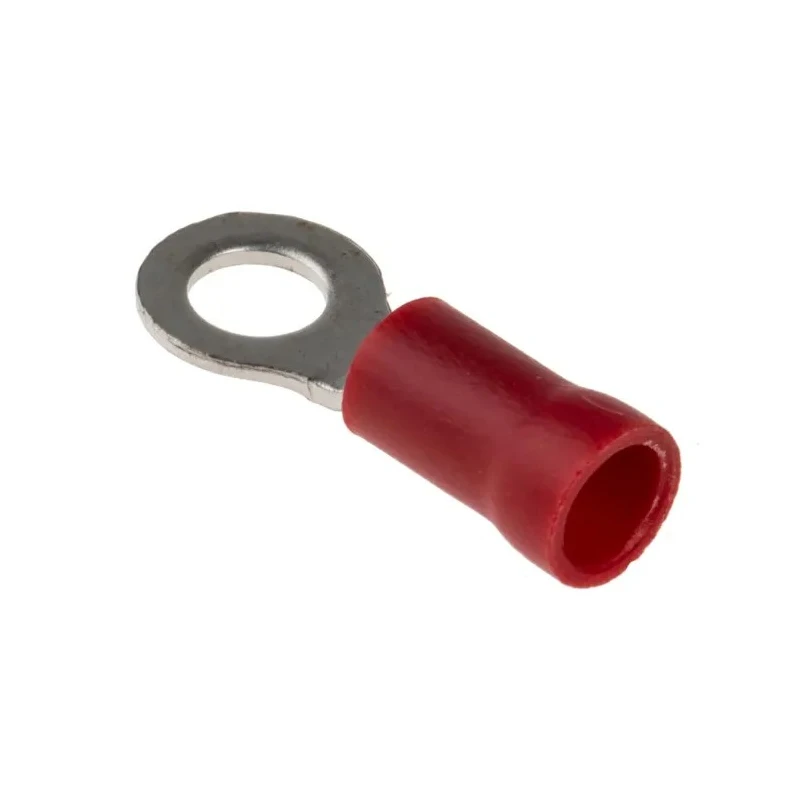

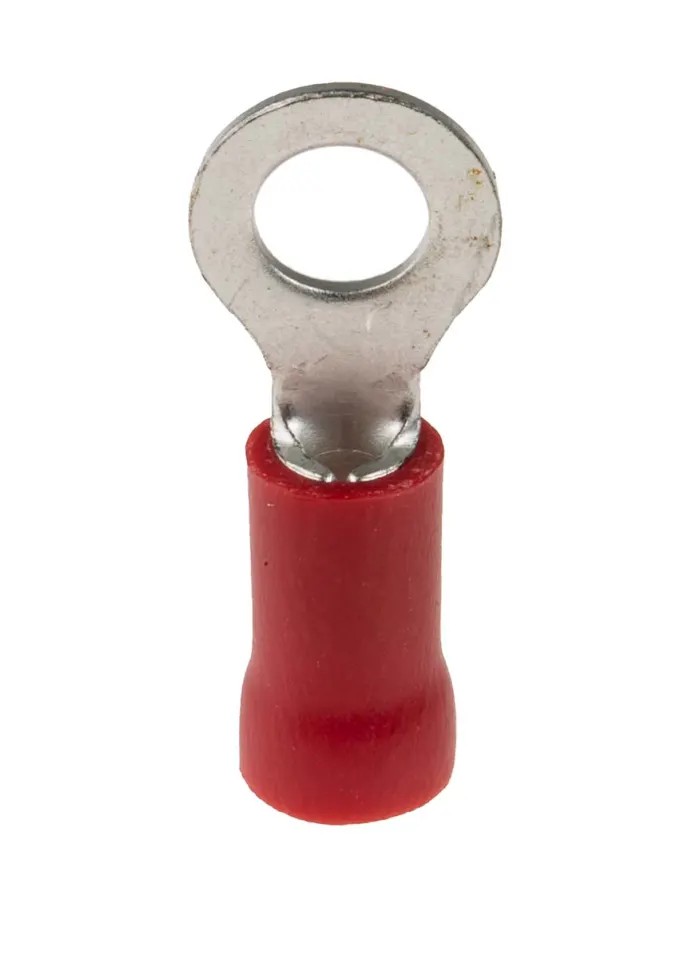

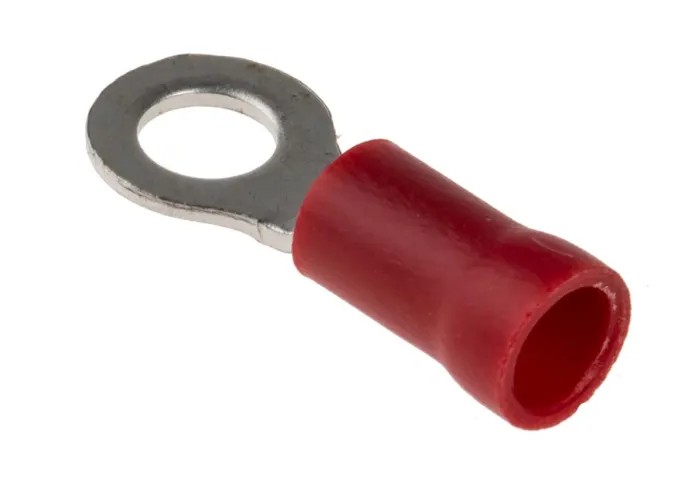

RS PRO Insulated Ring Terminal M4 Stud Size, 22 AWG to 16 AWG Wire Size, Vinyl Insulation, Copper Tin Plated Contacts 534-216
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| THICKNESS | 0.8mm |
| Model | 534-216 |
| Insulation | Insulated |
| Overall Length | 20mm |
| Contact Material | Copper |
| Insulation Material | Polyvinyl Chloride |
| Minimum Operating Temperature | 75°C |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 6mm |
| Inner Ring Diameter | 4.16mm |
| Stud Size | M4 |
| Standards/Approvals RoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |
| RS PRO Insulated Ring Terminal, M4 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | RS PRO |
| RED RING TERM 3BA/M4Brand | NEUTRAL |
Key Features
- Copper contact material with tin plating provides high conductivity and corrosion resistance.
- Red polyvinyl chloride vinyl insulation ensures electrical insulation and easy size identification.
- Suitable for crimping on electrical cables to connect to studs or posts securely.
- Ring terminal has 6 mm outer ring diameter, 4.16 mm inner diameter, and 0.8 mm thickness.
- Operating temperature range up to 75°C ensures reliable electrical connections in industrial and automotive applications.
- Commonly used in industrial control systems, communication equipment, power supplies, and domestic appliances.
Product Description
RS PRO 534-216 Insulated Ring Terminal is engineered for efficient and reliable wire-to-stud electrical connections. Designed for wire sizes ranging from 22 AWG to 16 AWG, this terminal features an M4 stud size with a red polyvinyl chloride vinyl insulation for electrical safety and quick size recognition. The terminal measures 20 mm in overall length and has an outer ring diameter of 6 mm and an inner diameter of 4.16 mm.
Constructed from high-quality copper contacts with durable tin plating, this ring terminal delivers superior electrical conductivity and resistance to corrosion. The vinyl insulation entry is expanded to facilitate easy wire insertion and secure crimping. This product is ideal for use in a variety of industrial, automotive, and electrical applications, such as wiring in control systems, communication equipment, power supplies, and domestic appliances.
The terminal operates reliably at temperatures up to 75°C and complies with RoHS regulations and ANSI/ESD S20.20:2021 Electrostatic Control Standard, ensuring safety and environmental conformity. For best results, it is recommended to use a ratchet crimping tool for a high-quality secure crimp.
Copper contact material with tin plating provides excellent conductivity and corrosion resistance. Vinyl insulation ensures electrical safety and terminal protection. Colour coded insulation enables quick identification of terminal size.
Expanded insulation entry supports effortless wire insertion. Suitable for crimping on 22 AWG to 16 AWG wires and M4 stud connectors. Compliant with RoHS and ANSI/ESD S20.20:2021 standards for electrostatic control. Applications include industrial control, automotive wiring, communication devices, and power supplies.
This RS PRO Ring Terminal is a dependable component for professionals in electronics, automotive repair, and industrial maintenance. Browse more products in the Wire Terminals & Splices category for compatible connectors and crimp tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes ranging from 22 AWG to 16 AWG.
The ring terminal is designed for an M4 stud size.
It features copper contact material with tin plating for enhanced conductivity and corrosion resistance, along with red polyvinyl chloride insulation.
The terminal has an overall length of 20 mm, an outer ring diameter of 6 mm, and an inner ring diameter of 4.16 mm.
It operates reliably at temperatures up to 75°C.
It complies with RoHS regulations and the ANSI/ESD S20.20:2021 Electrostatic Control Standard.
The thickness of this insulated ring terminal is 0.8 mm.
For optimal performance, it is recommended to use a ratchet crimping tool for a secure crimp.
It is commonly used in industrial control systems, communication equipment, power supplies, and domestic appliances.
The insulation is red, which aids in quick size identification.
The minimum wire size is 0.5 mm² and the maximum wire size is 1.5 mm².
The country of origin for this terminal is Taiwan.
