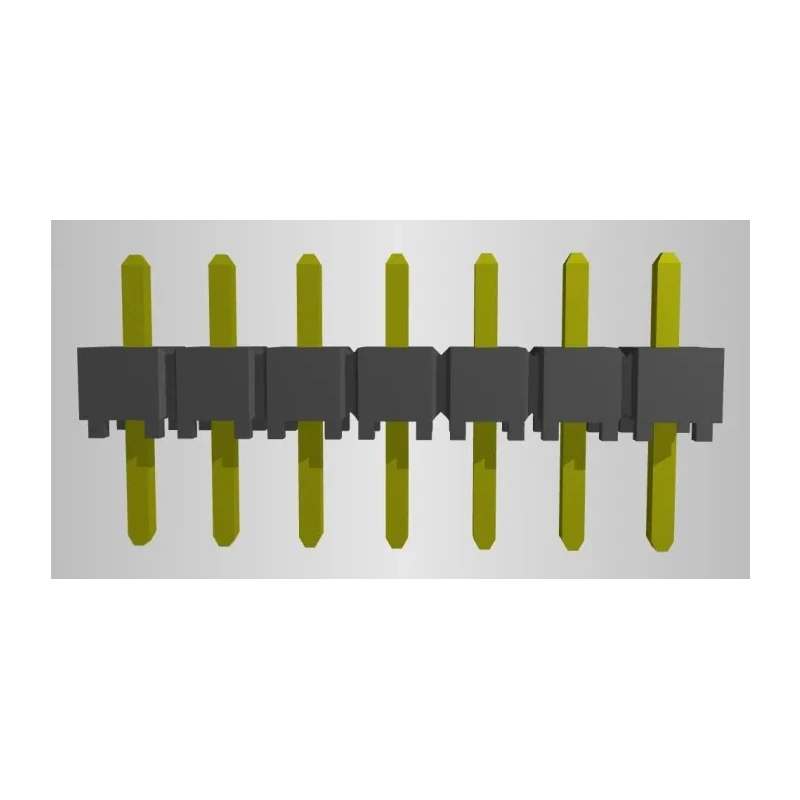

Samtec Pin Header 7 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded Through Hole Mount TSW-107-05-G-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Model | TSW-107-05-G-S |
| Mount Type | Through Hole |
| Special Features | Many options for optimizing cost and performance with platings and ruggedizing features |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Contact System | .025" (0.635 mm) square post |
Key Features
- Compact 7-contact configuration suitable for board-to-board connections.
- Gold-plated phosphor bronze contacts ensure reliable conductivity.
- Housing made from glass filled polyester for durability.
- Rated for 550 V voltage and wide temperature range from -55°C to 125°C.
- Square post contact system with solder termination type.
- Unshrouded male contact design enhances easy mating with connectors.
- Perfect for industrial electronic applications requiring secure connections.
- Through-hole mounting offers mechanical robustness on PCB.
Product Description
Samtec TSW-107-05-G-S is a precision pin header connector ideal for PCB board-to-board connections featuring 7 male contacts arranged in a single row with a 2.54 mm pitch. The unshrouded design facilitates straightforward mating and soldering in through-hole mount applications. Its glass filled polyester housing provides excellent mechanical strength and stability, suitable for demanding industrial environments. The gold-plated phosphor bronze contacts deliver superior electrical conductivity and corrosion resistance, ensuring reliable signal transmission.
Operating reliably across temperatures from -55°C to 125°C and rated up to 550 V, this pin header is well suited for use in electronics manufacturing, industrial equipment, and other commercial applications requiring high connection integrity. The square post contact system coupled with solder termination guarantees a robust mechanical and electrical interface.
The TSW series offers many plating and ruggedizing options to optimize cost and performance, making it a versatile choice for electronic component designers. With its consistent pitch and industry-standard footprint, it integrates seamlessly with existing PCB layouts and connectors.
Applications include electronic control units, embedded systems, communication devices, and instrumentation equipment in industries such as manufacturing, automation, and electrical distribution.
Compact 7-contact configuration suitable for board-to-board connections. Gold-plated phosphor bronze contacts ensure reliable conductivity. Housing made from glass filled polyester for durability. Rated for 550 V voltage and wide temperature range from -55°C to 125°C.
Square post contact system with solder termination type. Unshrouded male contact design enhances easy mating with connectors. Perfect for industrial electronic applications requiring secure connections. Through-hole mounting offers mechanical robustness on PCB.
Explore our extensive range of PCB Headers and connectors for industrial and commercial electronics projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm.
This model features 7 male contacts arranged in a single row.
The pin header is rated for a maximum voltage of 550 V.
It has a housing made from glass filled polyester and contacts made from gold-plated phosphor bronze.
This pin header operates reliably within a temperature range of -55°C to 125°C.
It uses a solder termination type for its square post contact system.
This model features an unshrouded male contact design, which enhances easy mating with connectors.
This pin header is designed for through-hole mounting, providing mechanical robustness on the PCB.
It is suitable for applications in electronic control units, embedded systems, communication devices, and instrumentation equipment.
The contact system features a .025" (0.635 mm) square post configuration.
It offers many options for optimizing cost and performance with various platings and ruggedizing features.
The country of origin for this pin header is India.
