Samtec Pin Header Through Hole 34 Contacts 2.54 mm Pitch 2 Row Unshrouded TSW-117-08-L-D-RA

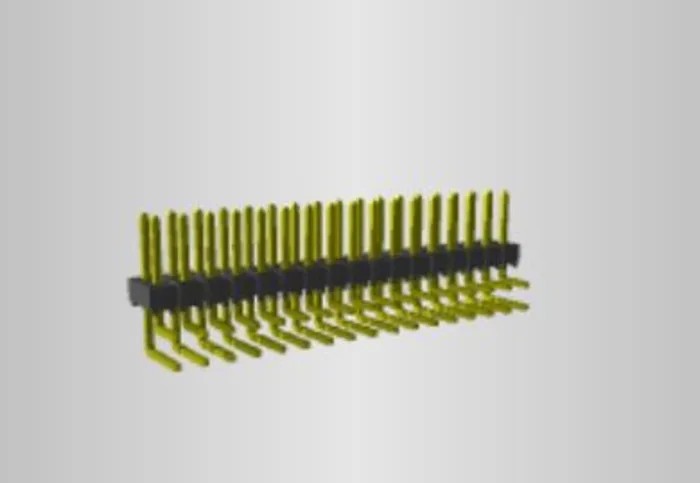

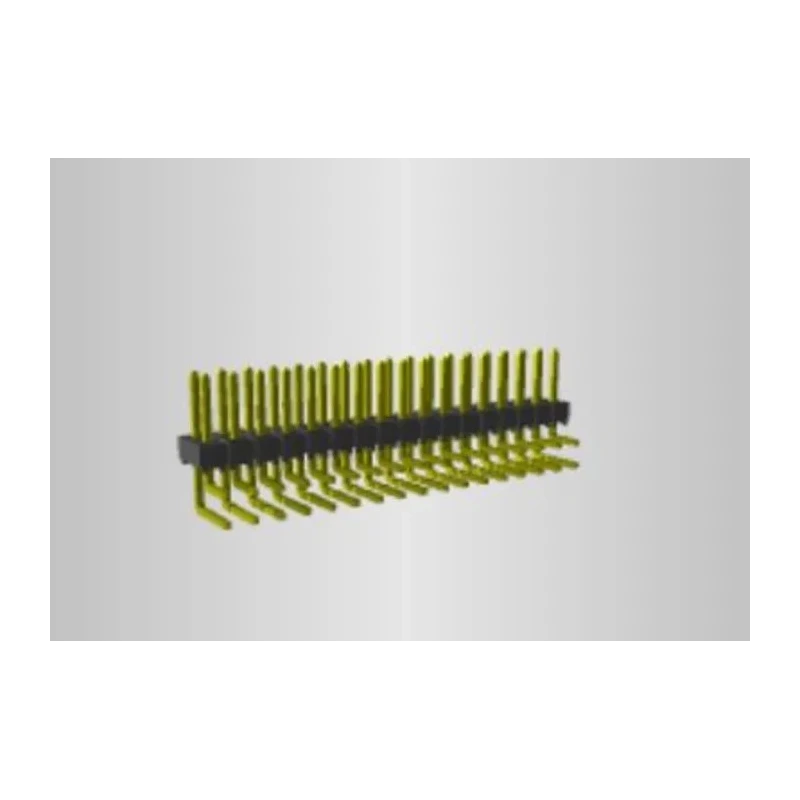

Samtec TSW-117-08-L-D-RA is a high-quality pin header connector designed for through-hole mounting on printed circuit boards (PCBs). It features 34 male contacts arranged in two rows with a 2.54 mm pitch, suitable for board-to-board connection systems. Its housing is made of robust glass filled polyester, providing mechanical strength and electrical insulation.

The contacts are fabricated from phosphor bronze and plated with gold to ensure superior conductivity and corrosion resistance, enhancing long-term reliability in electronic assemblies. This unshrouded, straight oriented connector uses a .025 inch (0.635 mm) square post contact system with solder termination, facilitating ease of integration into diverse electronic applications.

Operating over a wide temperature range of -55°C to 125°C and rated for up to 550 volts, this connector excels in demanding industrial environments including manufacturing, electronics prototyping, and control systems.

Robust glass filled polyester housing for durability and insulation. Gold-plated phosphor bronze contacts for enhanced conductivity and corrosion resistance. Through-hole mounting with solder termination for secure PCB attachment.

Unshrouded, straight orientation suitable for versatile board configurations. Wide operating temperature range from -55°C to 125°C, supporting industrial usage. Rated for a maximum voltage of 550 volts ensuring electrical safety.

Compatible with board-to-board connector systems for modular designs.

This Samtec TSW series pin header is widely utilized in electronics manufacturing, industrial control equipment, and PCB assemblies where reliable, high-density electrical connections are essential. For more detailed design and integration support, 3D models and technical documents are available through industry-standard software platforms.
