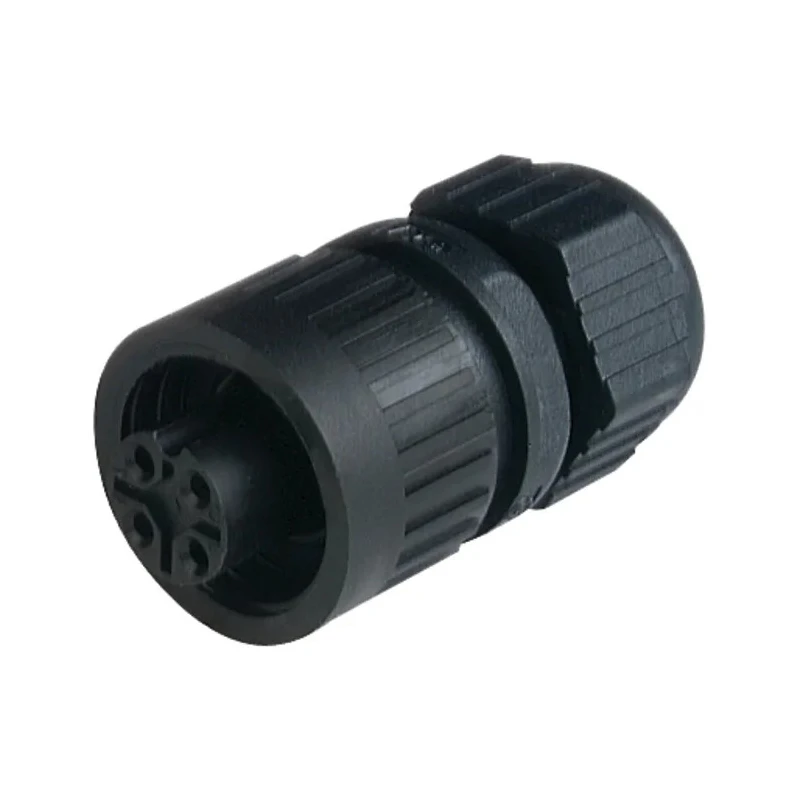

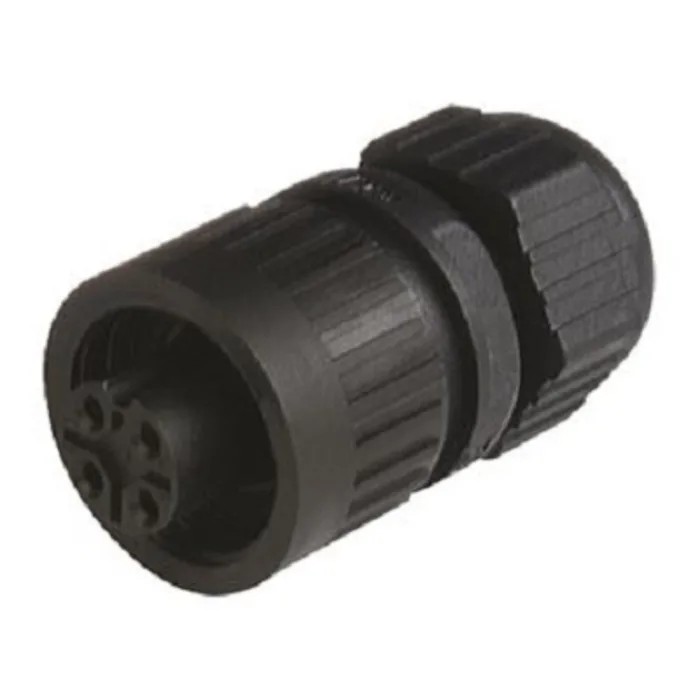

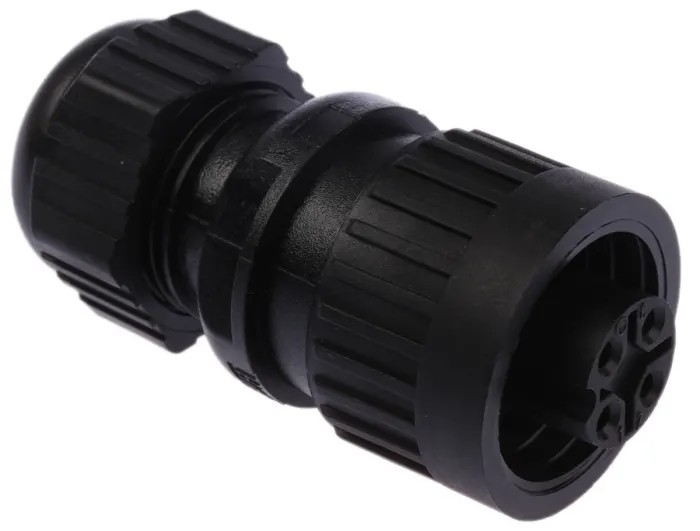

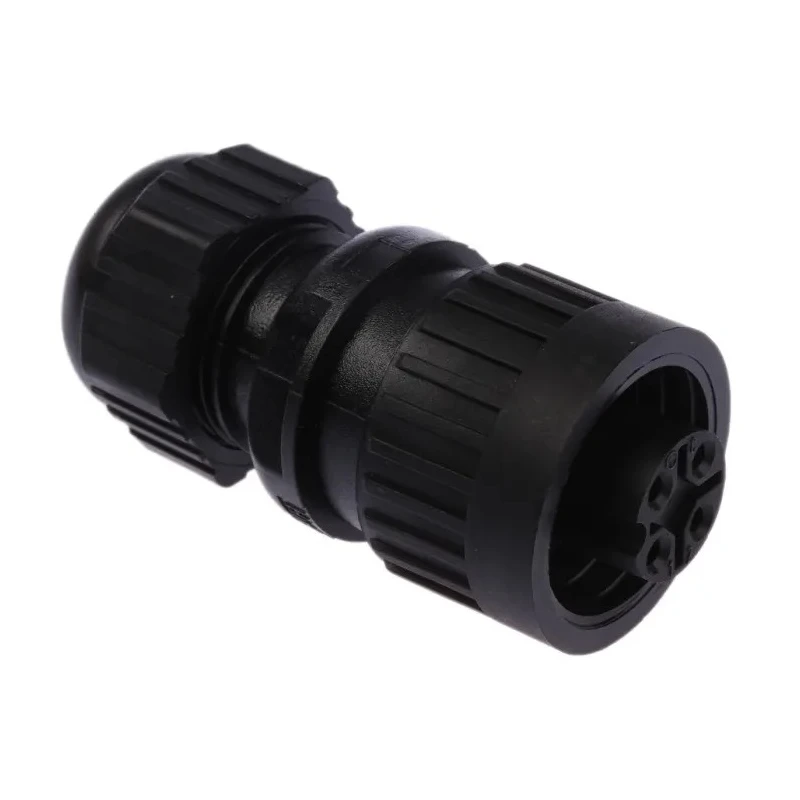

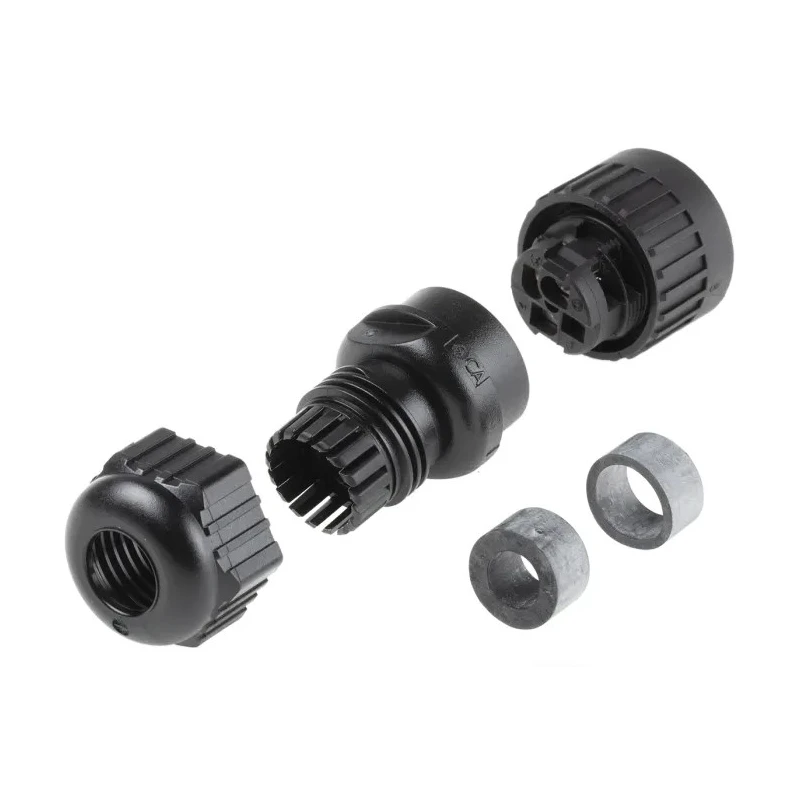

Hirschmann Industrial Circular Connector, Cable Mount M22, 4 Contacts 3+PE, Female Socket, IP67, 16A 400V 934125100 CA 3 LD

Hirschmann 934125100 CA 3 LD industrial circular connector is a cable mount socket designed with a 4-contact 3+PE female layout, offering a reliable 16 amp current and 400 volts voltage rating. The connector's housing is made from high-performance polyamide 66, providing exceptional mechanical strength and resistance to chemicals, making it suitable for demanding industrial environments.

Equipped with silver-plated brass contacts, this connector reduces contact resistance and corrosion risks, ensuring long-term reliable electrical connections. The screw termination mechanism guarantees secure conductor retention even under mechanical vibrations, increasing safety and durability in industrial automation systems.

This model supports an IP67 protection class, making it dust tight and resistant to temporary water immersion, which is essential for harsh site conditions. The connector operates efficiently between -40°C and 90°C, catering to applications exposed to wide temperature fluctuations.

The straight mating orientation with threaded locking ensures reliable mechanical connection for cable and panel interfaces. This Hirschmann circular connector is ideal for sensor and actuator connections in production automation, power distribution to small motors and drives, and waterproof cable entry solutions in control panels.

Its 3+PE contact configuration separates protective earth from live conductors to maintain safety compliance. The 30.6 mm shell diameter provides compatibility with corresponding M22 cable mounts and industrial junctions.

Constructed with durable polyamide 66 housing for mechanical resilience and chemical resistance. Features silver-plated brass contacts that reduce resistance and prevent corrosion. Screw termination provides secure conductor clamping suitable for vibration environments.

IP67 rating ensures protection against dust and temporary water immersion. Operates reliably from -40°C to 90°C, suitable for diverse industrial temperature conditions. Designed for straight mating orientation with threaded connection for secure locking.

Ideal for sensor and actuator cabling in automated production lines and control panel power distribution. Supports medium power circuits in automation and machinery with a 3+PE contact arrangement for safe earthing.

This circular connector is a trusted choice for industrial, manufacturing, automation, and electrical wiring applications requiring robust and sealed connectivities. Browse more Hirschmann connectors and accessories in the EnvMart catalog to meet your industrial electrical assembly and instrumentation needs.
