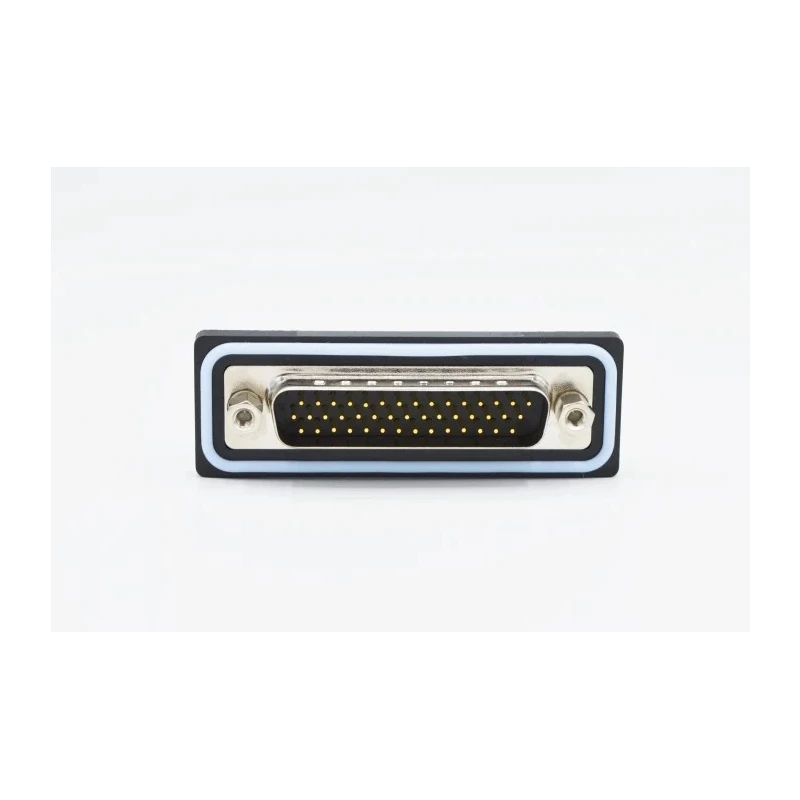

Norcomp High Density 44 Way Vertical 2.29 mm Pitch Surface D-Sub Connector with 4-40 Screw Male HDF-V44-113L011
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 1000V |
| Brand | Norcomp |
| Orientation | Vertical |
| Current | 3A |
| Model | HDF-V44-113L011 |
| Mount Type | Surface |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | HDF |
| Mounting Hardware | 4-40 Screw |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 44 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
Key Features
- The connector accommodates 44 contacts with a standard D-sub configuration.
- It supports a current rating of 3A at a voltage of 1000V.
- The housing is made of flame retardant polybutylene terephthalate (PBT) material.
- Contacts are brass plated with gold for enhanced conductivity and corrosion resistance.
- Operating temperature ranges from -25°C to +85°C, suitable for diverse environments.
- The connector shell is nickel-plated steel providing durability and shielding.
- Vertical orientation allows compact installation on surface mount designs.
- Designed for high density signal applications requiring reliable connections.
Product Description
Norcomp HDF-V44-113L011 is a high density 44 way vertical surface mount D-Sub connector engineered for industrial and electronic applications requiring compact, reliable multi-pin connections.
This male connector uses a 2.29 mm pitch between contacts to achieve high contact density. The contacts are gold-plated brass, ensuring excellent conductivity and corrosion resistance suitable for signal integrity in demanding environments.
The housing consists of polybutylene terephthalate (PBT), a UL 94V-0 rated flame retardant thermoplastic withstanding operating temperatures from -25°C to +85°C, making it suitable for harsh and variable environmental conditions.
Norcomp designed the connector shell from nickel plating steel which offers robust mechanical protection and electromagnetic shielding. It features mounting hardware of 4-40 screws for secure attachment and vertical orientation to optimize space on printed circuit boards.
This connector has a voltage rating of 1000V and a maximum current rating of 3A, which supports a wide range of electronics and power distribution applications. The connector achieves an insulation resistance of 5 Gohms for performance assurance.
Ideal for use in industrial electronics, laboratory instruments, telecommunications, data communications equipment, and manufacturing automation systems. The connector accommodates 44 brass gold plated contacts. Polybutylene terephthalate insulator rated UL 94V-0 for flame retardant safety.
Voltage rating up to 1000V and current rating to 3A. Operating temperature range from -25°C to 85°C for industrial usage. Nickel plated steel shell with 4-40 screw mounting hardware. Vertical orientation and surface mount type for PCB installation.
High density 2.29 mm pitch suitable for signal and power connections. RoHS compliance ensuring environmentally friendly material use. Manufactured in Taiwan, Province of China, meeting quality standards.
This Norcomp HDF series connector is ideal for engineers, system integrators, and manufacturers seeking reliable multi-contact connectors for complex electronics. Explore the extensive range of Norcomp D-Sub Connectors at EnvMart for your projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this D-Sub connector is 1000V.
This model has a maximum current rating of 3A.
The operating temperature range for this connector is from -25°C to +85°C.
It accommodates 44 contacts with a standard D-sub configuration.
The housing is made of polybutylene terephthalate (PBT), and the contacts are brass plated with gold.
This unit includes mounting hardware of 4-40 screws for secure attachment.
The pitch between contacts is 2.29 mm, allowing for high contact density.
This connector features a vertical orientation, which is suitable for compact installations.
Yes, this connector is RoHS compliant, ensuring environmentally friendly material use.
This connector is manufactured in Taiwan, Province of China.
It is suitable for industrial electronics, laboratory instruments, telecommunications, and data communications equipment.
This model has a male connector gender.
