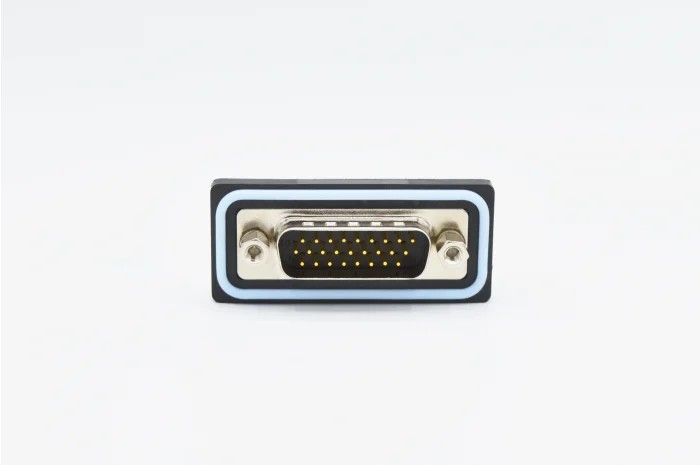

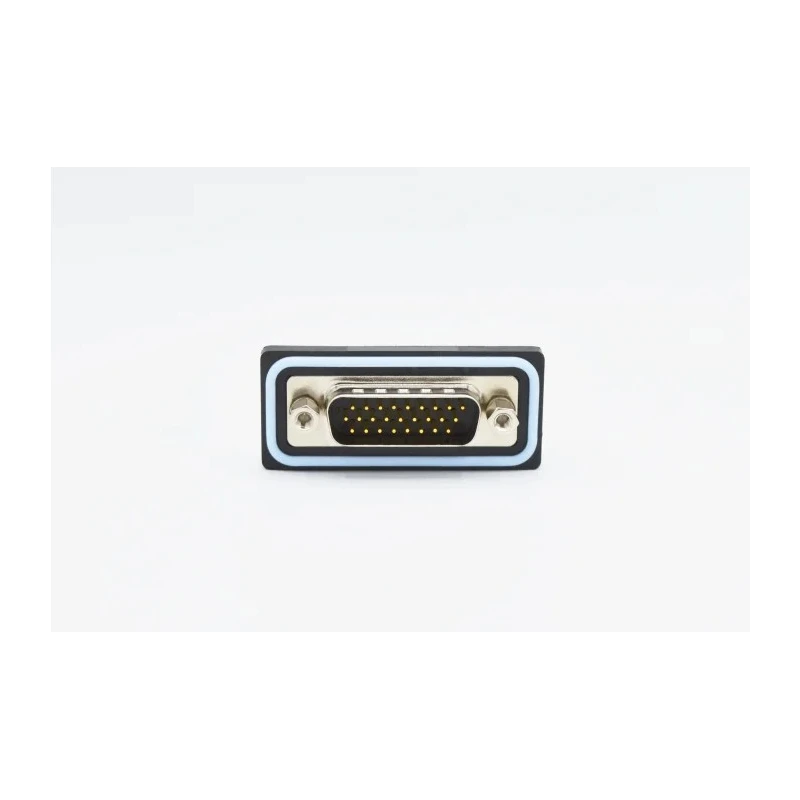

Norcomp HDF 26 Way Vertical 2.29 mm Pitch Surface D-Sub Connector with 4-40 Board Lock Male HDF-V26-113L051

Norcomp HDF-V26-113L051 is a high-density 26-position vertical D-sub connector designed for surface mount applications. It features a 2.29 mm pitch and a male gender contact configuration, making it suitable for compact electronic assemblies requiring reliable electrical connections.

The connector shell is constructed from nickel-plated steel, while the housing uses Polybutylene Terephthalate to provide strong mechanical and electrical insulation. Brass contacts are plated with gold to ensure excellent conductivity and resistance to oxidation. The built-in silicone O-ring contributes to an IP67 rating, offering strong protection against dust and moisture ingress.

This D-sub connector supports a voltage rating of up to 1000V and a current rating of 3A, making it capable of handling moderate power signals. It operates reliably within a temperature range of -25°C to 85°C, suitable for a wide variety of industrial and commercial electronic environments.

The mounting options include 4-40 threaded board locks or jackscrews, facilitating secure and stable connections during PCB assembly. The Norcomp HDF series connectors are ideal for use in industrial electronics, instrumentation, telecommunications, computing, and other sectors requiring high-density, durable connectors with secure locking mechanisms.

This D-sub connector features 26 male contacts designed for high-density applications. It supports a voltage rating of 1000V and a current rating of 3A for reliable performance. The housing is made from durable Polybutylene Terephthalate for enhanced insulation.

Gold-plated brass contacts ensure superior conductivity and corrosion resistance. Operating temperature ranges from -25°C to 85°C, suitable for diverse environments. The connector is IP67 rated, providing excellent protection in industrial conditions.

Mounting uses 4-40 board lock hardware for secure and easy installation. Nickel plated steel shell and silicone O-ring enhance durability and sealing.

Norcomp's HDF connectors are widely used in industrial and commercial electronic equipment where reliable signal and power transmission is critical. This model’s robust design ensures longevity and stable connections in challenging environments.
