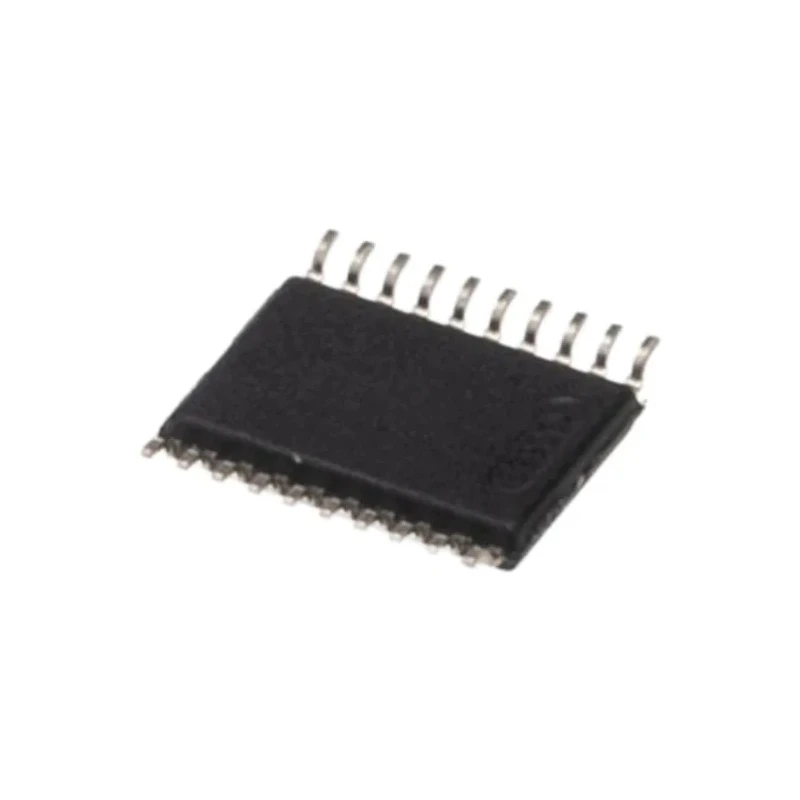

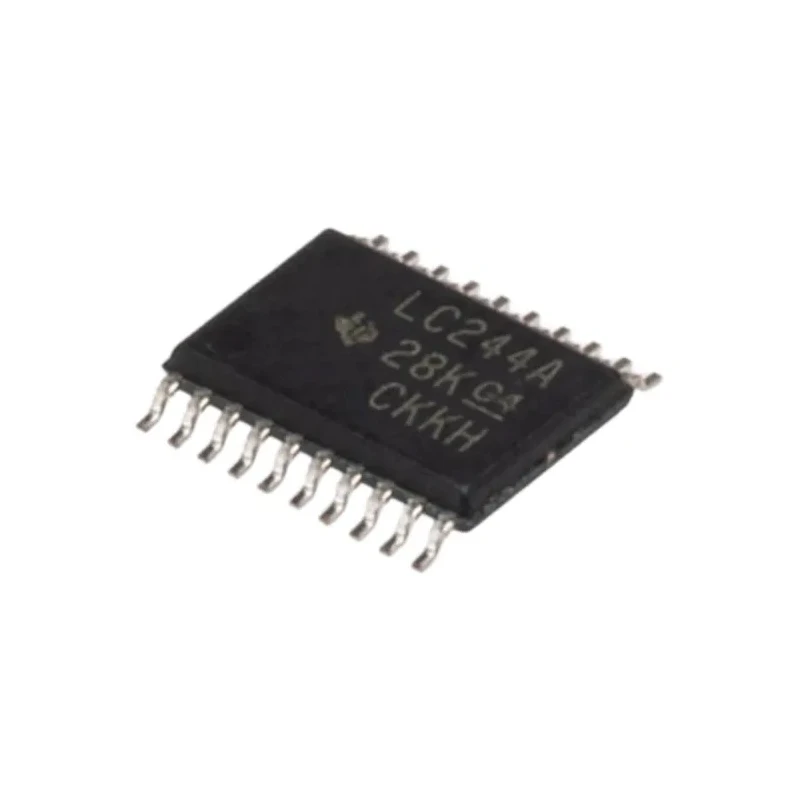

Texas Instruments 8-Channel Buffer & Line Driver Non-Inverting 3 State 20-Pin TSSOP SN74LVC244APWR

Texas Instruments SN74LVC244APWR is an 8-channel buffer and line driver integrated circuit that provides non-inverting logic and three-state outputs, enabling effective signal buffering and bus driving in electronic systems. Housed in a compact 20-pin Thin Shrink Small Outline Package (TSSOP), this device supports surface mount technology and operates over a wide voltage range from 1.65V to 3.6V.

This buffer IC belongs to the 74LVC family of low-voltage CMOS logic devices designed for low power consumption and high-speed performance, with a maximum propagation delay time of 5.9 nanoseconds at typical load conditions. The inputs are single-ended with compatibility for LVTTL and TTL logic levels, while outputs interface with LVCMOS logic levels, ensuring flexibility in mixed-signal designs.

The SN74LVC244APWR device features non-inverting output polarity and three-state outputs, allowing it to drive bus lines effectively and support multiple device connections without signal conflict. Its operating temperature range from -40°C to 125°C and compliance with the automotive AEC-Q100 standard enable robust use in automotive, industrial, and other harsh environment applications.

With a supply current of only 40 microamperes, this buffer IC offers energy-efficient operation suitable for battery-powered and energy-sensitive applications. The compact dimensions of 7.5mm length, 5.6mm width, and 2mm height facilitate space-constrained designs.

Operates at voltages between 1.65V and 3.6V with 5V tolerant inputs. Single-ended inputs with compatibility for LVTTL/TTL logic and non-inverting outputs. Three-state output configuration enables bus sharing and isolation.

Complies with AEC-Q100 automotive standard for reliability. Package Type: Thin Shrink Small Outline Package (TSSOP), 20 pins. Operating temperature range from -40°C to +125°C for industrial and automotive applications. Propagation delay time of 5.9ns at typical load.

Manufactured in Malaysia ensuring quality and traceability.

This product is ideal for electronic circuit designs requiring multiple buffered outputs with minimal power consumption and space savings. It is commonly employed in industrial, automotive, telecommunications, and instrumentation domains where signal integrity and reliable bus interfacing are critical.
