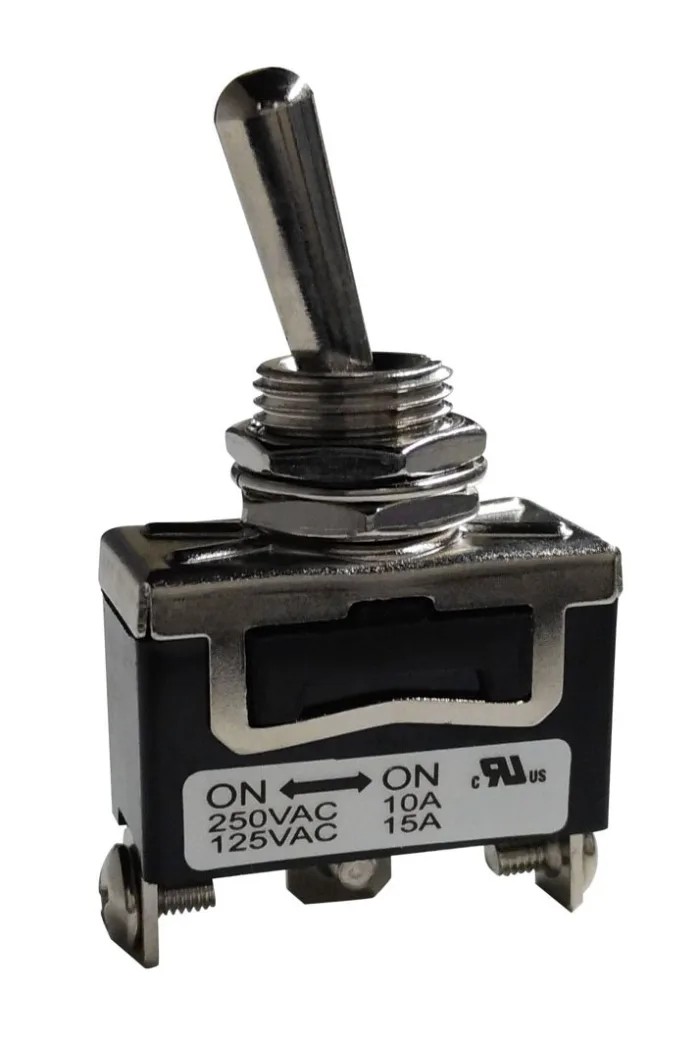

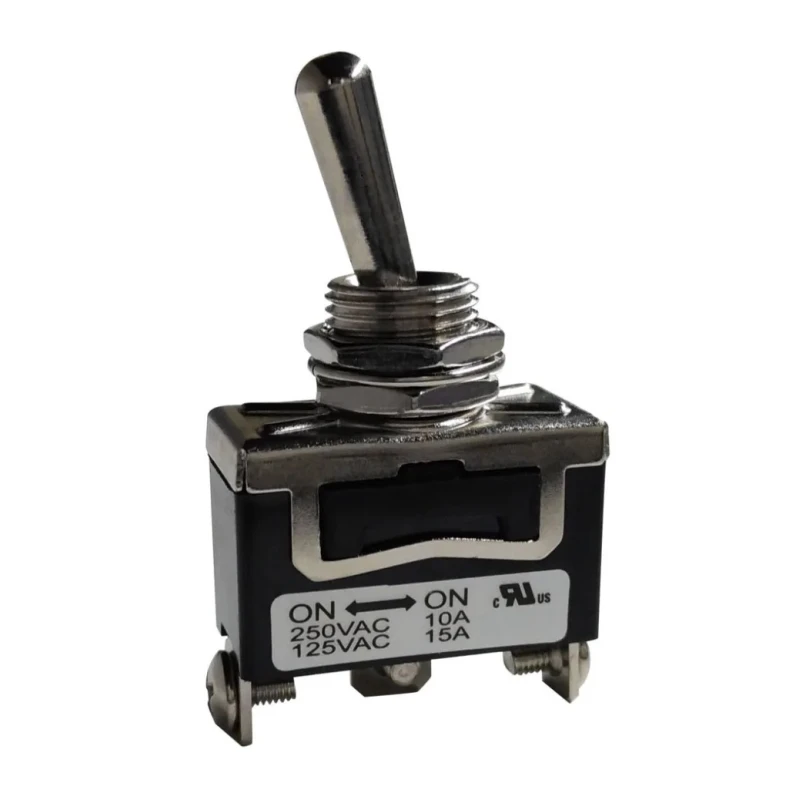

RS PRO Toggle Switch PCB Mount On-On SPDT Screw Terminal 10A 250V ac 206-6994

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Toggle Switch PCB Mount On-On SPDT Screw Terminal 10A 250V ac 206-6994

Name: RS PRO Toggle Switch PCB Mount On-On SPDT Screw Terminal 10A 250V ac 206-6994
Brand: RS PRO
SKU: 165890
Price: 1746 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Height	51.65mm
Length	28.89mm
Model	206-6994
IP Rating	IP40
Width	14.44mm
Mount Type	PCB
Housing	Iron, nickel-plated
Series	RS PRO
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Note	Prior to mounting products onto circuit board as well as for unused units, it is recommended to keep them within the sealed bag
Actuator	Brass with nickel plating
Spring	Steel wire
Base	Phenolic resin molding compound, black
Minimum Operating Temperature	-20°C
Hardware	Nut (Iron, nickel-plated), Washer (Steel, nickel-plated), Screw (Iron, nickel
Terminals	Bronze with nickel-plated
Terminal type	Screw
Label	Mist silver polyester film
Standards/Approvals	UL & cUL, RoHS
Switch Operation	On-On
Actuator Length	16.45mm
Switch Contact Current	10A
Mechanical Life	10Cycles
Contact AC Voltage	250V ac
Actuator Material	Brass
Bushing	Brass with nickel plating

Key Features

This toggle switch features a single pole double throw (SPDT) configuration for versatile circuit control.
It has a screw terminal type designed for secure PCB mounting applications.
The switch operation is On-On, allowing switching between two outputs.
The actuator is made from brass with nickel plating ensuring robust durability.
It offers an IP40 rating for front panel protection against solid objects.
Operating temperature ranges from -20°C up to +55°C for reliable performance in diverse environments.
The mechanical life of the switch is rated at 10 cycles for standard use cases.
This component complies with UL & cUL safety standards and RoHS directives.

Product Description

RS PRO 206-6994 is a high-quality toggle switch designed for PCB mounting with a single pole double throw (SPDT) On-On operation rated at 10A contact current and 250V AC contact voltage. Suitable for telecommunications, aerospace, automotive, instrumentation control, industrial control solutions, and material handling applications, this toggle switch provides reliable and secure circuit switching.

The actuator length measures 16.45 mm and is constructed of brass with nickel plating. The base is made from a black phenolic resin molding compound, providing mechanical strength and electrical insulation. The housing is nickel-plated iron, and terminals are bronze with nickel plating, all contributing to durability and corrosion resistance.

With an IP40 rating, the switch offers front panel protection against ingress of solid objects and operates efficiently within a temperature range of -20°C to +55°C. Its mechanical life span is rated for 10 cycles making it suitable for applications requiring moderate switching frequency.

Designed with screw terminal connection to enable robust and secure PCB mounting, this RS PRO toggle switch meets UL & cUL safety approvals and RoHS compliance for hazardous material restrictions.

This toggle switch features a single pole double throw (SPDT) configuration for versatile circuit control. Screw terminal type designed for PCB mounting applications. On-On switch operation to select between two output circuits.

Brass actuator with nickel plating enhances durability. IP40 front panel protection suitable for industrial environments. Operating temperature range from -20°C to +55°C. Complies with UL & cUL safety standards and RoHS directives.

Mechanical life of 10 switching cycles.

Ensure proper handling by storing the switches in a dry, cool environment with relative humidity less than 90% to prevent terminal oxidation. Prior to mounting on PCBs or for unused units, keep the product sealed in its packaging.

Browse the extensive range of RS PRO switches and Toggle Switches in the EnvMart catalogue for comprehensive electrical and industrial control solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It is rated for a maximum contact current of 10A and a contact voltage of 250V AC.

The switch has an IP40 rating, providing protection against the ingress of solid objects.

The actuator is made from brass with nickel plating, the base is a black phenolic resin molding compound, and the housing is nickel-plated iron.

The mechanical life of this switch is rated for 10 cycles, suitable for moderate switching frequency applications.

It features a screw terminal type connection designed for secure PCB mounting applications.

The dimensions are approximately 51.65 mm in height, 28.89 mm in length, and 14.44 mm in width.

It complies with UL & cUL safety standards and RoHS directives for hazardous material restrictions.

The actuator is made of brass with nickel plating, enhancing its durability.

It is suitable for applications in telecommunications, aerospace, automotive, instrumentation control, industrial control solutions, and material handling.

It is recommended to keep the switch sealed in its packaging prior to mounting on PCBs or for unused units to prevent terminal oxidation.
