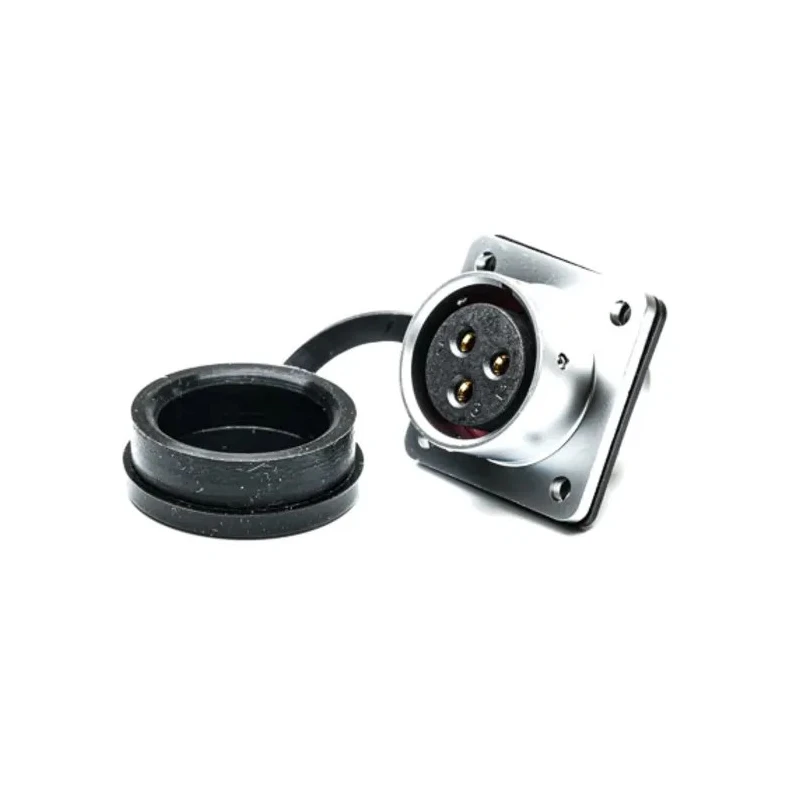

RS PRO Circular Connector, 3 Contacts, Flange Mount, M20 Size, Socket Female, IP67 Rated, 25A, 500V, Chrome Plated 206-5197
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 25A |
| Model | 206-5197 |
| IP Rating | IP67 |
| Mount Type | Flange |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 22 mm |
| Mating Type | Push Pull |
| Connector Size | M20 |
| Plug/Socket | Socket |
Key Features
- Constructed with chrome plated brass housing for durability.
- Features gold-plated brass contacts to ensure excellent conductivity.
- Push-pull mating type for quick and secure connection.
- Operates reliably between -40°C to 85°C temperature range.
- Rated IP67 for waterproof and dustproof performance.
- Solder termination supports stable electrical wiring.
- Designed for industrial use in medical, communications, and test equipment.
- Shell size measures 22 mm with a flange mounting style.
Product Description
RS PRO 206-5197 Circular Connector is a premium industrial circular connector designed for robust and reliable connections in demanding environments. The flange mount, M20-sized socket features 3 female contacts with gold-plated brass contact material and chrome plated brass housing, providing durability and excellent electrical performance.
This connector is designed for applications requiring a current rating of 25A and voltage up to 500V, suitable for use in a variety of industrial, medical, communications, and test and measurement equipment setups where waterproof and dustproof connections are critical.
The push-pull mating system ensures quick and secure engagements, supporting over 500 mating cycles. It operates flawlessly in temperatures ranging from -40°C up to 85°C while maintaining an IP67 rating for protection against dust and water ingress.
The solder termination type supports secure wire attachment, optimized for wire gauges compatible with the M20 connector diameter. The 22 mm shell size and square flange panel mounting facilitate easy installation and replacement.
Durable chrome plated brass housing for mechanical strength. High-quality gold plated brass contacts for superior conductivity. Reliable push-pull mating system for ease of use. Environmental protection rating of IP67 ensures use in harsh conditions.
Wide operation temperature range from -40°C to 85°C. Rated for 25A current and 500V voltage suitable for industrial power applications. Designed for industrial, laboratory, construction, and instrumentation environments.
Supports over 500 mating cycles maintaining performance. Flange mounting for secure panel integration. Manufactured in China as part of the RS PRO SF2013 connector series.
This RS PRO industrial circular connector offers superior quality and reliability for professionals designing custom connector solutions for harsh environments. Explore the wide range of RS PRO electrical and electronic connectors available for diverse industrial applications on EnvMart.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 25A and a voltage of up to 500V, making it suitable for various industrial applications.
It has an IP67 rating, ensuring protection against dust and water ingress, which is critical for use in harsh environments.
The connector operates reliably within a temperature range of -40°C to 85°C, allowing it to function in extreme conditions.
It features a solder termination type, which supports secure wire attachment for stable electrical connections.
The housing is made of chrome plated brass, while the contacts are gold-plated brass, ensuring durability and excellent conductivity.
This model features 3 female contacts, allowing for multiple connections in a single unit.
The shell size measures 22 mm, which is compatible with M20 connector specifications.
It uses a push-pull mating type, which allows for quick and secure connections, supporting over 500 mating cycles.
This model features a flange mounting style, facilitating secure panel integration for installation.
It is designed for industrial use in medical, communications, and test equipment applications, where reliable connections are essential.
The RS PRO 206-5197 is manufactured in China as part of the RS PRO SF2013 connector series.
This connector has a straight orientation, which is typical for many industrial applications.
