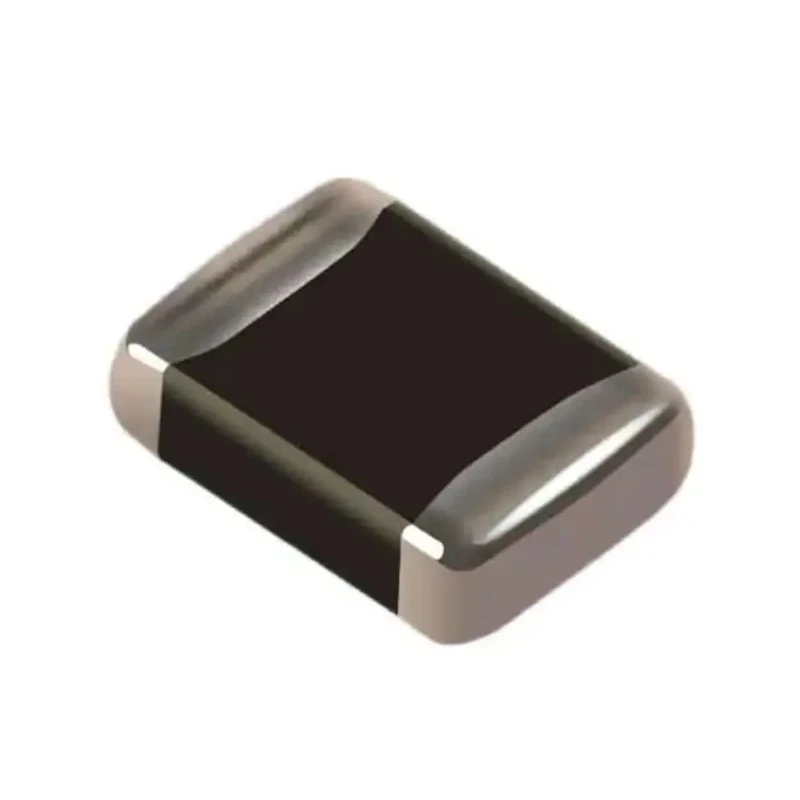

Bourns ZVHT Low Voltage Multi-Layer Varistor 3 nF 10 A Clamping 90 V Surface Mount 2220 Case ZV35K2220102NIR1HT

Bourns ZV35K2220102NIR1HT varistor is a low voltage multi-layer device with a capacitance of 3 nF, designed for surface mount applications in the 2220 package. Featuring a clamping voltage of 90 V and a varistor voltage of 56 V, this varistor is engineered to protect sensitive electronic components from voltage surges and spikes.

It supports a maximum AC voltage of 35 V and maximum DC voltage of 45 V, with a high clamping current rating of 10 A. The device operates reliably across a wide temperature range from -55°C to 150°C, making it suitable for harsh industrial conditions.

Constructed from metal material, the varistor ensures durability and robustness for long-term usage. Its dimensions include a length of 5.7 mm and thickness of 1.45 mm, fitting compact electronic designs easily.

The ZVHT series is known for its broad range of current and energy handling capabilities, short response time, and low sensitivity, making it ideal for protecting delicate electronics such as those used in industrial controls, laboratory instrumentation, telecommunications, and power supply distribution networks.

This varistor's fast response time helps in reducing damage from high voltage transients. Compliance with UL and RoHS ensures product quality and environmental compliance. Surface mount design facilitates automated assembly processes.

Offers reliable protection in industrial, manufacturing, laboratory, and electronic assembly environments.

The Varistor is manufactured in Slovenia, reflecting high quality European manufacturing standards. This product is sold on reels containing multiple pieces, suitable for mass production uses.

Explore the Electronics & Electricals category on EnvMart for this and other surge protection components to provide reliable transient voltage suppression in your electronic designs.
