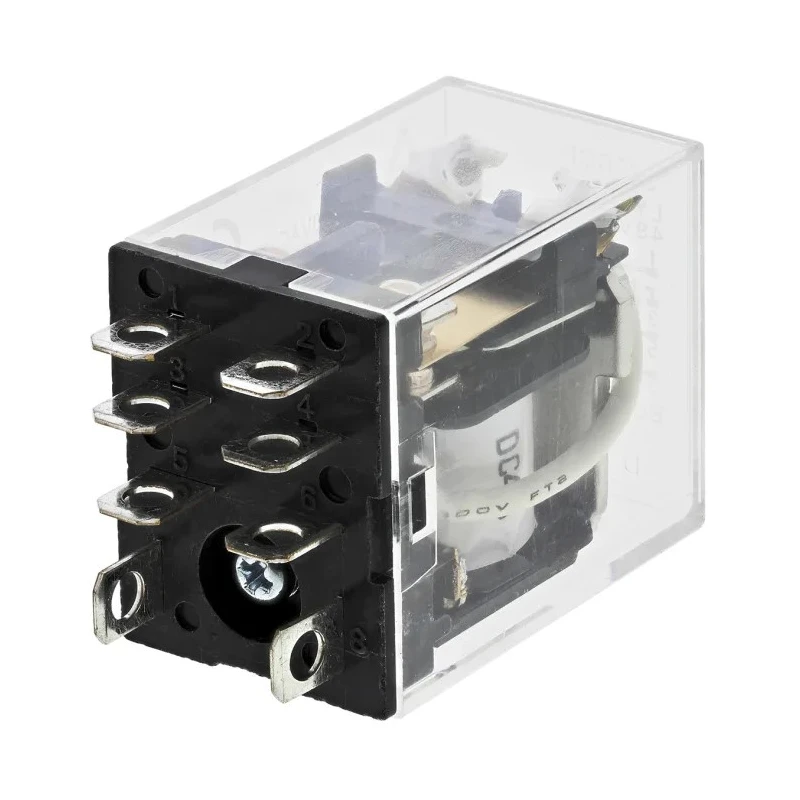

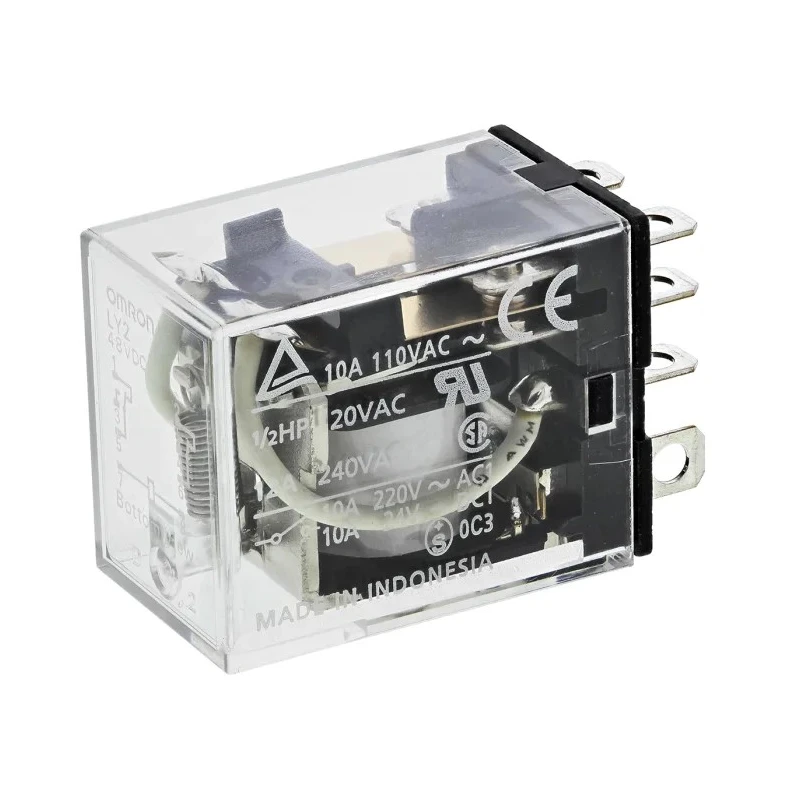

Omron DIN Rail Power Relay 48V DC Coil 10A Switching Current DPDT LY2 48VDC

Omron LY2 48VDC DIN Rail Power Relay is a robust electrical component designed for high reliability and durability in industrial applications. Featuring a 48V DC coil voltage and a double-pole double-throw (DPDT) contact configuration, this relay offers flexible switching capabilities for diverse automation and control tasks.

The relay is engineered for DIN Rail mounting and incorporates quick connect terminals, facilitating fast and secure installation in control panels and electronic circuits. It can handle a switching current of up to 10A and supports an AC switching voltage of 120V, making it suitable for medium power applications.

Designed with silver alloy contacts, this relay ensures excellent conductivity and extended operational life. It is rated for a switching power of 1.1 kVA AC and 240W DC, supporting both resistive and inductive loads effectively. The coil resistance measures 2.6 kΩ, and the coil power is 900 mW.

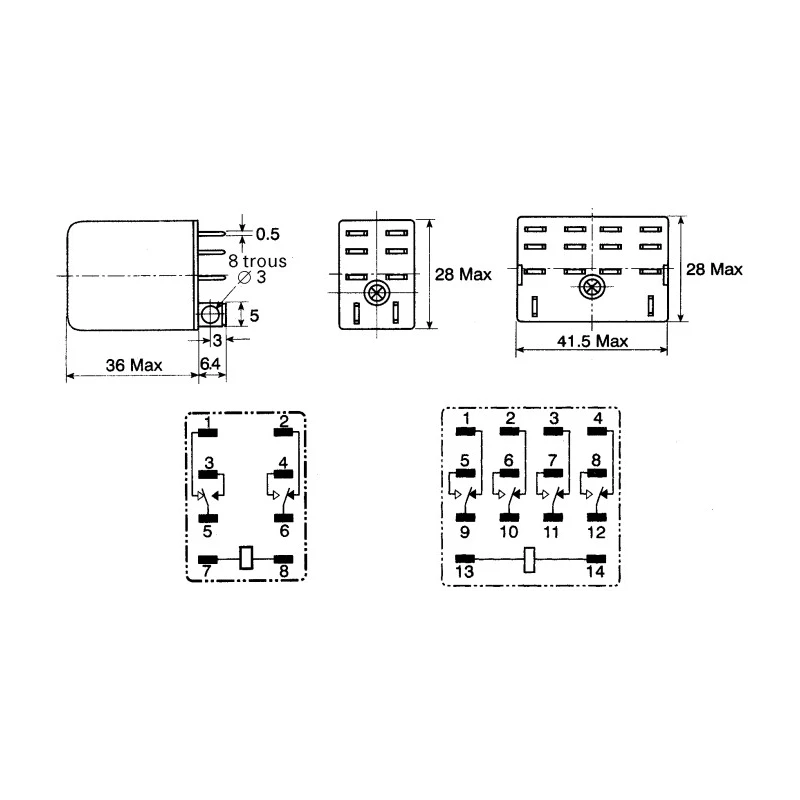

This device operates efficiently across a wide temperature range from -25°C to +55°C, making it adaptable to various environmental conditions. Its compact size with dimensions of 42.4 mm height, 33.5 mm width, and 28 mm length allows integration into constrained spaces.

Compliant with international standards such as CE, EN, IEC, RoHS, and UL, the Omron LY2 relay guarantees quality and safety for industrial and commercial electrical systems. Operates at 48V DC coil voltage for versatile industrial use.

DPDT contacts provide flexible switching configurations. Quick connect terminals for simple DIN Rail panel installation. Supports 10A current and switching power up to 1.1 kVA AC. Silver alloy contact material for durability and performance.

Functioning temperature range of -25°C to +55°C ensures reliability. Compact size fits easily into electrical control panels. Certified with CE, EN, IEC, RoHS, and UL standards compliance. Ideal for automation control, motor and lamp switching applications.

This power relay is widely used in industrial automation, building management systems, and electrical circuit control. Its high operational lifespan ensures dependable switching performance in demanding environments. Explore other Power Relay solutions and Omron products on EnvMart to optimize your industrial electrical setups.
