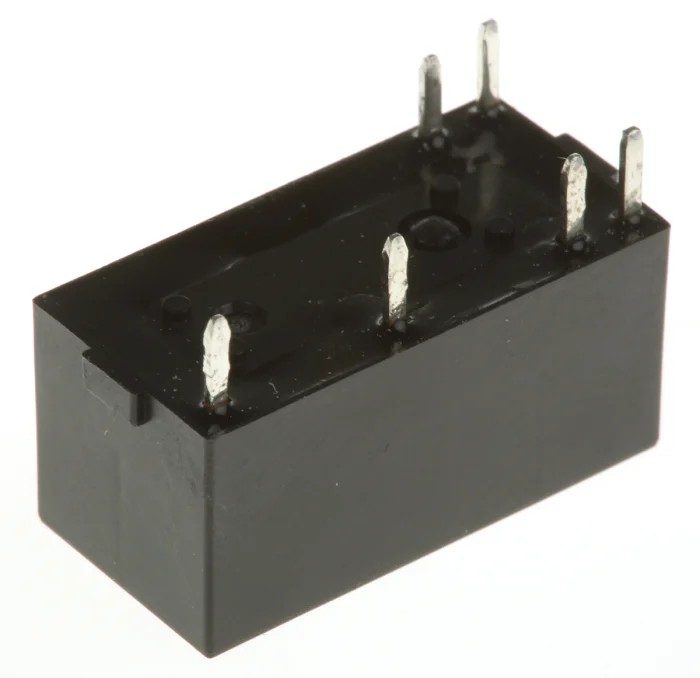

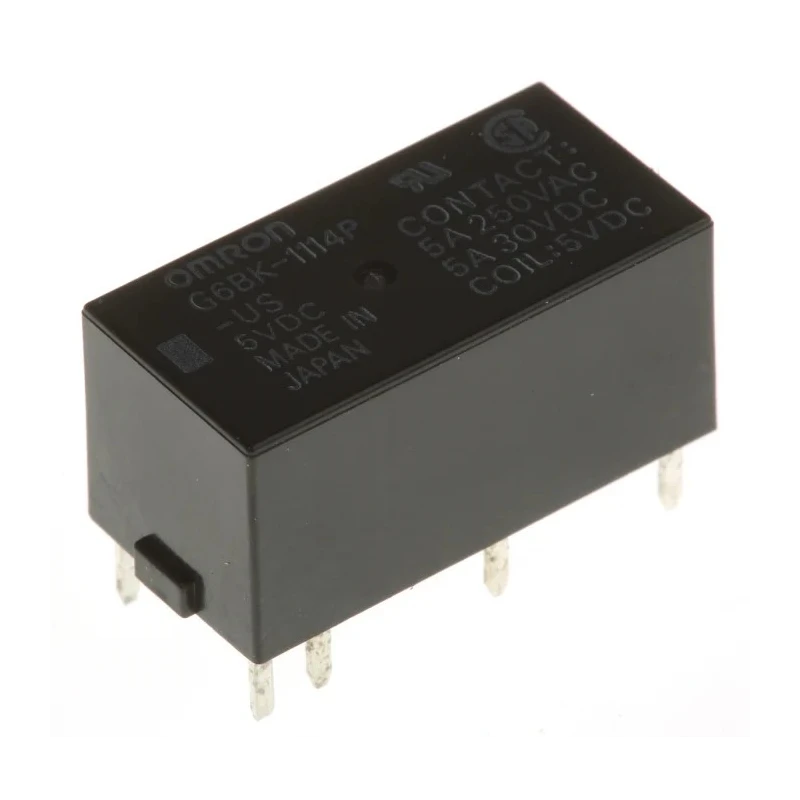

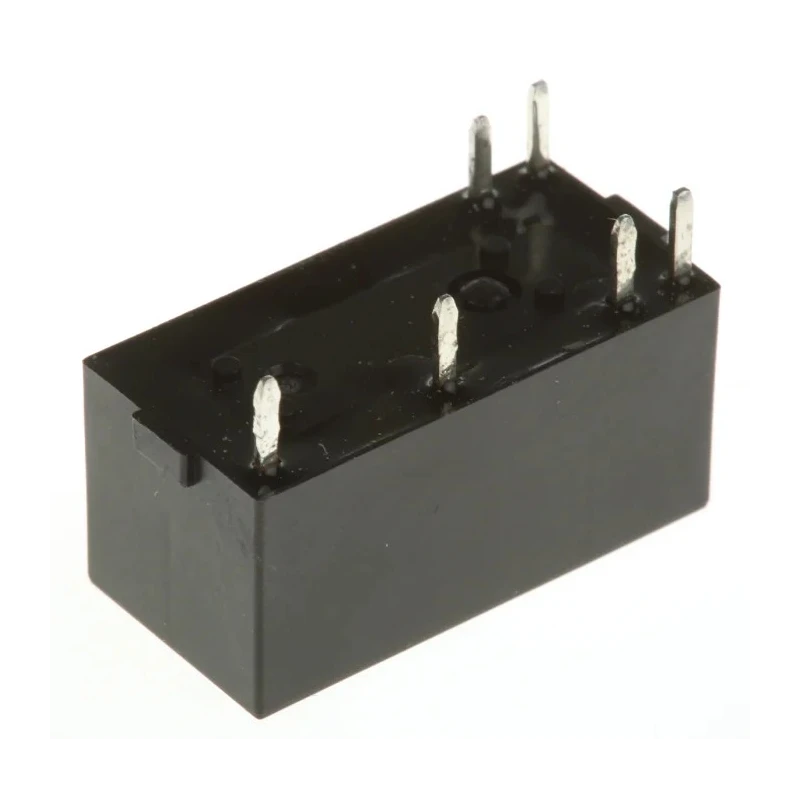

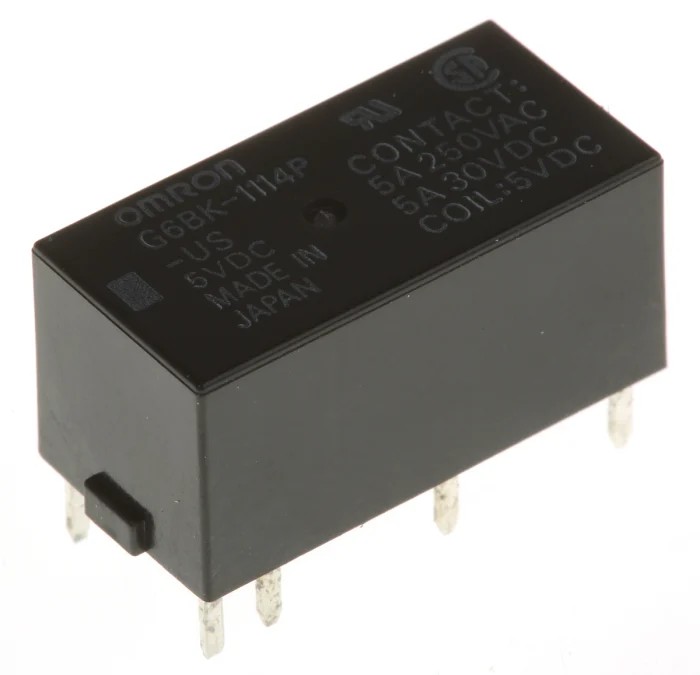

Omron Power Relay PCB Mount SPST 5V DC Coil 5A Switching Current G6BK-1114P-US DC5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 20mm |
| Model | G6BK-1114P-US DC5 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | AgCdO |
| Series | G2R |
| Contact Configuration | SPST |
| Switching Current | 5A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | CE, EN, RoHS, IEC, UL |
| Mechanical Life | 50 x 106 |
| Coil Voltage | 5V dc |
Key Features

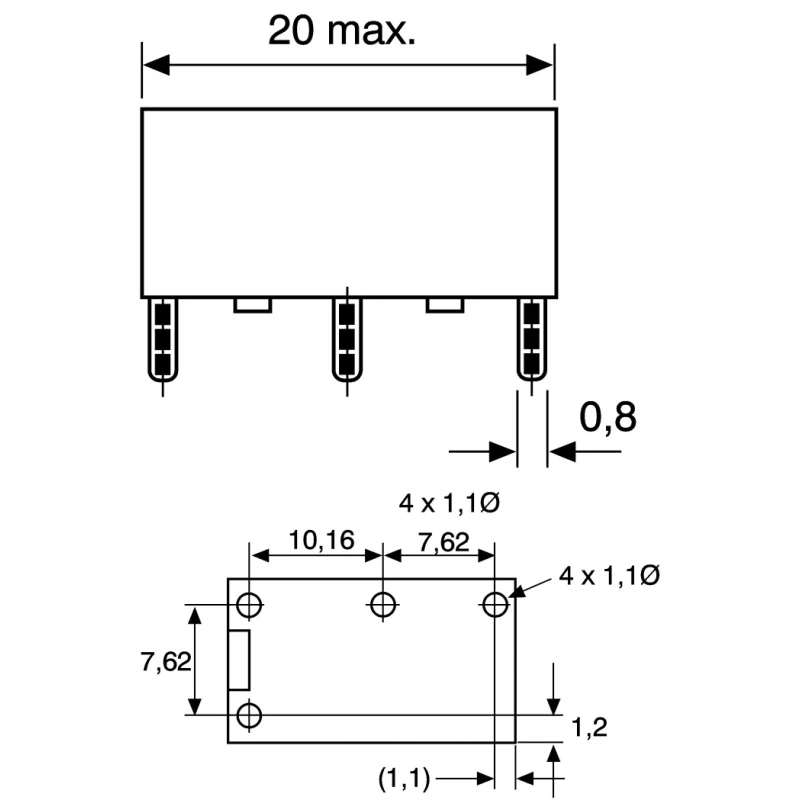

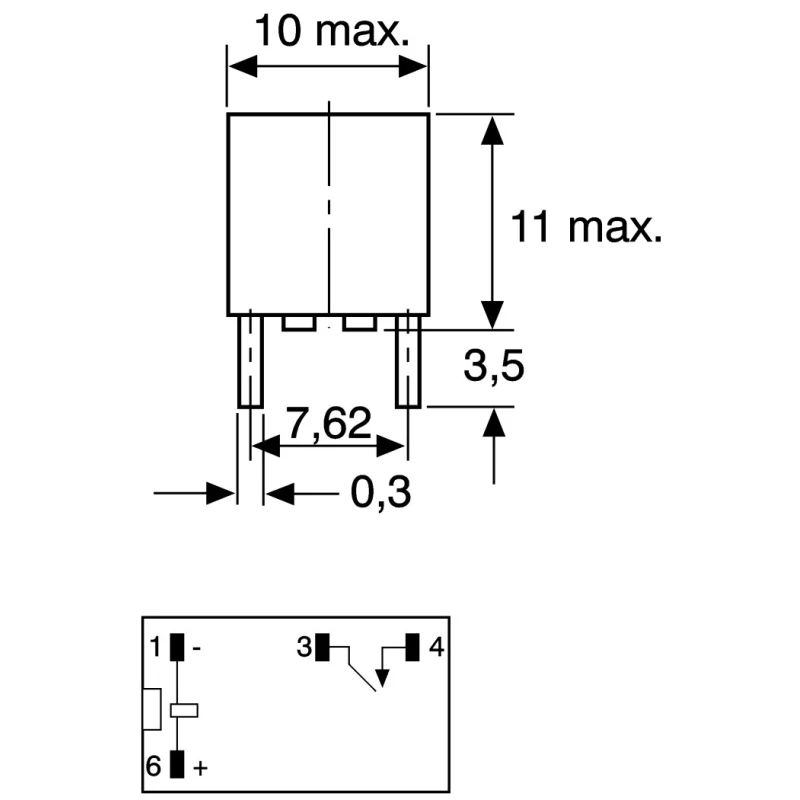

- Compact size with dimensions 20mm length, 10mm width, and 10mm height for PCB mounting.
- Switching voltage rating supports up to 30V DC and 250V AC.
- Contact material is silver cadmium oxide (AgCdO) ensuring high electrical performance.
- High mechanical life rated at 50 million operations for durability.
- Low contact resistance of 30 milliohms for efficient electrical conduction.
- Terminal type designed for solder connection on PCBs.
- Series designation G2R indicates reliable performance within the Omron product family.
- Fully sealed construction to protect internal components from environmental factors.
Product Description
Omron G6BK-1114P-US DC5 power relay is a high-quality PCB mount relay designed for industrial and electronic applications, equipped with a 5V DC coil and a single-pole single-throw (SPST) switch contact configuration. It supports a switching current of 5A, making it suitable for a wide range of control and automation tasks.
This relay measures 20mm in length, 10mm in width, and 10mm in height, ensuring compatibility with compact PCB designs. Its fully sealed construction enhances reliability by protecting the relay’s internal mechanism from dust and moisture, critical for long-life operation.
Contact resistance is minimized to 30 milliohms thanks to silver cadmium oxide (AgCdO) contact material, providing efficient current flow and reduced signal loss. Rated for switching voltages up to 30V DC and 250V AC, the relay can handle both DC and AC loads effectively.
The mechanical life of this relay exceeds 50 million operations, emphasizing its durability for sustained industrial use. The solder-type terminals facilitate secure and reliable PCB assembly.
Omron’s G2R series relay adheres to major industry standards including CE, EN, RoHS, IEC, and UL certifications, validating its compliance with international safety and environmental regulations.
Ideal for electrical, automation, consumer electronics, and industrial control systems, this power relay offers precision switching and trusted performance. It is utilized in applications such as signal switching, circuit protection, and device control within manufacturing and instrumentation sectors.
Compact dimensions optimize PCB real estate usage. Robust contact material ensures longevity and low resistance. Fully sealed design prevents contamination and failure. 5A switching current capacity supports moderate load requirements.
Comprehensive standard compliance guarantees product reliability. Explore additional Omron Power Relays and electronics components on EnvMart to support your design and maintenance projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 5A, making it suitable for various control and automation tasks.
It measures 20mm in length, 10mm in width, and 10mm in height, which is ideal for compact PCB designs.
The coil voltage for this relay is 5V DC, which is necessary for its operation.
It features a single-pole single-throw (SPST) contact configuration, suitable for various applications.
The contact material is silver cadmium oxide (AgCdO), which ensures efficient electrical performance.
It supports switching voltages up to 30V DC and 250V AC, allowing it to handle both DC and AC loads effectively.
The mechanical life of this relay is rated at over 50 million operations, indicating its durability for industrial use.
It is designed with solder-type terminals for secure and reliable PCB assembly.
This model adheres to several standards including CE, EN, RoHS, IEC, and UL, ensuring compliance with international regulations.
The contact resistance is minimized to 30 milliohms, which aids in efficient current flow and reduces signal loss.
It is utilized in applications such as signal switching, circuit protection, and device control within manufacturing and instrumentation sectors.
This relay is part of the G2R series, which is known for its reliable performance within the Omron product family.
