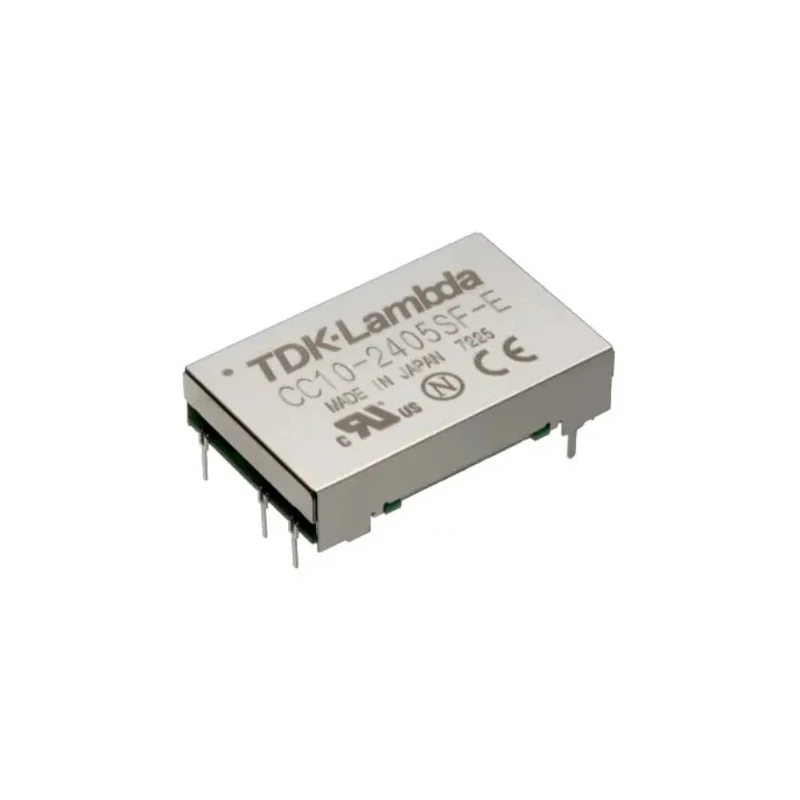

TDK-Lambda CC-E DC/DC Converter Surface Mount 12V DC Output 1A 10W 36V-76V Input 7-Pin CC10-4812SR-E

Free Delivery in India | Lowest Global Shipping Charges

TDK-Lambda CC-E DC/DC Converter Surface Mount 12V DC Output 1A 10W 36V-76V Input 7-Pin CC10-4812SR-E

Name: TDK-Lambda CC-E DC/DC Converter Surface Mount 12V DC Output 1A 10W 36V-76V Input 7-Pin CC10-4812SR-E
Brand: TDK-Lambda
SKU: 164924
Price: 570.09 USD
Availability: InStock



Category DC/DC Converter Brand TDK-Lambda Condition New

Specifications

Country of Origin	Japan
Voltage	Converters / DC-DC Converters TDK-Lambda CC-E DC/DC Converter, 12V dc/ 1 A, 76V
Brand	TDK-Lambda
Efficiency	0.88%
Length	8.5mm
Model	CC10-4812SR-E
Depth	22.6mm
Gross Weight	10g
Width	35.56mm
Mount Type	Surface
Series	CC-E
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Output Power	10W
Maximum Input Voltage	76V
Minimum Input Voltage	36V
Number of Pins	7
Output Voltage 1	12V dc
Output Current 1	1A
Isolation Voltage	500V
Input Ratio	2:1
Input Ratio2	1

Key Features

Compact surface mount design suitable for space-saving applications.
Input voltage range from 36V minimum to 76V maximum for versatile use.
Provides a stable 12V DC output voltage with 1A current capacity.
High efficiency of 88 percent to minimize power loss.
Isolation voltage of 500V enhances safety between input and output.
Operates reliably within a temperature range of -40°C to 85°C.
Lightweight design at 10 grams for easy integration in various systems.
Compact dimensions of 35.56mm width, 22.6mm depth, and 8.5mm length.

Product Description

The TDK-Lambda CC10-4812SR-E DC/DC Converter is a highly compact, surface mount module designed for voltage transformation in electronic equipment. This isolated converter supports a single output providing 12V DC at 1A with a maximum power output of 10W. It accepts a wide DC input voltage range between 36V and 76V, making it suitable for applications requiring versatile power supply conditions.

Constructed to operate from -40°C to 85°C, this converter ensures performance stability in demanding industrial and telecommunications environments. The 7-pin surface mount configuration facilitates easy PCB integration and robust electrical connections. With an isolation voltage rating of 500V, it provides electrical separation between input and output circuits to enhance safety and prevent interference.

Featuring high efficiency at 88 percent, the CC-E series converter minimizes energy loss and heat generation, important for compact electronics and embedded systems. Its dimensions are optimized for applications that require space-saving power solutions, measuring just 35.56mm in width, 22.6mm in depth, and 8.5mm in length, while weighing only 10 grams.

This DC/DC converter is commonly used in telecommunication devices, industrial automation equipment, and consumer electronics for converting voltage levels safely and efficiently. Its robust design and flexibility make it an excellent choice for demanding environments requiring reliable isolated power supply modules.

Compact surface mount module for efficient PCB integration. Wide input voltage range from 36V to 76V DC for application flexibility. Stable single output voltage of 12V DC at 1A current. High isolation voltage of 500V ensuring electrical safety.

Operates over a wide temperature range from -40°C to 85°C. High efficiency of 88 percent reduces power dissipation. Lightweight and compact design optimizes device footprint. 7-pin surface mount configuration supports secure electrical connections.

Ideal for use in telecom, industrial control, and consumer electronics. Explore a wide range of DC/DC Converters and related power supply solutions at EnvMart to support your electronic projects and industrial needs.
