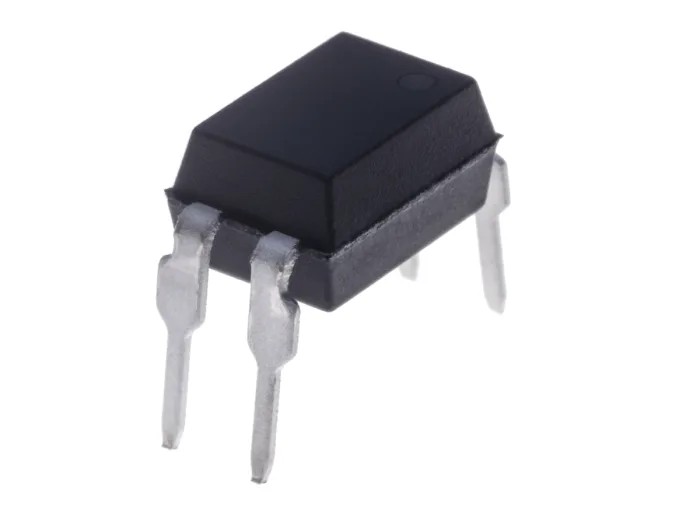

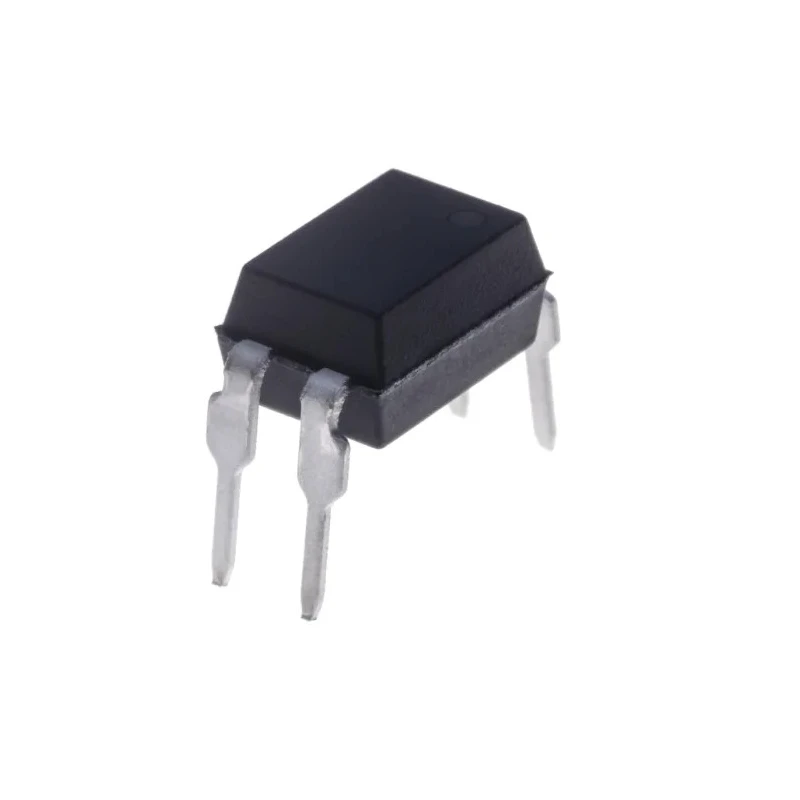

Isocom AC Input Optocoupler Through Hole 4-Pin DIP PS2505-1X

Isocom PS2505-1X AC Input Optocoupler is designed for optical isolation in electronic circuits, featuring a through-hole 4-pin dual inline package (DIP) that is compact and easy to integrate. The optocoupler consists of two infrared LEDs connected in inverse parallel and an NPN silicon phototransistor, offering AC or polarity insensitive input current operation.

This device is suitable for a variety of industrial and electronic applications requiring electrical isolation between input and output signals, including computer terminals, industrial system controllers, telephone sets, and signal transmission systems across differing potentials and impedances.

The PS2505 series provides a high isolation voltage of 5.3k Vrms and ensures signal integrity even in electrically noisy environments. It maintains stable performance across a wide temperature range from -30°C to 100°C, facilitating application in both harsh and standard operating conditions.

The typical rise and fall times of 4 microseconds and 3 microseconds respectively, make this optocoupler efficient for rapid signal switching. It is UL approved, meets necessary standards, and is automotive standard non-compliant, focusing primarily on industrial and commercial electronics.

Manufactured in Thailand, the PS2505-1X ensures adherence to quality manufacturing processes. Its through-hole DIP packaging facilitates straightforward mounting and replacement in existing circuits.

AC input current type for versatile signal isolation. High isolation voltage (5300 Vrms) for safety and noise immunity. Compact 4-pin DIP package for easy PCB integration. Wide operating temperature range from -30°C to 100°C.

Fast switching times with typical rise time 4μs and fall time 3μs. Single channel optocoupler suitable for various electronic applications. Complies with UL standards ensuring quality. Manufactured in Thailand for reliable production standards.
