ZF Short Lever Micro Switch, Solder Terminal, 100mA, 250 V AC, SPDT Contact Configuration, IP6K7 Protection DC3C-A1LB

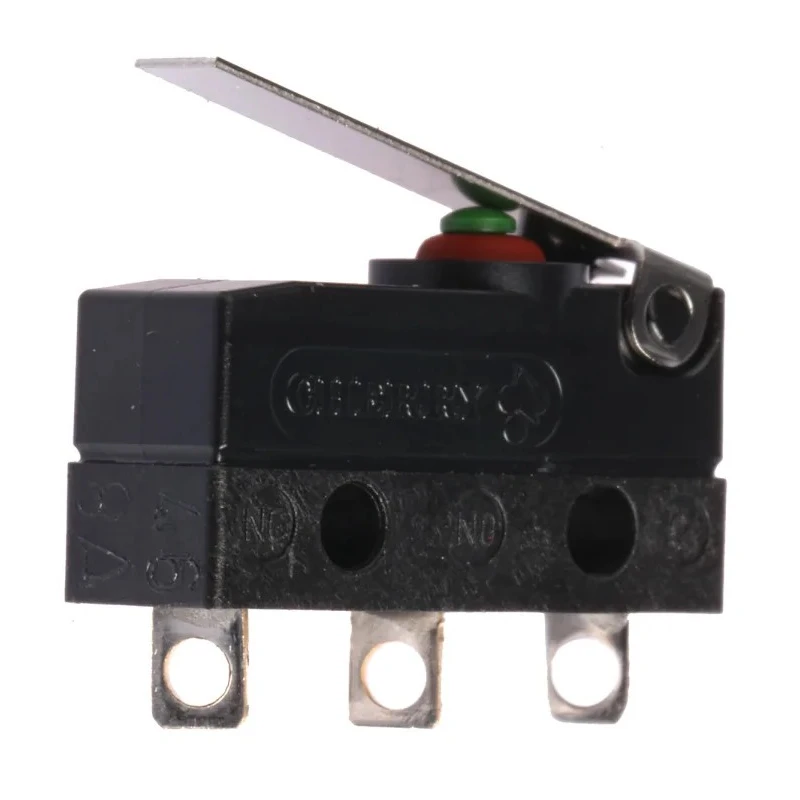

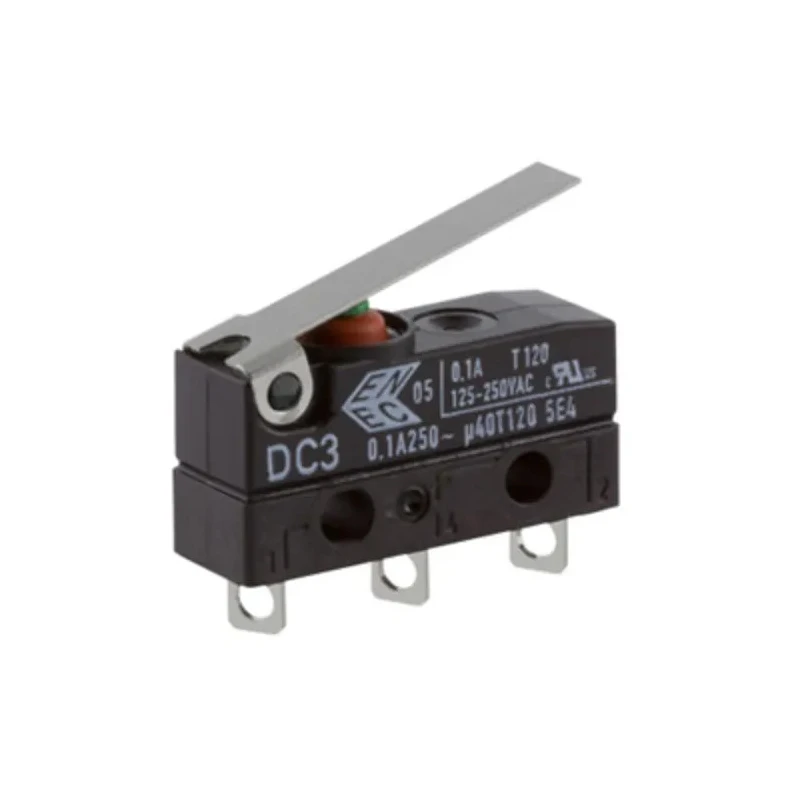

The ZF DC3C-A1LB Short Lever Micro Switch is a high-precision subminiature switch designed for industrial and electrical applications requiring reliable, repeatable switching performance. Featuring a short lever actuator and solder terminal, this micro switch supports a contact current of 100mA at 250 volts AC and a single-pole double-throw (SPDT) contact configuration.

Its durable housing is constructed from polyethylene terephthalate (PET) and polybutylene terephthalate (PBT), delivering excellent mechanical strength and chemical resistance. The operating force required to activate the switch is only 0.78 newtons, allowing for sensitive and responsive control in automation systems.

This switch is rated IP6K7, providing high resistance to dust and water ingress, ensuring reliable operation in harsh environments. It operates efficiently across a broad temperature range from -40°C to 120°C, suitable for diverse industrial and manufacturing conditions.

The DC3C-A1LB is engineered for durability, offering over 1 million mechanical life cycles. It complies with RoHS directives, confirming it is environmentally friendly and free from hazardous substances. The product is made in Germany, underscoring high manufacturing quality and reliability.

Short lever actuator for precision control. Solder lug terminal type for easy integration. Housing of PET and PBT materials for durability. Low operating force at 0.78N for smooth actuation. Wide temperature range: -40°C to 120°C.

High mechanical life above 1 million operations. IP6K7 rating for dust and water protection. RoHS compliant for environmental safety. German origin ensuring top manufacturing standards.

This micro switch is ideal for use in electrical controls, industrial automation, machinery, HVAC systems, and other applications where precise, durable switching is essential. Its robust construction and compliance with international standards make it a dependable choice for engineers and system integrators.
