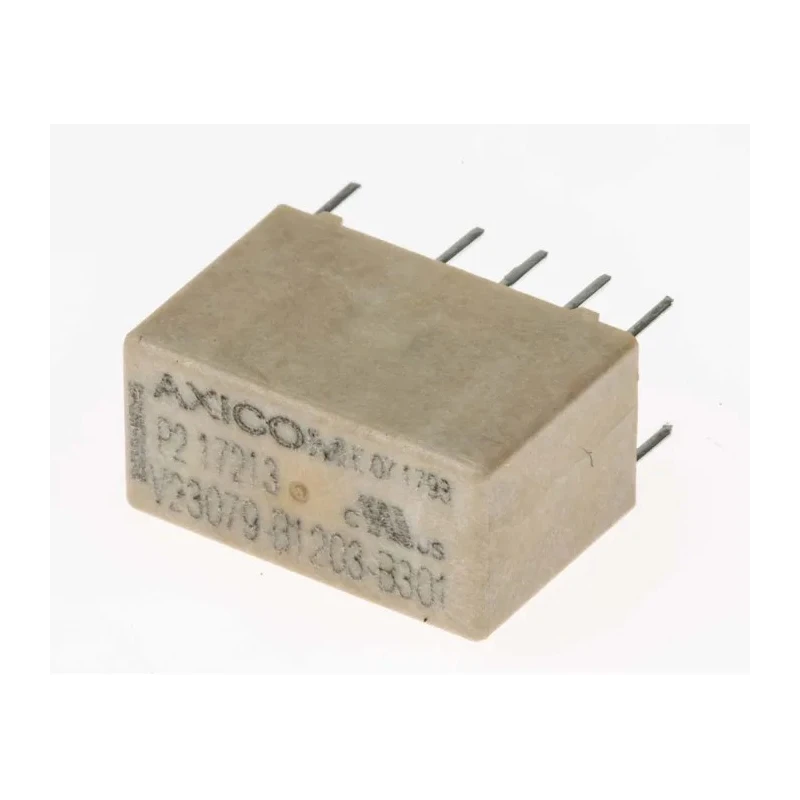

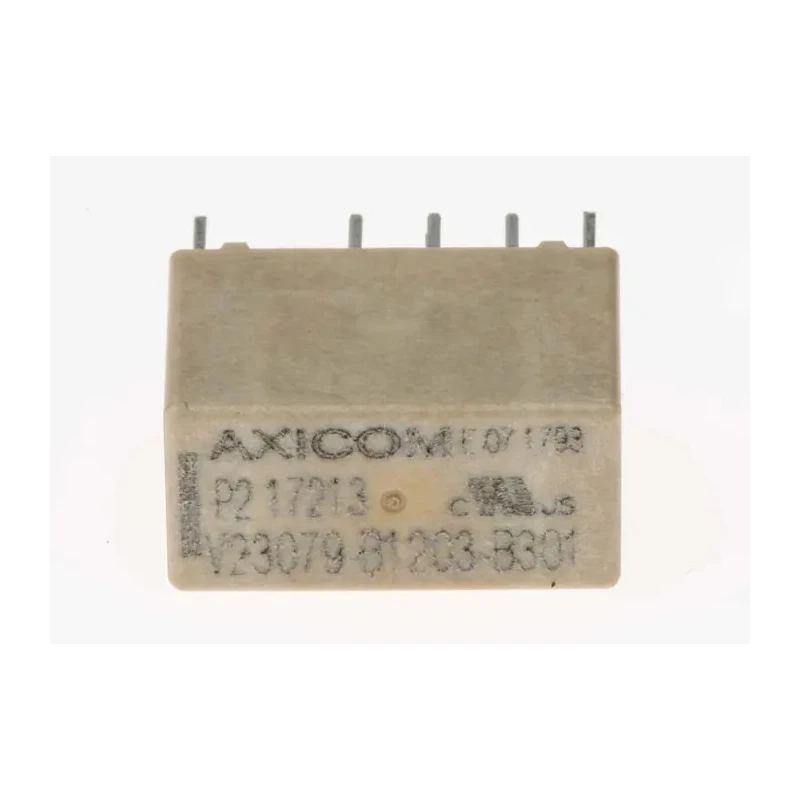

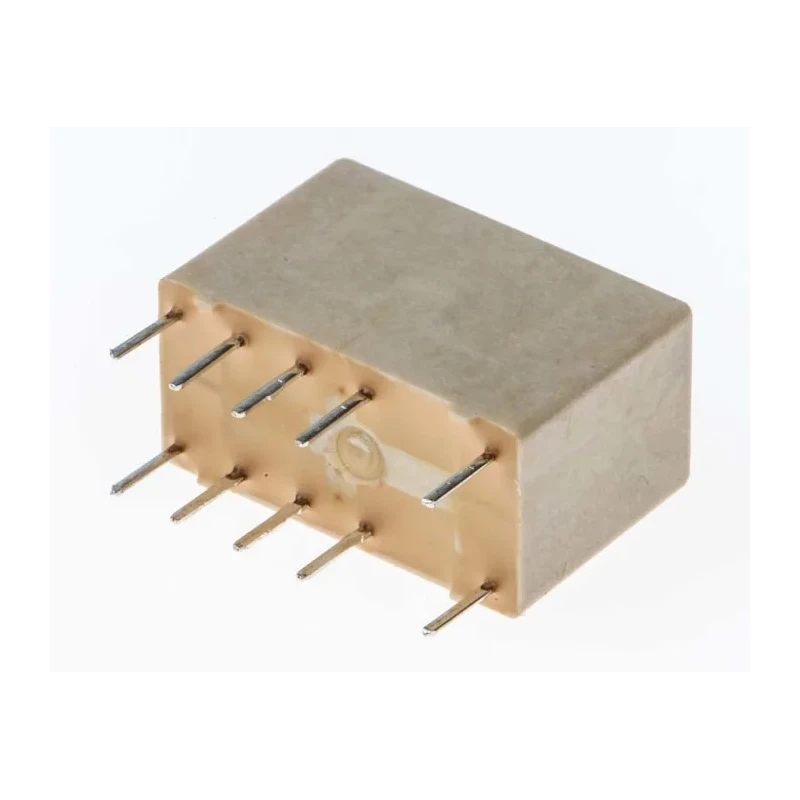

TE Connectivity PCB Signal Relay, 12V dc Coil, 2A Switching Current, DPDT Contact Configuration V23079-B1203-B301

TE Connectivity V23079-B1203-B301 PCB Signal Relay is a miniature, slimline DPDT relay designed for PCB mounting and low power consumption applications. It operates on a 12V dc coil voltage and can switch currents up to 2 amperes with a contact configuration of Double Pole Double Throw. This relay is ideal in situations where space savings and reliable switching are critical.

The relay features gold plated bifurcated contacts enhancing conductivity and mechanical reliability. It operates efficiently in extreme environments ranging from -40°C minimum to 85°C maximum operating temperatures. The coil has a resistance of 1029 ohms and power consumption of 140 milliwatts, enabling low energy usage in switching operations.

Its switching capability includes up to 250V AC and 220V DC, supporting a wide array of electronic control circuits in telecommunications, consumer electronics such as set top boxes and audio equipment, as well as office and medical devices. The relay's design meets RoHS environmental standards and includes insulation resistance greater than 10⁹ ohms at 500V DC, along with surge capability conforming to Telcordia TR-NWT-001089 and IEC 60950 standards.

This P2 V23079 series relay is immersion cleanable with IP67 rating and V-0 flammability classification, offering durability and safety in harsh industrial and commercial settings. It is perfectly suited for automotive and control equipment that demands high performance in a compact form factor.

Gold plated bifurcated contacts ensure reliable conductivity and switching performance. Coil power consumption is very low at 140mW, aiding energy efficiency. Compact dimensions of 14.5mm length, 7.2mm width, and 9.8mm height save PCB space.

Compliance with RoHS enhances environmental sustainability. Wide operating temperature range supports diverse industrial conditions. Suitable for communications, consumer electronics, office, medical, and automotive applications.

Immersion cleanable with robust insulation and surge capabilities. V-0 flammability classification provides enhanced safety standards.
