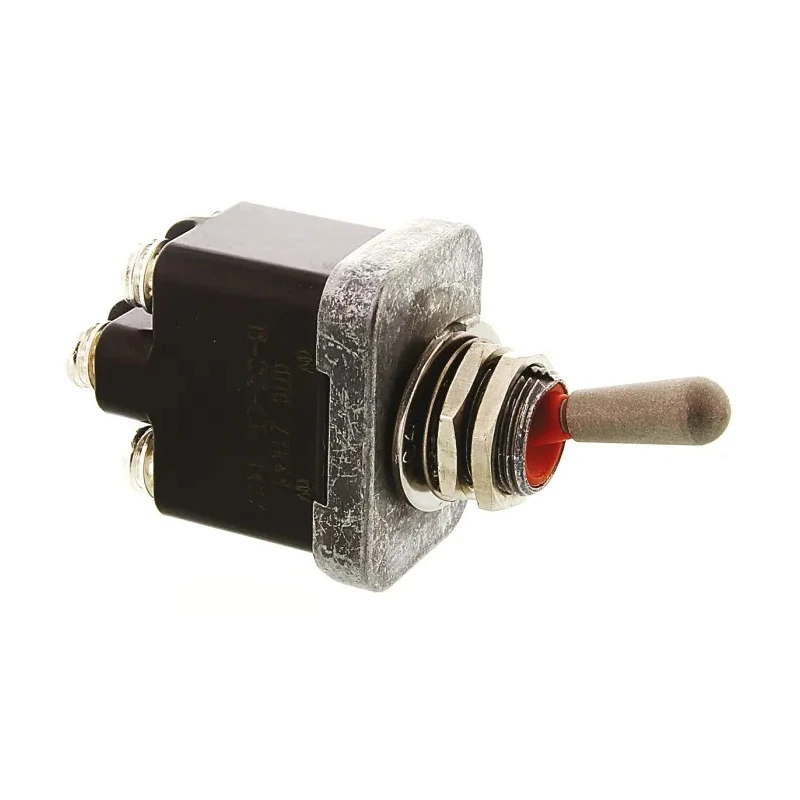

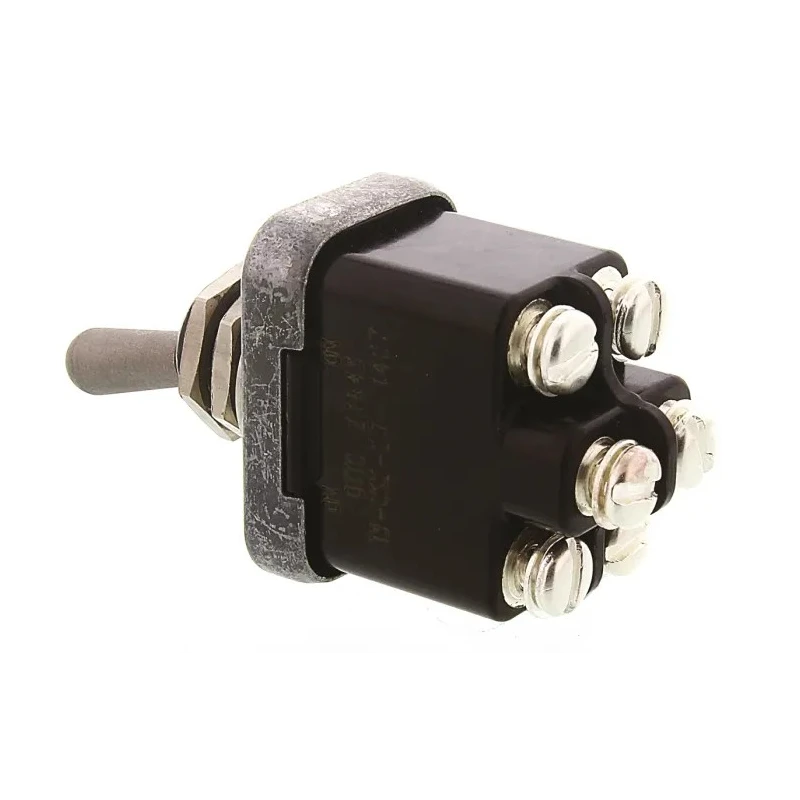

Otto Toggle Switch Panel Mount On-On DPDT Screw Terminal 28 V dc 115 V ac T9-CS2-23
Specifications
| Country of Origin | India |
|---|---|
| Brand | Otto |
| Model | T9-CS2-23 |
| IP Rating | IP68S |
| Mount Type | Panel |
| Series | T9 |
| Maximum Operating Temperature | 71°C |
| Contact Configuration | DPDT |
| Switch Configuration | 2P |
| Minimum Operating Temperature | -65°C |
| Terminal type | Screw |
| Standards/Approvals | CE, CSA, RoHS, UL |
| Switch Operation | On-On |
| Actuator Length | 17.53mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 20A |
| Mechanical Life | 40000Operations |
| Contact AC Voltage | 115V ac |
| Actuator Material | Stainless Steel |
Key Features
- Panel mount toggle switch designed for On-On DPDT operation.
- Features reliable screw terminal for secure connections.
- Makes and breaks current up to 20 A at 28 V dc and 15 A at 115 V ac.
- Constructed with stainless steel actuator for durability.
- Rated to operate in temperatures ranging from -65°C to 71°C.
- IP68S sealed design ensures resistance against dust and water ingress.
- Equipped with silver plated contacts for optimal conductivity.
- Mechanical life expectancy of 40,000 operations and electrical life of at least 20,000 cycles.
Product Description
Otto T9-CS2-23 toggle switch is a robust panel mount device engineered for reliable On-On DPDT switching operations, with a screw terminal connection optimized for industrial and automation applications. Rated for 28 V dc and 115 V ac, it supports a contact current of 20 A, making it suitable for robust electrical switching needs.
This toggle switch is equipped with a stainless steel actuator measuring 17.53 mm in length, providing a tactile and durable switching interface. Its IP68S sealing protects it from dust and water ingress, ensuring long service life even in harsh environments. The device is rated to operate reliably within a temperature range from -65°C to 71°C.
The switch features highly conductive silver plated contacts and large screw terminals for secure and efficient connectivity. Its mechanical life is rated to 40,000 operations while electrical life sustains at least 20,000 cycles, providing excellent durability for industrial, laboratory, HVAC, manufacturing, and commercial applications.
Fully compliant with CE, CSA, RoHS, and UL standards, the Otto T9 series ensures safety and regulatory adherence. The compact 2 pole (2P) configuration offers versatile installation and compatibility.
Panel mount, On-On DPDT operation for versatile use. Screw terminal type simplifies wiring and connection stability. Rated for 20A at 28V dc and 15A at 115V ac operation. IP68S sealing for dust and water resistance. Stainless steel actuator for enhanced durability.
Mechanical life of 40,000 cycles and electrical life of 20,000 minimum. Silver plated standard contacts ensure excellent electrical conductivity. Operates in temperatures from -65°C to 71°C. Meets CE, CSA, RoHS, and UL certifications.
Compact design with actuator length of 17.53 mm.
This Toggle Switch is ideal for electrical panels, industrial automation systems, and manufacturing equipment requiring durable and safe switching components. Its sealed design supports use in challenging environments while maintaining performance reliability.
Explore more high-quality switch solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch supports a maximum contact current of 20 A at 28 V dc and 15 A at 115 V ac.
This model operates reliably within a temperature range of -65°C to 71°C.
It features an IP68S sealing design, ensuring resistance against dust and water ingress.
The actuator is constructed from stainless steel, providing durability.
The actuator length is 17.53 mm.
It is compliant with CE, CSA, RoHS, and UL standards.
The switch utilizes a screw terminal type for secure connections.
The mechanical life expectancy is rated at 40,000 operations.
The electrical life is rated to sustain at least 20,000 cycles.
It features a DPDT (Double Pole Double Throw) contact configuration.
This toggle switch is ideal for industrial automation systems, electrical panels, and manufacturing equipment.
The switch operates in an On-On configuration.
