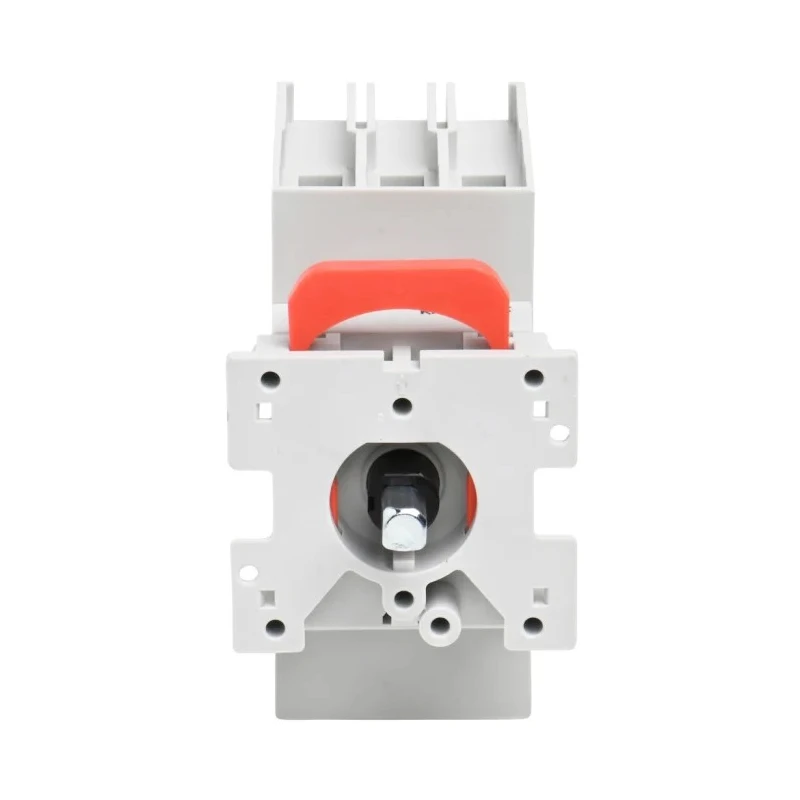

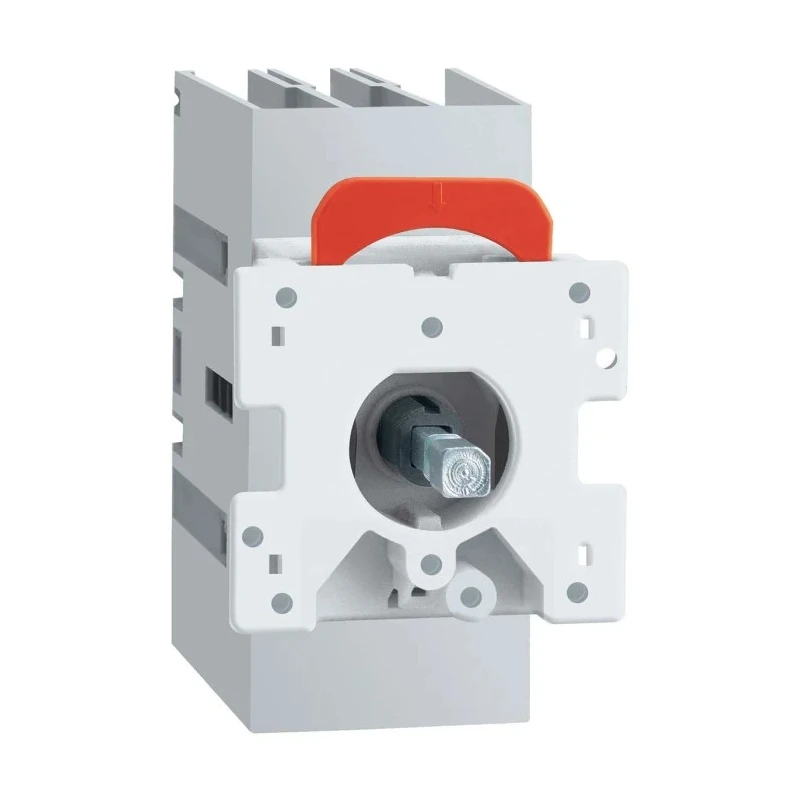

Schneider Electric 3-Pole Isolator Switch, IP20, 32A, 22 kW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 100mm |
| Model | IP20 |
| Depth | 3.07mm |
| IP Rating | IP20 |
| Width | 1.77mm |
| Series | TeSys VLS |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 32A |
| Terminal type | Power Circuit Screw Clamp Terminal |
| Electrical Phase | 3 |
| Handle Colour | Grey |
| Number of Poles | 3 |
| Switching AC Voltage | 690V ac |
| Switching Power | 22kW |
Key Features
- The switch features a grey handle for easy identification.
- Suitable for 3-phase electrical circuits with power circuit screw clamp terminals.
- Designed for operating temperatures from -25°C to 55°C.
- Padlock compatible to ensure safety during maintenance.
- Certified to CSA C22.2 No. 14, IEC 60947-3, and UL 508 standards.
- Compact dimensions of 100 mm length, 1.77 mm width, and 3.07 mm depth.
- Auxiliary contacts are available for additional control functionality.
- With a short circuit current rating up to 5 kA at 600 V using a 30A Type RK5 fuse.
Product Description
Schneider Electric VLS3P032D1 3-Pole Isolator Switch, IP20, 32A, 22 kW, is designed for integration into control systems for industrial applications such as material handling, HVAC, pumping systems, solar energy installations, and mining operations.
This switch is part of the TeSys VLS series, featuring 3 normally open poles with a door-mount configuration to simplify installation in electrical enclosures. The device supports a switching current of 32A and an AC voltage rating of up to 690 VAC, ensuring reliable disconnection capability.
The unit includes a grey-colored handle for visibility and is suitable for use in three-phase electrical circuits. It supports screw clamp terminals compatible with solid or stranded wires ranging from 18 AWG to 6 AWG, accommodating wire sizes up to 10 mm solid or 16 mm stranded.
This Isolator Switch meets rigorous safety and performance standards, including UL508 motor disconnect switch ratings, CSA certification, and IEC 60947-3 compliance. It provides horsepower ratings of 2 HP at 120 VAC and 5 HP at 240 VAC for single-phase motors, and up to 20 HP at voltages ranging from 480 V to 600 V for three-phase motors.
The device can sustain a short circuit current rating of 5 kA at 600 V with a maximum 30A Type RK5 fuse, ensuring high operational safety. Operating temperatures range from -25°C to 55°C, making it suitable for diverse industrial environments.
The switch is padlock compatible, enhancing safety by preventing unauthorized operation during maintenance. Auxiliary contacts enable additional control and monitoring functions. Its compact form factor with dimensions of 100 mm length, 1.77 mm width, and 3.07 mm depth facilitates installation in confined panels.
Designed to withstand a fire resistance temperature of 960°C (1760°F). Grey handle and screw clamp terminals assure ease of use and reliability. Schneider Electric's VLS3P032D1 is a robust component ideal for electrical isolation in industrial automation, construction, water treatment, and manufacturing sectors.
Explore EnvMart's extensive range of electrical switches and isolation devices to find compatible accessories and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this isolator switch is 32A.
This model has a switching AC voltage rating of up to 690V.
The dimensions of the switch are 100 mm in length, 1.77 mm in width, and 3.07 mm in depth.
The operating temperature range for this unit is from -25°C to 55°C.
This isolator switch is certified to CSA C22.2 No. 14, IEC 60947-3, and UL 508 standards.
Yes, this switch is padlock compatible, enhancing safety during maintenance by preventing unauthorized operation.
It uses power circuit screw clamp terminals, compatible with solid or stranded wires ranging from 18 AWG to 6 AWG.
The horsepower ratings for single-phase motors are 2 HP at 120 VAC and 5 HP at 240 VAC.
The short circuit current rating is up to 5 kA at 600 V when using a 30A Type RK5 fuse.
This isolator switch belongs to the TeSys VLS series.
It is designed for integration into control systems for industrial applications such as material handling, HVAC, pumping systems, solar energy installations, and mining operations.
The handle of this isolator switch is grey, which aids in easy identification.
