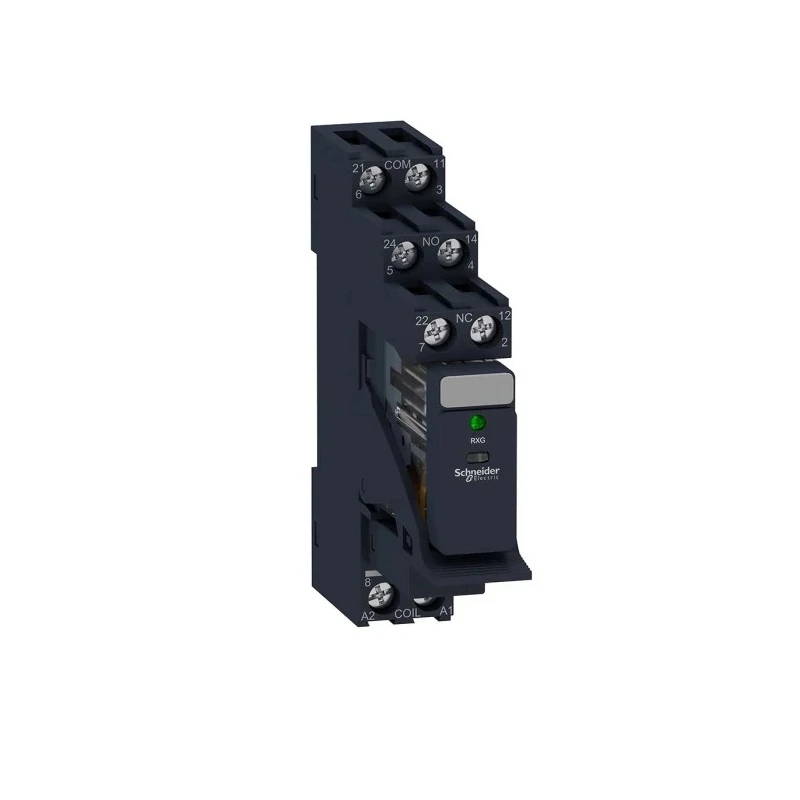

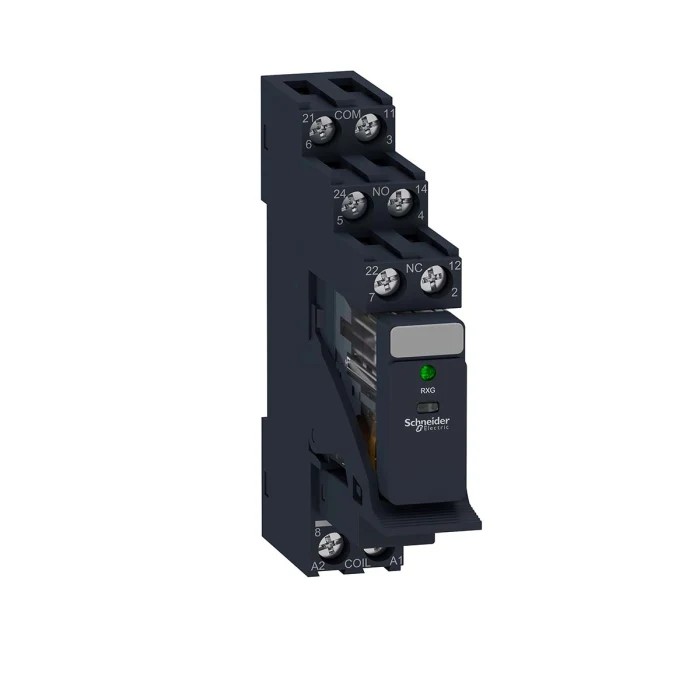

Schneider Electric Harmony Relay RXG Series Electromechanical Interface Relay, DPDT Contact, 24V dc Coil, DIN Rail RXG23BDPV
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 79.6mm |
| Length | 72mm |
| Model | RXG23BDPV |
| Width | 15.6mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Connector |
| Coil Resistance | 100Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Coil resistance is rated at 100 ohms to ensure efficient operation.
- Designed for switching currents up to 5 amperes.
- Capable of switching DC voltages up to 30V and AC voltages up to 250V.
- Operating temperature range extends from -40°C to 70°C for versatile industrial environments.
- Compact dimensions of 72mm length, 79.6mm height, and 15.6mm width facilitate space-saving installations.
- Utilizes silver alloy contacts for high conductivity and durability.
- DIN rail mount type enables easy integration into control panels and automation systems.
- Certified to standards UL 508, IEC 61984, IEC 61810-1, and CSA C22.2 No 14 for reliable industrial use.
Product Description
Schneider Electric RXG23BDPV Harmony Relay series presents a robust Electromechanical Interface Relay designed for industrial and automation control applications. Equipped with a double-pole double-throw (DPDT) contact configuration and a 24V dc coil, this relay is engineered to provide reliable switching performance with a coil resistance of 100 ohms.
Its DIN rail mount design ensures convenient installation and integration within electrical panels, suitable for HVAC, manufacturing, water treatment, and various industrial control systems. The relay supports a switching current of up to 5 amperes, handling DC voltages up to 30V and AC voltages of 250V, making it versatile for a wide range of electrical circuits.
Operating reliably in temperatures from -40°C to 70°C, the RXG23BDPV's silver alloy contacts deliver durable conductivity and long service life. Its compact form factor with dimensions of 72mm length, 79.6mm height, and 15.6mm width supports efficient space utilization.
The product complies with recognized international standards including UL 508, IEC 61984, IEC 61810-1, and CSA C22.2 No 14, ensuring safety and quality in demanding industrial environments.
Coil resistance of 100Ω provides stable electrical characteristics. DPDT contact layout suitable for complex switching requirements. Switching capabilities up to 5A current support high-load control systems. Wide operating temperature range for harsh environment performance.
DIN rail mounting promotes easy implementation and maintenance. Silver alloy contacts reduce oxidation and ensure electrical conductivity. Certified safety standards enhance system reliability and compliance.
This Schneider Electric RXG23BDPV interface relay is ideal for control panel assemblies, industrial machinery automation, and electrical switching applications, contributing to dependable process control and signal conditioning.
Explore the full range of Schneider Electric relays and interface components at EnvMart for enhanced industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXG23BDPV relay operates with a coil voltage of 24V DC.
It is capable of switching currents up to 5 amperes.
This model has dimensions of 72mm in length, 79.6mm in height, and 15.6mm in width.
The relay features a double-pole double-throw (DPDT) contact configuration.
It can switch DC voltages up to 30V and AC voltages up to 250V.
The contacts are made from silver alloy, which ensures high conductivity and durability.
The operating temperature range extends from -40°C to 70°C.
It utilizes a DIN rail mount type for easy integration into control panels.
The coil resistance is rated at 100 ohms.
It is certified to UL 508, IEC 61984, IEC 61810-1, and CSA C22.2 No 14 standards.
It is suitable for applications in HVAC, manufacturing, water treatment, and various industrial control systems.
The terminal type for this relay is a connector.
