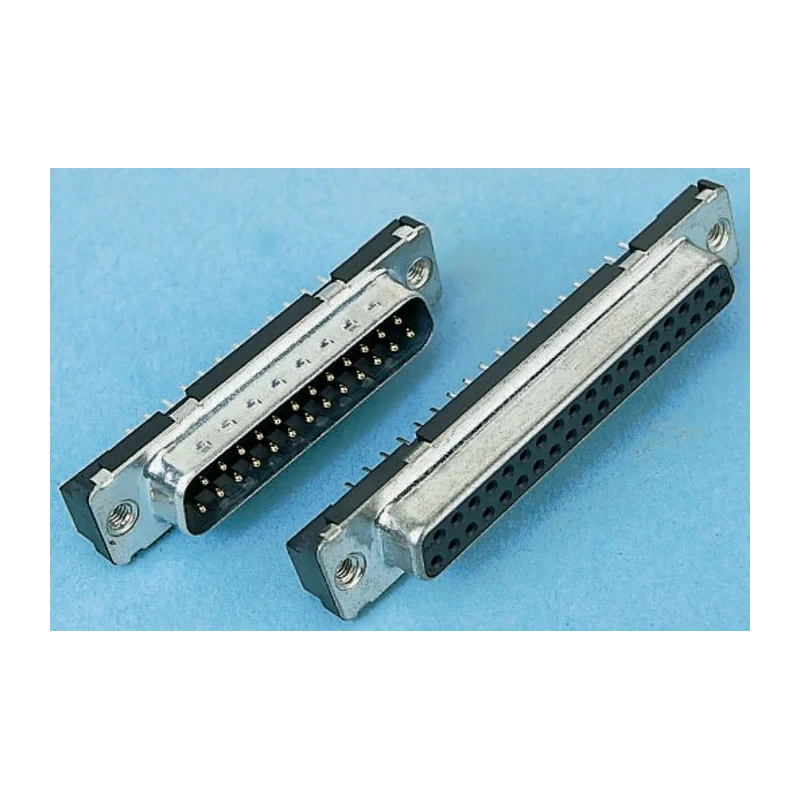

Amphenol Communications Solutions Delta D 25 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector with M3 D25P24A4PL00LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 5A |
| Model | D25P24A4PL00LF |
| Mount Type | Through Hole |
| Series | Delta D |
| Mounting Hardware | M3 Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
| D-Sub Shell Size | B |
Key Features
- This D-Sub connector features 25 contacts for reliable electronic connections.
- It supports a current rating of 5A and voltage rating of 300V suitable for diverse applications.
- The connector shell size B and gold over nickel contact plating enhance durability and conductivity.
- Operating temperature range is from -55°C to 125°C, ensuring performance in harsh environments.
- Termination type is solder with male connector and contact genders.
- The M3 threaded inserts provide secure mounting in through hole PCB applications.
- No specific industry standards or approvals are indicated for this product.
Product Description
Amphenol Communications Solutions D25P24A4PL00LF is a Delta D series D-Sub Connector designed with 25 contacts and a straight orientation. Featuring a precise 2.76 mm pitch between contacts, this connector is engineered for reliable and secure electrical connections in industrial and electronic applications.
The connector has a current rating of 5A and voltage rating of 300V, making it suitable for moderate power electronic circuits. Its gold over nickel contact plating ensures excellent conductivity and resistance to corrosion, which is vital for maintaining signal integrity over extended use.
Built with a D-Sub shell size B and equipped with M3 threaded inserts, this through hole connector ensures robust mechanical stability on printed circuit boards. The connector's termination type is solder, with male connector and contact genders, designed for easy and reliable assembly.
Operating temperature spans from -55°C to 125°C, supporting a wide range of industrial, manufacturing, electronic, and communication systems environments where thermal endurance is required. While it does not list specific certifications, its build quality follows the Delta D series standards.
This D-Sub connector has 25 contacts providing numerous connection points. Supports a current rating of 5A and voltage rating of 300V. Gold over nickel plating enhances electrical performance and longevity. Strait, through hole mount type with M3 threaded hardware ensures stability.
Wide operating temperature range from -55°C to 125°C meets demanding conditions. Solder termination facilitates secure electrical joins. Male connector and contact gender for intended mating compatibility.
This product is commonly employed in electronics manufacturing, industrial control panels, communication equipment, and other applications requiring reliable D-Sub Connectors with secure mounting. Explore more quality connectors and components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector has a current rating of 5A and a voltage rating of 300V, making it suitable for moderate power electronic circuits.
The operating temperature range for this connector spans from -55°C to 125°C, allowing it to perform in harsh environments.
This model features 25 contacts, providing numerous connection points for reliable electronic connections.
The termination type for this connector is solder, designed for secure electrical joins.
The contact pitch size is 2.76 mm, which is designed for compatibility with various applications.
This connector supports through hole mounting, ensuring robust mechanical stability on printed circuit boards.
The contacts are plated with gold over nickel, which enhances electrical performance and resistance to corrosion.
This connector has a D-Sub shell size B, which is standard for many applications.
The connector is equipped with M3 threaded inserts for secure mounting in through hole PCB applications.
The connector features male contacts, ensuring compatibility with corresponding female connectors.
This model is commonly employed in electronics manufacturing, industrial control panels, and communication equipment.
This connector belongs to the Delta D series, designed for reliable and secure electrical connections.
