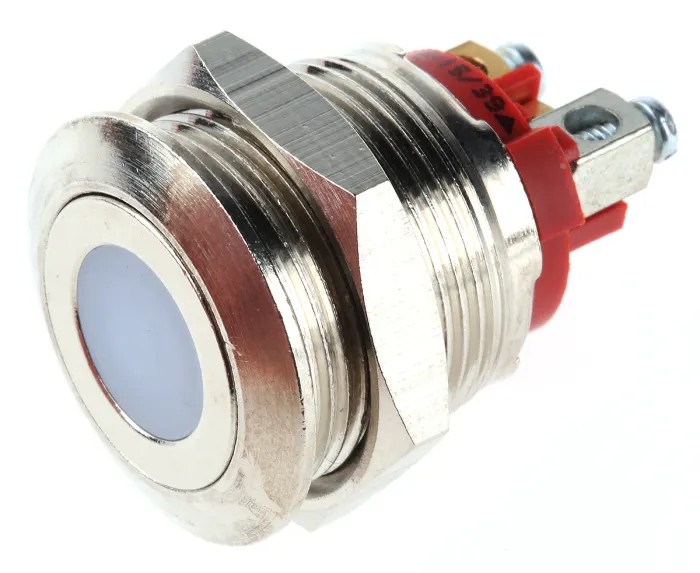

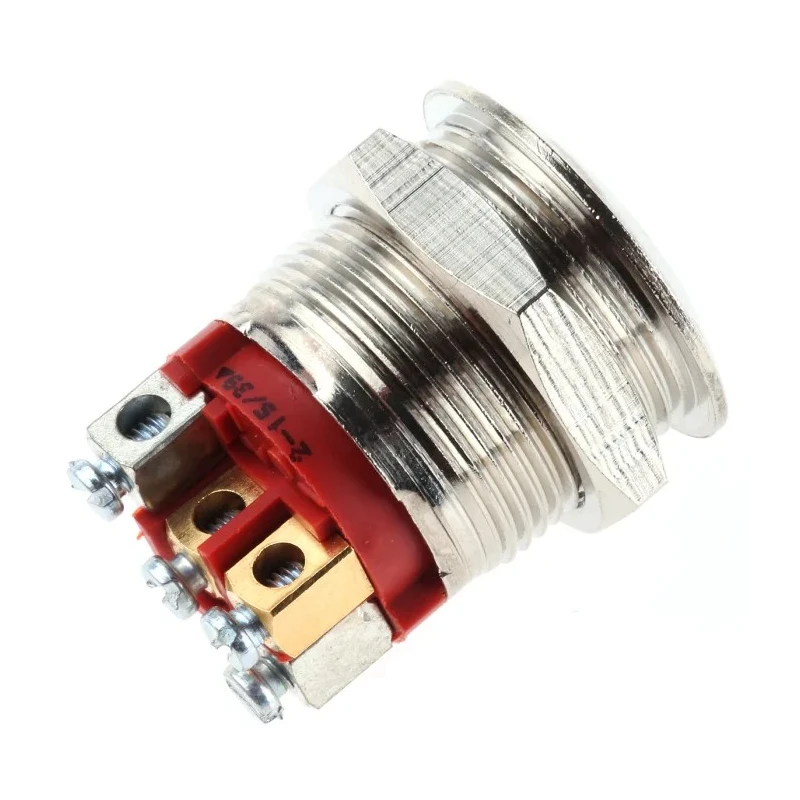

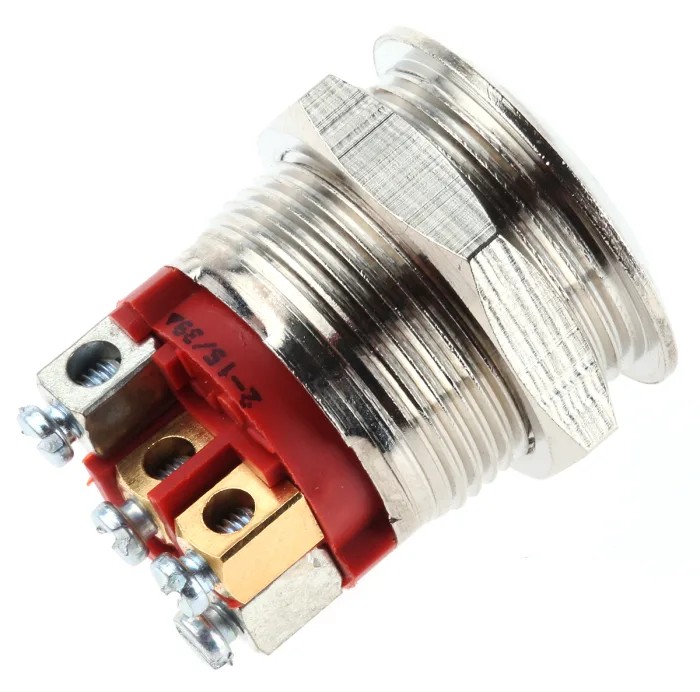

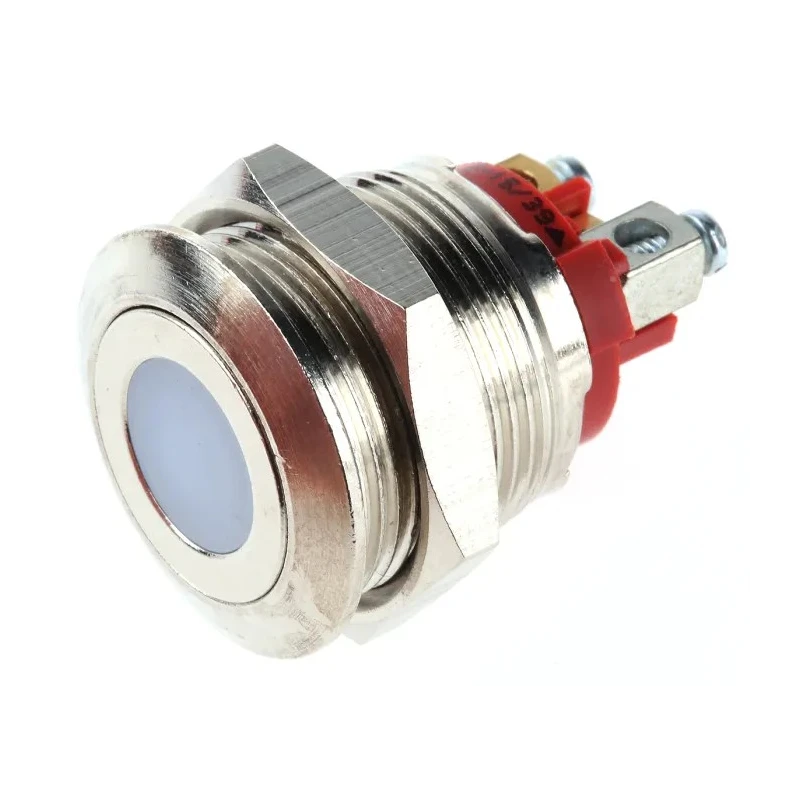

APEM AV Series Illuminated Push Button Switch, Momentary, 19.2 mm Cutout, SPST, Red LED, IP65, 48V DC 250V AC AV09C7L3D9006
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | AV09C7L3D9006 |
| IP Rating | IP65 |
| Panel Thickness | 1 to 6mm maxi |
| Service Life | 1 million operations |
| Series | AV |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 48V dc |
| Actuator Style | Flat |
| Switch Contact Current | 50mA |
| Contact AC Voltage | 250V ac |
Key Features
- Illuminated anti-vandal push button switch with tactile feedback for secure operations.
- Momentary electrical function with SPST contact configuration.
- Red LED illumination for easy visual status indication.
- Designed for 19.2 mm panel cutout and supports flat actuator style.
- Operates at 48V DC and 250V AC for versatile industrial usage.
- IP65 ingress protection ensures reliable performance in harsh environments.
- Stainless steel or nickel plated brass construction for robust durability.
- Service life rated for up to 1 million operations.
Product Description
APEM AV09C7L3D9006 is an advanced illuminated push button switch designed for applications requiring robust performance and clear, tactile feedback. Featuring a momentary operation and SPST contact configuration, this switch is ideal for electrical panels, control units, or industrial automation systems where reliability and precise actuation are essential.
This switch accommodates a 19.2 mm panel cutout and utilizes a flat button actuator, delivering streamlined ergonomics. Its illuminated red LED indicator ensures operators can quickly verify circuit status at a glance. The anti-vandal design, manufactured from stainless steel or nickel plated brass, safeguards against accidental damage and guarantees long-term durability, even in high-traffic or demanding environments.
Electrical capabilities support both 48V DC and 250V AC operation, providing flexibility for integration with diverse control and signaling circuits. The IP65 rating certifies resistance to dust and water ingress, allowing deployment in environments subject to moisture, debris, or outdoor exposure.
Installation is simplified through robust screw terminals, reducing maintenance time and maximizing uptime. The product is rated for a service life of up to 1 million actuations, underscoring its suitability for critical, high-cycle use cases.
Illuminated anti-vandal push button switch with tactile feedback for secure operations. Momentary electrical function with SPST contact configuration. Red LED illumination for easy visual status indication. Designed for 19.2 mm panel cutout and supports flat actuator style.
Operates at 48V DC and 250V AC for versatile industrial usage. IP65 ingress protection ensures reliable performance in harsh environments. Stainless steel or nickel plated brass construction for robust durability. Service life rated for up to 1 million operations.
Screw terminal type for straightforward installation and maintenance. Operating temperature range from -30°C to 70°C.
This switch is widely deployed in industrial, automation, HVAC, transportation, electronics, and panel-building settings where reliability and robust actuation are required. Browse more APEM Push Button Switches and accessories in the EnvMart catalogue for complete solutions to industrial control and signaling needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 70°C.
This switch has an IP65 rating, which ensures resistance to dust and water ingress.
It is rated for a service life of up to 1 million operations.
The switch features a momentary operation with an SPST contact configuration.
This model requires a panel cutout size of 19.2 mm.
It operates at 48V DC and 250V AC.
The APEM AV09C7L3D9006 uses screw terminals for connections.
The minimum operating temperature is -30°C.
It features a flat actuator style.
The switch is constructed from stainless steel or nickel plated brass.
This model complies with RoHS standards.
It is suitable for industrial, automation, HVAC, transportation, electronics, and panel-building applications.
